Fortinet AP1010I
Single Radio 802.11a/b/g/n Access Point with Integrated Antennas

Fortinet AP1010I

Fortinet AP1010 Series

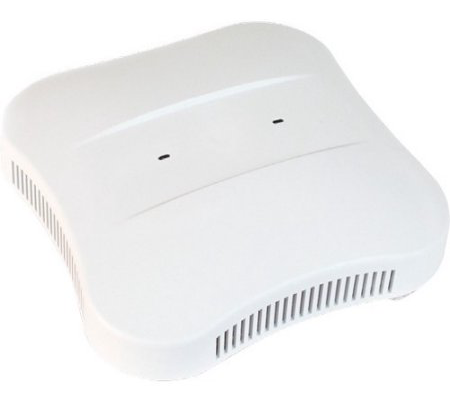

AP1010I Access Point
Fortinet AP1010I Single Radio 802.11a/b/g/n Access Point with Integrated Antennas Providing 180 Degrees Coverage
AP can be mounted horizontally and vertically. Other optional mounting brackets and screws also available.
#AP1010I
List Price: $395.00
Our Price: $309.00

Click here to jump to more pricing!

Overview:

The AP1010 and AP1020 are 802.11a/b/g/n enterprise wireless access points with a 2x2:2 MIMO design. The AP1010 features a single radio and operates on either the 2.4 GHz or 5 GHz band to deliver a maximum data rate of 300 Mbps. The AP1020 features dual radios and operates on the 2.4 GHz and 5 GHz bands to deliver a maximum data rate of 300 Mbps per radio. Both access points offer a choice between internal and external antenna models.

The AP1010 and AP1020 simultaneously support data, voice, and video applications with superior reliability and predictability in moderate-density environments. They are designed for a broad range of general purpose uses, including classrooms, dormitories, and branch offices.

Radio frequency virtualization delivers plug-and-play deployment, easy capacity expansion, and seamless mobility. Multiple operating modes give you the flexibility to design a wireless network suited to your specific needs. The access points support centralized, distributed and mesh modes.

As key elements of Fortinet’s Virtualized Wireless LAN solution, the AP1010 and AP1020 WiFi access points deliver a superior end-user experience. As with other Fortinet access points, they integrate seamlessly with the System Director wireless operating system and the Fortinet network management suite to bring intelligent management and resilient wireless services to your network.

Highlights

  • Supports resource-intensive applications in moderate-density environments
  • Simplifies deployment and delivers seamless mobility
  • Lets you select from a range of options to suit your needs
  • Offers flexible deployment options for diverse uses
  • Delivers wireless connectivity with superior reliability and predictability

Fortinet AP Series - Controller-Managed Access Points

Fortinet AP series Access Points (APs) provide a high-performance, premise-managed WiFi network with a broad range of 802.11ac Wave 1 and Wave 2 APs that ease deployment and scaling and offer a number of compelling quality-of-experience advantages. They also provide a complete portfolio of security services that offer additional means of protection to combat the ever-evolving threat landscape. Fortinet also offers an RF technology that uniquely manages the spectrum utilization, allowing it to dramatically simplify deployment vs competing solutions.

  • Application Control
    Provides administrators with Application Visibility to prioritize applications to improve the user experience by guaranteeing more capacity to select groups, such as mission-critical applications or mobile point-of-sale (mPoS) devices.
  • Air Traffic Control
    Provides sophisticated air traffic control mechanisms to govern station airtime so every client gets a fair turn on-air, which prevents the slowest, or the fastest, devices from hogging resources.
  • Single Channel Technology
    Unique technology that manages spectrum utilization to overcome the interference-related deployment barriers commonly encountered in high density environments.

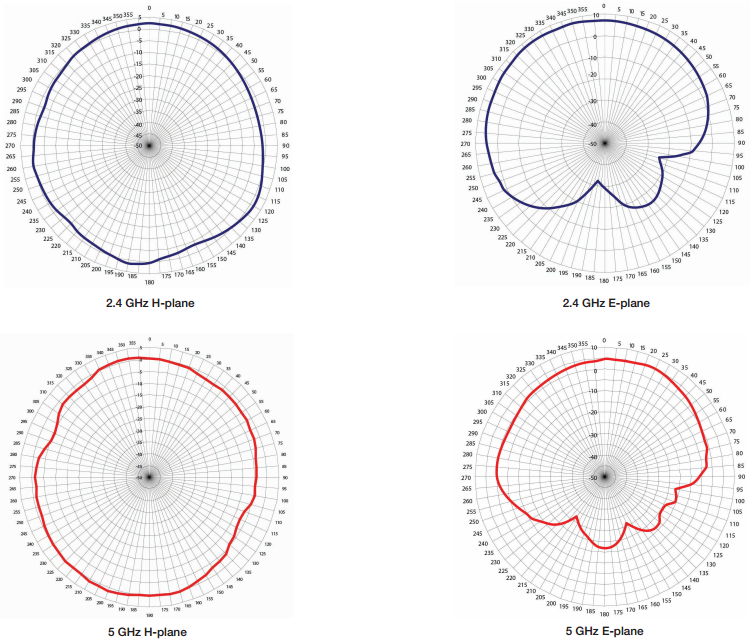

Antenna Radiation Patterns:

AP1010i and AP1020i

AP1010i and AP1020i Antenna Radiation Patterns

Transmit Power and Receive Sensitivity Table:


AP1010I and AP1020I Internal Antenna Model
Configuration Maximum Transmit Power (EIRP) Receive Sensitivity at Lowest Data Rate
IEEE 802.11b 23 dBm -83 dBm
IEEE 802.11g 20 dBm -83 dBm
IEEE 802.11a 19 dBm -86 dBm
2.4 GHz IEEE 802.11n (HT20) 19 dBm -83 dBm
2.4 GHz IEEE 802.11n (HT40) 19 dBm -83 dBm
5 GHz IEEE 802.11n (HT20) 17 dBm -86 dBm
5 GHz IEEE 802.11n (HT40) 16 dBm -83 dBm

AP1010E and AP1020E External Antenna Model
Configuration Maximum Transmit Power (EIRP) Receive Sensitivity at Lowest Data Rate
IEEE 802.11b 22 dBm -82 dBm
IEEE 802.11g 19 dBm -82 dBm
IEEE 802.11a 17 dBm -84 dBm
2.4 GHz IEEE 802.11n (HT20) 18 dBm -82 dBm
2.4 GHz IEEE 802.11n (HT40) 18 dBm -82 dBm
5 GHz IEEE 802.11n (HT20) 15 dBm -84 dBm
5 GHz IEEE 802.11n (HT40) 14 dBm -81 dBm

Specifications:


AP1010I AP1010E AP1020I AP1020E
QOS
  • WMM support
  • Dynamic WMM rate adaptation
  • Configurable QoS rules per user and application
Operating Modes
  • Centralized deployment mode
  • Distributed deployment mode
  • Remote VPN tunnel mode
  • Mesh mode
Security
  • WEP, WPA-PSK, WPA-TKIP, WPA2-AES, 802.11i, 802.1X (EAP-TLS, EAP-TTLS, PEAP, LEAP, EAP-FAST, EAP-SIM, EAP-AKA, and EAP-MD5)
  • 802.1X and captive portal authentication against local database on the controller, RADIUS, and Active Directory
  • RADIUS-assisted per-user and per-ESSID access control via MAC filtering
Management
  • Centrally managed by any Fortinet controller running System Director
  • Automatically discovers controllers and downloads configuration settings for plug-and-play deployment
  • Upgrades and management using System Director/Network Manager
  • Support for SNMP
Wireless Specifications
Radio Technologies Single-radio, selectable dual-band 802.11n indoor access point; 2x2 MIMO with two spatial streams; supports both 20 MHz and 40 MHz channel widths Dual-radio, concurrent dual-band 802.11n indoor access point; 2x2 MIMO with two spatial streams; supports both 20 MHz and 40 MHz channel widths
Supported Radio Technologies 802.11b: Direct-sequence spread-spectrum (DSSS)
802.11a/g/n: Orthogonal frequency division multiplexing (OFDM)
802.11n: 2x2 MIMO with two spatial streams
Modulation Supported modulation types:
802.11b: BPSK, QPSK, CCK
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
Supported Frequency Bands 2.400–2.485 GHz
5.150–5.250 GHz
5.250–5.350 GHz
5.470–5.725 GHz
5.725–5.875 GHz
Country-specific restrictions apply; adjusted by controller upon approval
Platform supports Dynamic Frequency Selection (DFS)
Supported Data Rate (Mbps) 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
802.11b: 1, 2, 5.5, 11
802.11n: 6.5–300 (MCS0 to MCS15)
Configurable Transmission Power Transmission power configurable in 1.0 dBm increments
Physical Specifications AP1010I AP1010E AP1020I AP1020E
Antenna Two integrated dual-band omnidirectional antennas with typical gain of 4.0 dBi for 2.4 GHz and 5.0 dBi for 5 GHz Two extended reverse polarity SMA connectors. Ships with two omnidirectional rubber duck antennas with typical gain of 2.0 dBi for 2.4 GHz and 3.0 dBi for 5 GHz. Other external antenna options are available. Four integrated dual-band omnidirectional antennas with typical gain of 4.0 dBi for 2.4 GHz and 5.0 dBi for 5 GHz Four extended reverse polarity SMA connectors. Ships with four omnidirectional rubber duck antennas with typical gain of 2.0 dBi for 2.4 GHz and 3.0 dBi for 5 GHz. Other external antenna options are available.
Power 802.3af PoE and 802.3at PoE
5V external power adapter (sold separately
802.3af PoE and 802.3at PoE
5V external power adapter (sold separately
Interfaces
  • One 10/100/1000 BASE-T Ethernet (RJ45), auto-sensing link speed and MDI/MDX, with 802.3af PoE
  • One RJ45 console
  • One USB 2.0 port (Type-A connector)
  • One built-in Kensington security slot (included in AP1010e and AP1020e)
  • AP1010e: Two reverse polarity SMA connectors
  • One 10/100/1000 BASE-T Ethernet (RJ45), auto-sensing link speed and MDI/MDX, with 802.3af PoE
  • One RJ45 console
  • One USB 2.0 port (Type-A connector)
  • One built-in Kensington security slot (included in AP1010e and AP1020e)
  • AP1020e: Four reverse polarity SMA connectors
Indicators Two status LEDs (on front cover) for power, Ethernet activity, and wireless activity Two status LEDs (on front cover) for power, Ethernet activity, and wireless activity
Mounting
  • Wall or ceiling mount
  • Access point includes:
    • Mount over 15/16” T-bar (no tools required)
    • Lockable wall-mount kit (included in AP1010e and AP1020e)
    • Lock key to lock the access point to a ceiling (for AP1010i and AP1020i)
  • Other mounting kits sold separately:
    • MNT-SCRMKIT-03, mounting adapter for recessed ceiling or narrow T-bars (5-pc package)
    • MNT-SCRMKIT-04, mounting adapter for Interlude/Silhouette T-bars (5-pc package)
    • MNT-WMKIT-01, optional lockable wall-mount kit for AP1010i and AP1020i (5-pc package)
Dimensions 6.75 x 6.50 x 2.50 inches
(17.10 x 17.10 x 5.70 cm)
6.33 x 4.50 x 1.50 inches
(16.10 x 11.40 x 3.80 cm)
6.75 x 6.50 x 2.50 inchces
(17.10 x 17.10 x 5.70 cm)
6.50 x 4.50 x 1.50 inches
(16.10 x 11.40 x 3.80 cm)
Weight 0.95 lbs (0.44 kg) 1.08 lbs (0.49 kg) 1.01 lbs (0.46 kg) 1.12 lbs (0.51 kg)
Environmental Operating temperature: 32–122°F (0–50°C)
Operating humidity: 5–95% non-condensing
Storage temperature: -40–185°F (-40–70°C) ambient
Storage humidity: 5–95% non-condensing
Regulatory Approval and Certifications
Regulatory Approval FCC
EU R&TTE Directive 1995/5/EC
RS-210
ICES-003
VCCI
ARIB-STD33 & STD66
For more country-specific regulatory approval, please contact your Fortinet representative.
Certifications WiFi certified 802.11a/b/g/n
RoHS Compliant
WEEE Compliant
REACH Compliant
UL2043 Compliant (AP1010e and AP1020e only)
Warranty Limited lifetime warranty

Documentation:

Download the Fortinet AP Series Datasheet (PDF).

Pricing Notes:

Fortinet AP1010 Series
AP1010I Access Point
Fortinet AP1010I Single Radio 802.11a/b/g/n Access Point with Integrated Antennas Providing 180 Degrees Coverage
AP can be mounted horizontally and vertically. Other optional mounting brackets and screws also available.
#AP1010I
List Price: $395.00
Our Price: $309.00
8x5 FortiCare Contract
3 Year 8x5 FortiCare Contract for AP1010I
#FC-10-P1K1I-311-02-36
Our Price: $73.00
5 Year 8x5 FortiCare Contract for AP1010I
#FC-10-P1K1I-311-02-60
Our Price: $121.00
24x7 FortiCare Contract
3 Year 24x7 FortiCare Contract for AP1010I
#FC-10-P1K1I-247-02-36
Our Price: $135.00
5 Year 24x7 FortiCare Contract for AP1010I
#FC-10-P1K1I-247-02-60
Our Price: $225.00
