Fortinet FortiAP-224D
Thin Wireless LAN Access Points

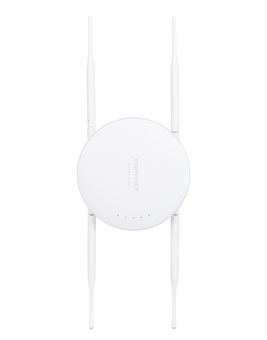

Fortinet FortiAP-224D

Fortinet FortiAP-224D Series
FortiAP-224D
Includes 1 x GE RJ45 port, dual radio ( 802.11 b/g/n and 802.11 a/n, 2x2 MIMO), IP66 rated, external antennas, pole/wall mount kit included, 802.3af PoE injector with AC power adapter included
Fortinet FortiAP-224D Outdoor AP
#FAP-224D-A
List Price: $495.00
Our Price: $387.00

Click here to jump to more pricing!

Overview:

FortiAP are thin access points, delivering secure, identity-driven WiFi access for your enterprise network, managed centrally by the integrated WLAN controller of any FortiGate® security appliance. With the integration of the wireless controller functionality into the market leading FortiGate appliance, Fortinet delivers a true Unified Access Layer. This enables you to easily manage wired and wireless security from a Single Pane of Glass management console and protects your network from the latest security threats.

Outdoor Enterprise WLAN Deployment

FortiAP outdoor WLAN access points are ruggedized products designed for installation in harsh physical environments. Outdoor FortiAPs can provide outdoor access to clients when deployed in AP mode, or they can be used as a wireless mesh client to enabling bridging or point-to-multipoint coverage for large outdoor areas. Some models are equipped with external antenna connectors to support the use of directional or panel antennas and dual-port models feature PoE pass-through to power IP CCTV cameras.

Highlights

  • Supports latest 802.11ac technology with association rate
  • Leverage existing FortiGate or FortiWiFi platforms as controllers for low TCO.
  • Integration with FortiManager and FortiAnalyzer for centralized management and reporting.
  • Fast Roaming for uninterrupted data access.
  • Automatic Radio Resource Provisioning (ARRP) for optimized throughput.
  • Layer 7 application control prioritizes business traffic.
  • Rogue AP detection and mitigation to satisfy PCI DSS compliance.
Key Features & Benefits
Advanced Security Protection Wireless LAN security done right, from the leader in network security. Integrated Firewall, IPS, Application Control, and Web Filtering protect the wireless LAN from the latest security threats.
Integrated WIDS and Rogue AP Suppression Protects the network from advanced wireless threats and satisfies PCI DSS compliance.
Deep Application Control Fortinet goes above Wireless Multimedia Extensions (WME) by offering deep Layer 7 inspection to precisely control applications and bandwidth usage.
"Single Pane of Glass" Management Console Unified management console simplifies operations, ensuring consistent and effective policy enforcement and compliance.

Hardware:

FortiAP Hardware

FortiAP 112D

The FortiAP 112B is an entry-level 802.11n outdoor AP, designed for outdoor deployments with a low client density. The AP is powered by PoE, but also features a spare Ethernet port supporting PoE-PS, which can be used to both bridge and power an outdoor IP CCTV camera, such as Fortinet's FortiCam. Just like all FortiAP products, this versatile AP can be configured to operate in AP mode, Mesh mode, Bridge Mode, or as a remote AP if required.

FortiAP 222C

The FortiAP 222C is a high-performance dual-band 2x2 MIMO 802.11ac technology AP, supporting 80 MHz channel width, to achieve a 280% throughput improvement over an 802.11n equivalent. Designed in a ruggedized IP67-rated enclosure and capable of withstanding extended temperature ranges, this AP is suitable for deployment in the most harsh conditions, like oil rigs, utility substations and outdoor stadiums. The N-type antenna connectors also make this AP suitable for use with high-quality external antennas for long-distance and mission-critical bridging or mesh deployments.

FortiAP 224D

The FortiAP 224D is an 802.11n outdoor AP designed for medium density outdoor applications, like municipal WiFi or outdoor school environments. The IP66-rated enclosure protects the AP from the normal weather conditions you would expect outdoors and the RP-SMA antenna connections support the connection of external directional or panel antennas for extended coverage in challenging locations.

Deployment:

Outdoor Mesh and PoE Pass-Though Deployment
Outdoor Mesh and PoE Pass-Though Deployment

Outdoor Point-to-Point Bridging or Multipoint Mesh Deployment
Outdoor Point-to-Point Bridging or Multipoint Mesh Deployment

Antenna Radiation Patterns:

FAP-222C Antenna Radiation Patterns

FAP-224D Antenna Radiation Patterns

RF RX/TX Performance Table:


FortiAP 222C
Radio 1 — 5 GHz Radio 2 — 2.4 GHz
Operating Frequency Tx Power (dBm) Rx Sensitivity (dBm) Tx Power (dBm) Rx Sensitivity (dBm)
6 Mbps 24 -93 27 -92
54 Mbps 20 -77 25 -75
802.11n HT20
MCS 0/8 24 -93 27 -91
MCS 1/9 24 -91 27 -89
MCS 2/10 24 -87 27 -88
MCS 3/11 23 -84 27 -85
MCS 4/12 23 -81 26 -81
MCS 5/13 21 -77 25 -78
MCS 6/14 20 -76 25 -76
MCS 7/15 20 -74 24 -73
802.11n HT40
MCS 0/8 24 -89 27 -86
MCS 1/9 24 -86 27 -87
MCS 2/10 24 -84 27 -86
MCS 3/11 24 -81 27 -83
MCS 4/12 24 -78 26 -79
MCS 5/13 22 -76 24 -77
MCS 6/14 20 -75 24 -72
MCS 7/15 20 -73 24 -71
802.11 ac HT80
MCS 0 24 -87
MCS 1 24 -85
MCS 2 24 -83
MCS 3 24 -79
MCS 4 24 -77
MCS 5 22 -76
MCS 6 21 -75
MCS 7 20 -73
MCS 8 18 -65
MCS 9 17 -61

FortiAP 224D
Radio 1 — 5 GHz Radio 2 — 2.4 GHz
802.11 a/g Tx Power (dBm) Rx Sensitivity (dBm) Tx Power (dBm) Rx Sensitivity (dBm)
6Mbps 20 -87 20 -93
9Mbps 19 -85 20 -91
12Mbps 19 -83 20 -88
18Mbps 19 -81 20 -85
24Mbps 19 -78 20 -80
36Mbps 18 -77 19 -77
48Mbps 18 -76 19 -74
54Mbps 17 -75 18 -72
802.11n HT20
MSC 0/8 20 -86 20 -86
MSC 1/9 19 -83 20 -83
MSC 2/10 19 -81 20 -81
MSC 3/11 19 -78 20 -78
MSC 4/12 19 -76 20 -76
MSC 5/13 18 -74 19 -72
MSC 6/14 18 -73 19 -71
MSC 7/15 17 -72 18 -70
802.11n HT40
MSC 0/8 20 -83 20 -83
MSC 1/9 19 -80 20 -80
MSC 2/10 19 -78 20 -78
MSC 3/11 19 -75 20 -75
MSC 4/12 19 -73 20 -74
MSC 5/13 18 -72 19 -73
MSC 6/14 18 -70 19 -72
MSC 7/15 17 -69 18 -70

Specifications:


FortiAP 112D FortiAP 224D FortiAP 222C
Hardware
Hardware Type Outdoor IP55 rated Ourdoor IP66 rated Outdoor IP67 rated, status LEDs, gore vent for pressure equalization
Number of Radios 1 2 2
Number of Antennas 1 internal 4 external RP-SMA 4 external N-Type
Peak Antenna Gain 6 dBi for 2.4 GHz, 6 dBi for 5 GHz 5 dBi for 2.4 GHz, 5 dBi for 5 GHz 3.5 dBi for 2.4 GHz, 6 dBi for 5 GHz
Frequency Bands (GHz) * 2.400–2.4835 2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850 2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850
Frequency of Radio 1 2.4 GHz b/g/n or 5 GHz a/n 5 GHz a/n 5 GHz a/n/ac
Frequency of Radio 2 2.4 GHz b/g/n 2.4 GHz b/g/n
Throughput Up to 150 Mbps Radio 1: Up to 300 Mbps, Radio 2: Up to 300 Mbps Radio 1: Up to 867 Mbps, Radio 2: Up to 300 Mbps
Tx/Rx Streams 1x1 MIMO with 1 spatial stream 2x2 MIMO 2 spatial stream 2x2 MIMO with 2 spatial streams
Ethernet Ports 2x FE RJ45 ports with PoE pass-through. (one PoE-PD, one PoE-PS) 1x GE RJ45 1x GE RJ45
USB Port
Serial Console Port
Power over Ethernet (PoE) IEEE 802.3af (12.9 W) IEEE 802.3af (15.4 W). Compliant with 802.3at as well. IEEE 802.3at (30 W) or proprietary injector
WME Multimedia Extensions Yes (4 priority queues for voice, video, data and background traffic) Yes (4 priority queues for voice, video, data and background traffic) Yes (4 priority queues for voice, video, data and background traffic)
Simultaneous SSIDs 8 (7 if background scanning enabled) 16 (14 if background scanning enabled) 16 (14 if background scanning enabled)
EAP Type(s) EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC EAP-SIM, EAP-AKA, EAP-FAST EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC EAP-SIM, EAP-AKA, EAP-FAST EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC EAP-SIM, EAP-AKA, EAP-FAST
User/Device Authentication WPA™ and WPA2™ with 802.1x or Preshared key, WEP and Web Captive Portal, MAC blacklist & whitelist WPA™ and WPA2™ with 802.1x or Preshared key, WEP and Web Captive Portal, MAC blacklist & whitelist WPA™ and WPA2™ with 802.1x or Preshared key, WEP and Web Captive Portal, MAC blacklist & whitelist
Maximum Tx Power 18 dBm (2 GHz), 16 dBm (5 GHz) * 20 dBm (50 mW) * 26 dBm (398 mW) *
Physical Security Concrete Pole Mount Concrete and pole mount Concrete and pole mount
Mean Time Between Failures > 10 years > 10 years > 7 years
IEEE Specifications 802.11a, 802.11b, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11n, 802.1x, 802.3af 802.11a, 802.11b, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11n, 802.1x, 802.3af 802.11a, 802.11b, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11n, 802.1x, 802.3af, 802.11ac
802.11ac 80MHz Channel Yes
802.11n Features

20 MHz and 40MHz High-Throughput (HT) Support
Increased maximum frame transmission by incorporating A-MPDU and A-MSDU Packet Aggregation
Conserve power via Dynamic MIMO power save
20 MHz and 40 MHz High-Throughput (HT) Support
Increased maximum frame transmission by incorporating A-MPDU and A-MSDU Packet Aggregation
Conserve power via Dynamic MIMO power save
Advanced 802.11n to enhance rate-over-range including:


Low-density parity check (LDPC) encoding
Maximum likelihood demodulation (MLD)
Transmit beamforming (TxBF)
Maximum Ratio Combining (MRC) for improved receiver
Low-density parity check (LDPC) encoding
Maximum likelihood demodulation (MLD)

Maximum Ratio Combining (MRC) for improved receiver
Mounting Options Wall or pole Wall or pole Wall or pole
Included Accessories 30 Watt PoE injector with AC power adapter, wall mount kit, and pole mount kit PoE injector with AC power adapter, pole mount kit, wall mount kit, grouding cable and 4x dipole antennas PoE injector with AC power adapter, pole mount kit, wall
mount kit, grounding cable, surge protector, 4x dipole antennas
FortiPresence Capable Yes Yes Yes
Wireless Monitoring Capabilitie
Frequencies scanned 2.4 and 5 GHz 2.4 and 5 GHz 2.4 and 5 GHz
Background scan with client access on 2.4 and 5 GHz Yes Yes
Full-time scan as dedicated monitor Yes Yes Yes
Dimensions
Length x Width x Height 10.5 x 5.7 x 1.7 inches (267 x 145 x 44 mm) 6.9 x 6.9 x 1.9 inches (176 x 176 x 47 mm) 9.8 x 8.7 x 2.1 inches (249 x 220 x 53 mm)
Weight 1.48 lbs (0.675 kg) 0.77 lb (0.35 kg) 3.68 lbs (1.67 kg)
Package (shipping) Weight 2.72 lbs (1.235 kg) 1.33 lb (0.6 kg) 9.1 lbs (4.31 kg)
Environment
Power Supply Proprietary PoE Injector Adapter Input: 100–240V AC, 50–60 Hz Adapter Input: 100–240V, 50/60Hz, 0.4A Output: 12V DC, 1.25A Proprietary PoE Injector Adapter Input: 100–240V AC, 50–60 Hz
Power Consumption (Average) 22.61 W 6.78 W 16 W
Power Consumption (Maximum) 23.28 W 11.76 W 18.4 W
Humidity 10–90% non condensing 10–90% non condensing 5–90% non-condensing
Operating Temperature -4–140°F (-20–60°C) 23–110°F (-5–45°C) -40–140°F (-40–60°C)
Storage Temperature -40–176°F (-40–80°C) -4–58°F (-20–70°C) -40–158°F (-40–70°C)
Directives Low Voltage Directive • RoHS Low Voltage Directive • RoHS Low Voltage Directive • RoHS
Certifications
WiFi Alliance Certified Yes Yes
Warranty
Limited Lifetime Warranty No No No

Documentation:

Download the Fortinet FortiAP Outdoor Series Datasheet (PDF).

Pricing Notes:

Fortinet FortiAP-224D Series
FortiAP-224D
Includes 1 x GE RJ45 port, dual radio ( 802.11 b/g/n and 802.11 a/n, 2x2 MIMO), IP66 rated, external antennas, pole/wall mount kit included, 802.3af PoE injector with AC power adapter included
Fortinet FortiAP-224D Outdoor AP
#FAP-224D-A
List Price: $495.00
Our Price: $387.00
