Fortinet FortiAP 28C Access Point
Integrated Wireless Security and Access Solutions

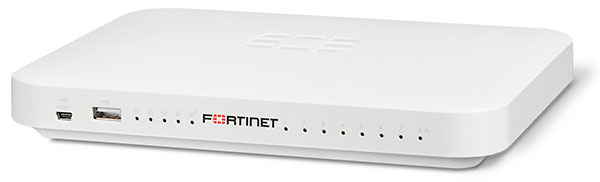

Fortinet FortiAP 28C Access Point

The FortiAP-28C is for larger offices and integrates a higher performance 2x2 MIMO access point with a 10 port Gigabit switch.

Fortinet FortiAP 28C Series
FortiAP-28C
Fortinet FortiAP-28C Remote Wireless AP

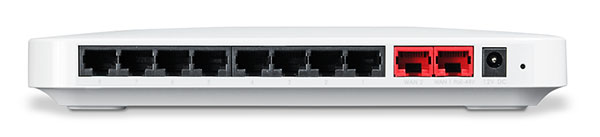

10 x GE RJ45 ports (including 2 x WAN port, 8 x LAN port), 3 x USB port (2 x Type A USB, 1 x Type B USB), single radio (802.11 b/g/n, 2x2 MIMO), Mounting kit not applicable, AC power adapter included. Region Code A
#FAP-28C-A
List Price: $495.00
Our Price: $387.00

Click here to jump to more pricing!

Overview:

The need for Secure Remote Access Points

Enterprises are looking to increase productivity through uninterrupted access to applications and resources, without compromising security and agility. You want to also extend your network to your employees’ home offices and increase productivity, yet you want to retain visibility and control of your wireless network traffic by enforcing the same policies. You also need a solution that is easy for the employees to self install and for you to provision quickly and troubleshoot remotely.

Integrated Wireless Security and Access Solution

Fortinet’s remote wireless access points deliver secure, identity-driven WiFi client access that creates a fortified WLAN network for the home user and tunnels traffic security to the corporate network. Centrally managed by a supported FortiGate® or FortiWiFi™ platform with its integrated wireless controller, these remote APs allow you to deploy a comprehensive, integrated security solution for your wireless and wired networks. The centralized FortiGate controllers enable you to deploy comprehensive unified threat management (UTM) protection over your wireless network.

Method of Operation

Upon powering up, this family of remote FAP automatically retrieves an IP address from the home WAN router and performs a DNS lookup of the preprovisioned domain name of your company to locate the wireless controller installed in your private cloud. Once connected to the wireless controller, it provides its device certificate to authenticate itself to the wireless controller and downloads its configuration along with the SSIDs it needs to broadcast throughout the home. You can configure the corporate controller to broadcast the same office SSID at the home office for seamless roaming and zero reconfiguration of employee laptops. Once the home user connects to the office SSID in their home, all their traffic will be forwarded through a secure SSL tunnel to the corporate network without the need for any VPN clients. The wired ports can also be bridged with one of the SSIDs so devices, such as VoIP phones, can also connect to corporate office without any need for complex configuration. We have designed this product to save IT administrators time and reduce helpdesk calls.

High Performance Secure Thin Access Points

  • Leverage existing FortiGate or FortiWiFi platforms as controllers for low TCO
  • Full range of authentications and access for all use cases
  • Integration with FortiManager™ and FortiAnalyzer™ for unified control and reporting
  • Fast Roaming for uninterrupted data access
  • Automatic Radio Resource Provisioning (ARRP) for optimized throughput
  • Flexible deployment options with simple per device pricing
  • Layer 7 application QoS for maximum business productivity
  • Rogue AP control for PCI DSS compliance

Features & Benefits:


Features Benefits
Enterprise Unified Threat Management Protects your network with the widest range of security and networking technologies seamlessly integrated into a single device: Firewall, IPS, Application Control, VPN, Web Filtering, and many others.
Application-Layer Quality of Service Going above and beyond Wireless Multimedia Extensions (WME) by offering layer 7 traffic shaping and application use control.
‘Single Pane of Glass’ Management Console Unmatched visibility and control of all wired and wireless network traffic that eliminates blind spots in your security infrastructure and ensures consistent and effective policy enforcement and compliance.
Remote AP Allows simple and secure teleworker connection for wireless and wired devices alleviating the need for host VPN agents and complex configuration.

Deployment:

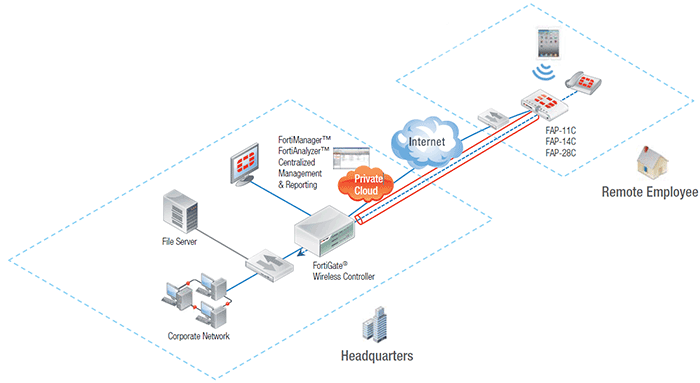

Deployment

Remote AP discovers private cloud WiFi controller and securely tunnels all traffic

Performance Table:


RF RX/TX Performance Table
  Radio 1, 5GHz
802.11 b Tx Power Rx Sensitivity
1 Mbps 17 -86
11 Mbps 16 -83
802.11 g
6 Mbps 16 -85
9 Mbps 16 -83
12 Mbps 16 -81
18 Mbps 16 -79
24 Mbps 16 -77
36 Mbps 15 -73
48 Mbps 14 -71
54 Mbps 13 -69
802.11n HT20
MCS0 15 -83
MCS1 14 -80
MCS2 14 -77
MCS3 14 -74
MCS4 14 -72
MCS5 13 -70
MCS6 12 -68
MCS7 12 -66

Specifications:

Fortinet FortiAP 28C Access Point

Model: FortiAP-11C FortiAP-14C FortiAP-28C
Hardware Specifications
Hardware Type Remote AP Remote AP Remote AP
Indoor/Outdoor Deployment Indoor - Travel Indoor - Home Office Indoor - Small Office
Number of Radios 1 1 1
Number of Antennas 1 Internal 1 Internal 2
Peak Antenna Gain 3 dBi for 2.4 GHz 3 dBi for 2.4 GHz 3 dBi for 2.4 GHz, 4 dBi for 5 GHz
Frequency Bands (GHz)* 2.400 - 2.4835 2.400 - 2.4835 2.400 - 2.4835
Frequency of Radio 1 2.4GHz IEEE b/g/n 2.4GHz IEEE b/g/n 2.4 GHz IEEE b/g/n, 5 GHz IEEE a/n
Tx/Rx Streams (802.11n mode) 1x1 MIMO with 1 spatial stream 1x1 MIMO with 1 spatial stream 2x2 MIMO with 2 spatial streams
Ethernet Port 150 Mbps association rate 150 Mbps association rate 300 Mbps association rate
Ethernet WAN Ports 1 x 10/100/1000 1 x 10/100 2 x 10/100/1000
Ethernet LAN Ports 1 x 10/100/1000 4 x 10/100 8 x 10/100/1000
Serial Console Port No
USB Port 1 type A, 1 type B No 2 type A, 1 type B
Power over Ethernet (PoE) N/A
WME Multimedia Extensions Yes (4 priority queues for voice, video, data and background traffic)
Simultaneous SSIDs 8 (7 for client access, 1 for monitoring)
EAP Type(s) EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC EAP-SIM, EAP-AKA, EAP-FAST
User/Device Authentication WPA™ and WPA2™ with 802.1x or Preshared key, WEP and Web Captive Portal, MAC blacklist & whitelist
Maximum Tx Power 17 dBm (50mW) *
IEEE Specifications 802.11b, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11n, 802.1X
Dimensions
Height x Width x Length (in) 4.3 x 3.5 x 1.5 1.06 x 4.92 x 3.86 1.38 x 8.43 x 7.09
Height x Width x Length (mm) 110 x 89 x 34 27 x 125 x 98 35 x 214 x 180
Mounting Options 0.22 kg (0.5 lbs) 0.1 kg (0.2 lbs) 0.5 kg (1.1 lbs)
Environment
Power Required Integrated Power Plug 100–240 VAC, 50–60 Hz (external DC power adaptor) 100–240 VAC, 50–60 Hz (external DC power adaptor)
Power Consumption (AVG) 5 W 1.5 W 12 W
Power Consumption (MAX) 7 W 2 W 15 W
Heat Dissipation 17 BTU/h 4.5 BTU/h 45 BTU/h
Operating Temperature -4–140°F (-20–60°C) 32–104°F (0–40°C) 32–104°F (0–40°C)
Storage Temperature -4–158°F (-20–70°C) -13–158°F (-25–70°C) -13–158°F (-25–70°C)
Humidity 10 to 90% non-condensing 20 to 90% non-condensing 20 to 90% non-condensing

* Frequency selection and power may be restricted to abide by regional regulatory compliance laws.

Documentation:

Download the Fortinet FortiAP-28C Series Datasheet (PDF).

Pricing Notes:

Fortinet FortiAP 28C Series
FortiAP-28C
Fortinet FortiAP-28C Remote Wireless AP
10 x GE RJ45 ports (including 2 x WAN port, 8 x LAN port), 3 x USB port (2 x Type A USB, 1 x Type B USB), single radio (802.11 b/g/n, 2x2 MIMO), Mounting kit not applicable, AC power adapter included. Region Code A
#FAP-28C-A
List Price: $495.00
Our Price: $387.00
Fortinet 8x5 FortiCare Contract
*8x5 Support, Hardware Replacement, Firmware and General Upgrades
1 Year 8x5 FortiCare Contract for FortiAP-28C
#FC-10-P0028-311-02-12
Our Price: $25.00
3 Year 8x5 FortiCare Contract for FortiAP-28C
#FC-10-P0028-311-02-36
Our Price: $65.00
5 Year 8x5 FortiCare Contract for FortiAP-28C
#FC-10-P0028-311-02-60
Our Price: $108.00
Fortinet 24x7 FortiCare Contract
*24x7 Support, Advanced Hardware Replacement (NBD), Firmware and General Upgrades
1 Year 24x7 FortiCare Contract for FortiAP-28C
#FC-10-P0028-247-02-12
Our Price: $50.00
3 Year 24x7 FortiCare Contract for FortiAP-28C
#FC-10-P0028-247-02-36
Our Price: $130.00
5 Year 24x7 FortiCare Contract for FortiAP-28C
#FC-10-P0028-247-02-60
Our Price: $217.00
