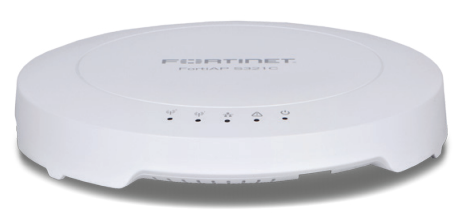

Fortinet FortiAP S321C
802.11ac Wave 1 Access Point with a Dual Radios

Fortinet FortiAP S321C

Fortinet FortiAP-S Series
FortiAP-S321C
Fortinet FortiAP-S321C
Indoor Cloud Managed Wireless AP - 1 x GE RJ45 LAN port, dual radio with internal antennas (802.11 a/n/ac and 802.11 b/g/n, 3x3 MIMO), ceiling/wall mount kit included, power adapter not included. Includes FortiCloud AP Management License and Limited Lifetime Warranty. For Gigabit PoE injector order: GPI-130. For AC power adapter order: SP-FG20C-PA. Region Code A.
#FAP-S321C-A
List Price: $700.00
Our Price: $547.00

Click here to jump to more pricing!

Overview:

The FAP-S321C and S321CR are excellent mid-range access points with security built in. The FAP-S321CR has 2 GE ports that can be used to connect another device like an IP camera to the network. These 802.11ac Wave 1 access points have 2 radios that are 2.4 GHz and 5 GHz. These access points are ideal for mid-density environments such as classrooms or mid-size remote locations.

The FortiAP-S series are cloud-managed access points designed for deployment in SMBs and distributed enterprise remote sites. Managed through the free FortiCloud provisioning and management portal, they eliminate the CAPEX and complexity of deploying WLAN controllers and management servers. Two models come with 3x3 internal antennas, and two are equipped with connectors for use with external directional or panel antennas.

Cloud WiFi with Comprehensive Threat Protection

Unlike any other access points on the market, they are equipped with extra memory and a powerful dual-core processor, which enable them to perform real-time security processing on the AP itself, providing complete protection against all manner of WiFi and cyber-threats at the network edge. With Fortinet’s award winning security technology embedded in the AP, the FortiAP-S series provides the most compact solution for complete content and application security in a Cloud WiFi architecture. This has significant implications for ease-of-deployment, operational efficiency and total cost of ownership.

Highlights

  • Industry’s most compact solution for WiFi access with layer 7 security
  • Provisioned and managed remotely from the cloud through FortiCloud
  • No recurring per AP licenses for full-featured cloud-management
  • No hidden feature licenses for enterprise-grade WiFi capabilities
  • Layer 7 application control to optimize bandwidth utilization
  • Rogue AP detection and mitigation to satisfy PCI DSS compliance
  • Latest 802.11ac technology with association rate of up to 1.3 Gbps
Key Features & Benefits
Benefits of Cloud Management Without Sacrificing Security Combines the low CAPEX and convenience of cloud management, with cloudprovided threat protection, delivered through regular FortiGuard updates.
Advanced Security Protection Embedded in the AP On-board IPS, antivirus scanning, web-filtering and application control, protects all users and devices from the latest security threats.
Integrated WIDS and Rogue AP Suppression Protects the network from advanced wireless threats to satisfy PCI DSS compliance. PCI-DSS compliance reports available through FortiCloud.

Deployment:

Cloud-managed and FortiGate-managed FAP-S series at remote sites

Cloud-managed and FortiGate-managed FAP-S series at remote sites

Fortinet approach to secure cloud-managed WiFi

Fortinet approach to secure cloud-managed WiFi

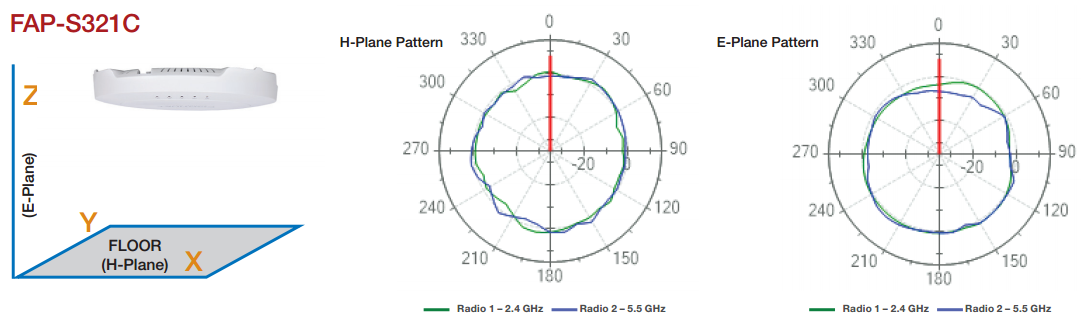

Antenna Radiation Patterns:

Antenna Radiation Patterns

Antenna Radiation Patterns

RF RX/TX Performance Table:


FortiAP S321C FortiAP S321CR
Radio 1 - 2.4 GHz Radio 2 - 5 GHz Radio 1 - 2.4 GHz Radio 2 - 5 GHz
802.11 a/g Tx Power (dBm) Rx Sensitivity (dBm) Tx Power (dBm) Rx Sensitivity (dBm) Tx Power (dBm) Rx Sensitivity (dBm) Tx Power (dBm) Rx Sensitivity (dBm)
6 Mbps 17.5 -90 20 -92 25 -90 25 -93
9 Mbps 17.5 -89 20 -91 24 -90 24 -91
12 Mbps 17.5 -87 20 -89 23 -89 23 -89
18 Mbps 17.5 -85 20 -87 22 -87 22 -87
24 Mbps 17.5 -82 20 -83 21 -84 21 -84
36 Mbps 17.5 -79 20 -79 21 -80 21 -80
48 Mbps 17.5 -75 20 -76 21 -76 21 -76
54 Mbps 17.5 -74 18 -75 21 -75 21 -75
802.11n HT20
MCS 0/8/16 17.5 -90 20 -92 25 -90 25 -93
MCS 1/9/17 17.5 -87 20 -89 24 -87 24 -87
MCS 2/10/18 17.5 -85 20 -86 23 -85 23 -85
MCS 3/11/19 17.5 -83 20 -82 22 -82 22 -82
MCS 4/12/20 17.5 -79 20 -78 21 -78 21 -78
MCS 5/13/21 17.5 -74 20 -74 21 -74 21 -74
MCS 6/14/22 17.5 -73 20 -73 21 -73 21 -73
MCS 7/15/23 17.5 -72 18 -72 21 -72 21 -72
802.11n HT40
MCS 0/8/16 16.5 -87 19 -89 25 -87 27 -90
MCS 1/9/17 16.5 -84 19 -86 24 -84 23 -84
MCS 2/10/18 16.5 -82 19 -83 23 -82 22 -82
MCS 3/11/19 16.5 -79 19 -80 22 -79 21 -79
MCS 4/12/20 16.5 -76 19 -76 21 -75 20 -75
MCS 5/13/21 16.5 -71 19 -72 21 -71 20 -71
MCS 6/14/22 16.5 -70 19 -71 21 -70 20 -70
MCS 7/15/23 16.5 -69 18 -70 21 -69 20 -69
802.11 ac VHT20
MCS 0   20 -92   23 -93
MCS 1   20 -89   22 -87
MCS 2   20 -86   21 -85
MCS 3   20 -82   20 -82
MCS 4   20 -78   20 -78
MCS 5   20 -74   20 -74
MCS 6   20 -73   19 -73
MCS 7   18 -72   19 -72
MCS 8   16 -67   19 -68
802.11 ac VHT40
MCS 0   19 -89   23 -90
MCS 1   19 -86   22 -84
MCS 2   19 -83   21 -82
MCS 3   19 -80   20 -79
MCS 4   19 -76   20 -75
MCS 5   19 -72   20 -71
MCS 6   19 -71   20 -70
MCS 7   18 -70   19 -69
MCS 8   16 -65   19 -65
MCS 9   15 -63   19 -63
802.11 ac VHT80
MCS 0   19 -86   23 -87
MCS 1   19 -83   22 -81
MCS 2   19 -80   21 -79
MCS 3   19 -77   20 -76
MCS 4   19 -73   20 -72
MCS 5   19 -69   20 -68
MCS 6   19 -68   19 -67
MCS 7   18 -66   19 -66
MCS 8   16 -62   19 -62
MCS 9   15 -60   19 -60

Specifications:


FortiAP-S321C FortiAP-S321CR
Hardware
Hardware Type Indoor Indoor
Number of Radios 2 2
Number of Antennas 3 Internal 3 Internal
Peak Antenna Gain 3.5 dBi for 2.4 GHz,
6 dBi for 5 GHz
3 dBi for 2.4 GHz,
3 dBi for 5 GHz
Frequency Bands (GHz) * 2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850 2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850
Frequency of Radio 1 2.4 GHz b/g/n 2.4 GHz b/g/n
Frequency of Radio 2 5 GHz a/n/ac 5 GHz a/n/ac
Throughput Radio 1: Up to 450 Mbps,
Radio 2: Up to 1300 Mbps
Radio 1: Up to 450 Mbps,
Radio 2: Up to 1300 Mbpss
Tx/Rx Streams 3x3 MIMO with 3 spatial streams 3x3 MIMO with 3 spatial streams
Ethernet Ports 1x GE RJ45 2x GE RJ45
USB Port 1x Type A 1x Type A
Serial Console Port 1x RJ45 1x RJ45
Power over Ethernet (PoE) IEEE 802.3at (25.5W) Dual redundant PoE power ports with support for IEEE 802.3at (25.5 W)
WME Multimedia Extensions Yes (4 priority queues for voice, video, data and background traffic)
Simultaneous SSIDs 16 (14 if background scanning enabled)
EAP Type(s) EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC EAP-SIM, EAP-AKA, EAP-FAST
User/Device Authentication WPA and WPA2 with 802.1X or Preshared key, WEP and Web Captive Portal, MAC blacklist & whitelist
Maximum Tx Power 20 dBm (100 mW)* 20 dBm (100 mW)*
Physical Security Kensington Lock Kensington Lock
Mean Time Between Failures >20 Years >20 Years
IEEE Specifications 802.11a, 802.11ac, 802.11b, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11n, 802.1x, 802.3af
802.11ac 80MHz Channel Yes Yes
802.11n Features
  • 20 MHz and 40 MHz High-Throughput (HT) Support
  • Increased maximum frame transmission by incorporating A-MPDU and A-MSDU Packet Aggregation
  • Conserve power via Dynamic MIMO power save
Advanced 802.11n to enhance rate-over-range including:
  • Low-density parity check (LDPC) encoding
  • Maximum likelihood demodulation
  • Maximum Ratio Combining (MRC) for improved receiver performance
Mounting Options Ceiling, T-Rail and wall Ceiling, T-Rail and wall
Included Accessories Ceiling, T-Rail and wall mount kit Ceiling, T-Rail and wall mount kit
FortiPresence Capable Yes Yes
Wireless Monitoring Capabilities
Frequencies scanned 2.4 and 5 GHz 2.4 and 5 GHz
Background scan with client access on2.4 and 5 GHz Yes Yes
Full-time scan as dedicated monitor Yes Yes
Full-time scan with client access on 5G GHz Yes Yes
Dimensions
Length x Width x Height 8.5 x 8.5 x 1.38 inches (21.6 x 21.6 x 3.5 cm) 7.68 x 7.68 x 1.09 inches (19.5 x 19.5 x 3.78 cm)
Weight 1.02 lb (0.46 kg) 1.43 lb (0.65 kg)
Package (shipping) Weight 1.94 lb (0.88 kg) 2.43 lb (1.1 kg)
Environment
Power Supply Adapter input: 100–240 V,
50/60Hz, 0.9A.
Max output: 12V DC, 3A
Adapter input: 100–240V,
50/60Hz, 0.9A.
Max output: 12V DC, 3A
Power Consumption (Average / Maximum) 3.72 W / 18 W 18.13 W / 21.3 W
Humidity 5–90% non condensing 5–90% non condensing
Operating Temperature 32–104˚F (0–40˚C) 32–104˚F (0–40˚C)
Storage Temperature -4–158˚F (-20–70˚C) -4–158˚F (-20–70˚C)
Directives Low Voltage Directive • RoHS Low Voltage Directive • RoHS
Certifications
WiFi Alliance Certified Yes No
DFS Certified Yes No
Warranty
Limited Lifetime Warranty Yes Yes

* Frequency selection and power may be restricted to abide by regional regulatory compliance laws.

Documentation:

Download the Fortinet FortiAP-S Series Access Points Datasheet (PDF).

Pricing Notes:

Fortinet FortiAP-S Series
FortiAP-S321C
Fortinet FortiAP-S321C
Indoor Cloud Managed Wireless AP - 1 x GE RJ45 LAN port, dual radio with internal antennas (802.11 a/n/ac and 802.11 b/g/n, 3x3 MIMO), ceiling/wall mount kit included, power adapter not included. Includes FortiCloud AP Management License and Limited Lifetime Warranty. For Gigabit PoE injector order: GPI-130. For AC power adapter order: SP-FG20C-PA. Region Code A.
#FAP-S321C-A
List Price: $700.00
Our Price: $547.00
FortiAP-S Security and Support Bundle
Includes 24x7 FortiCare plus IPS, App Control, AV and Web Filtering
FortiAP-S Security and Support Bundle for FortiAP-S321C
#FC-10-P0323-905-02-12
Our Price: $105.00
Fortinet 8x5 FortiCare Contract
*8x5 Support, Hardware Replacement, Firmware and General Upgrades
1 Year 8x5 FortiCare Contract for FortiAP-S321C
#FC-10-P0323-311-02-12
Our Price: $35.00
3 Year 8x5 FortiCare Contract for FortiAP-S321C
#FC-10-P0323-311-02-36
Our Price: $92.00
5 Year 8x5 FortiCare Contract for FortiAP-S321C
#FC-10-P0323-311-02-60
Our Price: $153.00
Fortinet 24x7 FortiCare Contract
*24x7 Support, Advanced Hardware Replacement (NBD), Firmware and General Upgrades
1 Year 24x7 FortiCare Contract for FortiAP-S321C
#FC-10-P0323-247-02-12
Our Price: $70.00
3 Year 24x7 FortiCare Contract for FortiAP-S321C
#FC-10-P0323-247-02-36
Our Price: $184.00
5 Year 24x7 FortiCare Contract for FortiAP-S321C
#FC-10-P0323-247-02-60
Our Price: $306.00
FortiCloud FortiAP Enterprise Management License
FortiCloud FortiAP Enterprise Management License for FAP-S series FortiCloud AP Enterprise Management License including: FortiGuard Subscription services, Premium AP Management Features, 1 Yr Log retention, 8x5 Forticare, 1 Year
#FC-10-90APS-170-02-12
Our Price: $50.00
FortiCloud FortiAP Enterprise Management License for FAP-S series FortiCloud AP Enterprise Management License including: FortiGuard Subscription services, Premium AP Management Features, 1 Yr Log retention, 8x5 Forticare, 3 Year
#FC-10-90APS-170-02-36
Our Price: $131.00
Power over Ethernet (PoE) Injector
GPI-130 1-Port Gigabit PoE Power Injector, 802.3at up to 30W
#GPI-130
List Price: $126.00
Our Price: $98.00
AC Power Adaptor
AC Power Adaptor for FAP-24D, FAP-28C, FAP-221C, FAP-223C, FAP-320B, FAP-320C, FAP-321C, FAP-S311C, FAP-S313C, FAP-S321C and FAP-S323C with US power plug
#SP-FG20C-PA-US
Our Price: $33.00
