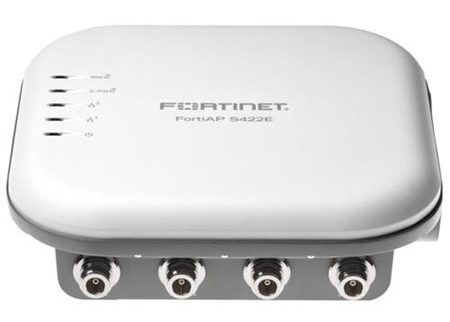

Fortinet FortiAP S422E
Outdoor 802.11ac Wave 2
Access Point with Dual 2.4 GHz and 5 GHz Radios with a Variety of External Antenna Options
Fortinet FortiAP-S Series
FortiAP-S422E
Fortinet FortiAP-S422E
Outdoor Cloud or FortiGate Managed wireless Smart AP - 2 x GE RJ45 port, 802.11 a/b/g/n/ac WAVE 2, dual concurrent dual band (2.4GHz/5GHz), 4x4 MIMO, external antennas, Ceiling/wall mount kit included, Proprietary PoE injector with AC power adapter included. Region Code A.
Outdoor Cloud or FortiGate Managed wireless Smart AP - 2 x GE RJ45 port, 802.11 a/b/g/n/ac WAVE 2, dual concurrent dual band (2.4GHz/5GHz), 4x4 MIMO, external antennas, Ceiling/wall mount kit included, Proprietary PoE injector with AC power adapter included. Region Code A.
#FAP-S422E-A
List Price: $2,200.00
Our Price: $1,720.00
List Price: $2,200.00
Our Price: $1,720.00
Click here to jump to more pricing!
Overview:
The FAP-422E is our high-density 802.11ac Wave 2 outdoor access point. This enterprise class access point is ideal for large high-density outdoor environments such as an outside office building or recreation area. It supports MU-MiMO giving excellent performance throughput and the ability to support 3 simultaneous devices.
The FortiAP-S series are cloud-managed access points designed for deployment in SMBs and distributed enterprise remote sites. Managed through the free FortiCloud provisioning and management portal, they eliminate the CAPEX and complexity of deploying WLAN controllers and management servers. Two models come with 3x3 internal antennas, and two are equipped with connectors for use with external directional or panel antennas.
Cloud WiFi with Comprehensive Threat Protection
Unlike any other access points on the market, they are equipped with extra memory and a powerful dual-core processor, which enable them to perform real-time security processing on the AP itself, providing complete protection against all manner of WiFi and cyber-threats at the network edge. With Fortinet’s award winning security technology embedded in the AP, the FortiAP-S series provides the most compact solution for complete content and application security in a Cloud WiFi architecture. This has significant implications for ease-of-deployment, operational efficiency and total cost of ownership.
Highlights
- Industry’s most compact solution for WiFi access with layer 7 security
- Provisioned and managed remotely from the cloud through FortiCloud
- No recurring per AP licenses for full-featured cloud-management
- No hidden feature licenses for enterprise-grade WiFi capabilities
- Layer 7 application control to optimize bandwidth utilization
- Rogue AP detection and mitigation to satisfy PCI DSS compliance
- Latest 802.11ac technology with association rate of up to 1.3 Gbps
| Key Features & Benefits | |
|---|---|
| Benefits of Cloud Management Without Sacrificing Security | Combines the low CAPEX and convenience of cloud management, with cloudprovided threat protection, delivered through regular FortiGuard updates. |
| Advanced Security Protection Embedded in the AP | On-board IPS, antivirus scanning, web-filtering and application control, protects all users and devices from the latest security threats. |
| Integrated WIDS and Rogue AP Suppression | Protects the network from advanced wireless threats to satisfy PCI DSS compliance. PCI-DSS compliance reports available through FortiCloud. |
Deployment:
Cloud-managed and FortiGate-managed FAP-S series at remote sites
Fortinet approach to secure cloud-managed WiFi

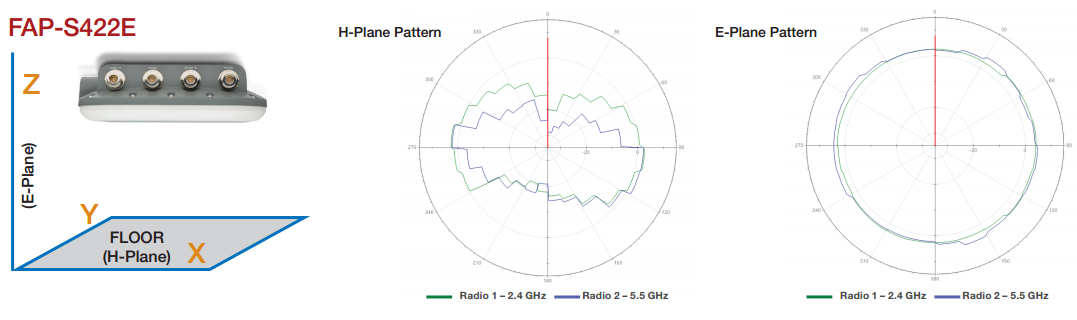

Antenna Radiation Patterns:
RF RX/TX Performance Table:
| FortiAP S422E | ||||
|---|---|---|---|---|
| Radio 1 - 2.4 GHz | Radio 2 - 5 GHz | |||
| 802.11 a/g | Tx Power (dBm) | Rx Sensitivity (dBm) | Tx Power (dBm) | Rx Sensitivity (dBm) |
| 6 Mbps | 21 | -94 | 20 | -90 |
| 9 Mbps | 21 | -92 | 20 | -89 |
| 12 Mbps | 21 | -89 | 20 | -86 |
| 18 Mbps | 21 | -88 | 20 | -85 |
| 24 Mbps | 21 | -83 | 20 | -80 |
| 36 Mbps | 21 | -78 | 18 | -75 |
| 48 Mbps | 21 | -77 | 18 | -74 |
| 54 Mbps | 19 | -76 | 17 | -73 |
| 802.11n HT20 | ||||
| MCS 0/8/16 (BPSK) | 19 | -91 | 19 | -90 |
| MCS 1/9/17 (QPSK) | 19 | -89 | 19 | -87 |
| MCS 2/10/18 (QPSK) | 19 | -86 | 19 | -84 |
| MCS 3/11/19 (16-QAM) | 19 | -85 | 18 | -82 |
| MCS 4/12/20 (16-QAM) | 19 | -80 | 17 | -77 |
| MCS 5/13/21 (64-QAM) | 18 | -75 | 16 | -72 |
| MCS 6/14/22 (64-QAM) | 18 | -74 | 16 | -71 |
| MCS 7/15/23 (64-QAM) | 18 | -73 | 16 | -70 |
| 802.11n HT40 | ||||
| MCS 0/8/16 (BPSK) | 19 | -89 | 19 | -87 |
| MCS 1/9/17 (QPSK) | 19 | -87 | 18 | -85 |
| MCS 2/10/18 (QPSK) | 19 | -84 | 18 | -82 |
| MCS 3/11/19 (16-QAM) | 18 | -83 | 17 | -81 |
| MCS 4/12/20 (16-QAM) | 18 | -78 | 17 | -76 |
| MCS 5/13/21 (64-QAM) | 17 | -73 | 17 | -71 |
| MCS 6/14/22 (64-QAM) | 17 | -72 | 17 | -70 |
| MCS 7/15/23 (64-QAM) | 17 | -71 | 17 | -69 |
| MCS 8/16/24 (256-QAM) | 15 | -66 | 13 | -63 |
| MCS 9/17/25 (256-QAM) | 15 | -65 | 13 | -62 |
| 802.11 HT80 | ||||
| MCS 0 (BPSK) | 18 | -84 | ||
| MCS 1 (QPSK) | 17 | -81 | ||
| MCS 2 (QPSK) | 17 | -79 | ||
| MCS 3 (16-QAM) | 16 | -76 | ||
| MCS 4 (16-QAM) | 16 | -74 | ||
| MCS 5 (64-QAM) | 15 | -73 | ||
| MCS 6 (64-QAM) | 15 | -71 | ||
| MCS 7 (64-QAM) | 15 | -70 | ||
| MCS 8 (256-QAM) | 14 | -66 | ||
| MCS 9 (256-QAM) | 14 | -59 | ||
Maximum capability of the Hardware provided (Exenculding antenna gain)
Specifications:
| FortiAP-S422E | |
|---|---|
| Hardware | |
| Hardware Type | Outdoor Smart AP |
| Number of Radios | 2 |
| Number of Antennas | 8 N-type External |
| Peak Antenna Gain | 5 dBi for 2.4 GHz, 7 dBi for 5 GHz |
| Frequency Bands (GHz) * | 2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.851 |
| Frequency of Radio 1 | 2.4 GHz b/g/n (4x4:4 stream), 20/40 Mhz (256 QAM) |
| Frequency of Radio 2 | 5 GHz a/n/ac (4x4:4 stream), 20/40/80 Mhz (256 QAM), MU-MIMO 3 simultanous devices |
| Throughput | Radio 1: up to 800 Mbps, Radio 2: up to 1.733 Gbps |
| Ethernet Ports | 2x GE RJ45 |
| USB Port | — |
| Serial Console Port | 1 RS-232 x RJ45 |
| Power over Ethernet (PoE) | Dual redundant PoE power ports with support for IEEE 802.3at (25.5 W) |
| WME Multimedia Extensions | Yes (4 priority queues for voice, video, data and background traffic) |
| Simultaneous SSIDs | 16 (14 if background scanning enabled) |
| EAP Type(s) | EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC EAP-SIM, EAP-AKA, EAP-FAST |
| User/Device Authentication | WPA and WPA2 with 802.1X or Preshared key, WEP and Web Captive Portal, MAC blacklist & whitelist |
| Maximum Tx Power | 19 dBm (80 mW)* |
| Physical Security | Kensington Lock |
| Mean Time Between Failures | >30 Years |
| IEEE Specifications | 802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11n, 802.1x, 802.11ac, 802.3af, 802.3at, 802.3az |
| Mounting Options | Wall or Pole Mounting |
| Included Accessories | 8x Dipole Antennas, power adapter and proprietary injector, pole mount bracket, grounding cable, surge protector |
| FortiPresence Capable | Yes |
| Wireless Mesh Capable | Yes |
| Modes of Operation | FortiGate or FortiCloud management |
| SSID Types Supported | Local-Bridge, Tunnel & Mesh (when managed by FortiGate) |
| FortiDeploy and FortiCloud Key | Yes |
| Concurrent Clients Per Radio (Maximum / Recommended) | 512 / 128 |
| LED Off Mode | Yes |
| Onboard Security Features when Managed from FortiCloud | |
| Application Control | Yes |
| Block Botnet | Yes |
| Antivirus | Yes |
| Intrusion Prevention | Yes |
| URL Filtering | Yes |
| FortiGuard Security Feed | Subscription available through FortiCloud |
| Advanced 802.11 Features | |
| 802.11ac Wave2 MU-MIMO | Yes |
| Transmit Beam Forming (TxBF) | Yes |
| Low-Density Parity Check (LDPC) Encoding | Yes |
| Maximum Likelihood Demodulation (MLD) | Yes |
| Maximum Ratio Combining (MRC) | Yes |
| A-MPDU and A-MSDU Packet Aggregation | Yes |
| MIMO Power Save | Yes |
| Short Guard Interva | Yes |
| Wireless Monitoring Capabilities | |
| Frequencies scanned | 2.4 and 5 GHz |
| Background scan with client access on2.4 and 5 GHz | Yes |
| Full-time scan as dedicated monitor | Yes |
| Full-time scan with client access | No |
| Packet sniffer mode | Yes |
| Spectrum analyzer | Yes |
| Dimensions | |
| Length x Width x Height | 8.23 x 8.23 x 2.36 inches (20.9 x 20.9 x 6.0 cm) |
| Weight | 4.08 lb (1.85 kg) |
| Package (shipping) Weight | 11.42 lb (5.18 kg) |
| Environment | |
| Power Supply | PoE input: 48V DV, 0.8A |
| Power Consumption (Average / Maximum) | 18.83 W / 22 W |
| Humidity | 5–90% non condensing |
| Operating Temperature | -40–140°F (-40–60°C) |
| Storage Temperature | -40–158°F (-40–70°C) |
| Directives | Low Voltage Directive • RoHS |
| UL2043 Plenum Material | Yes |
| IP Rating | IP67 |
| Certifications | |
| WiFi Alliance Certified | In Process |
| DFS Certified | In Process |
* Frequency selection and power may be restricted to abide by regional regulatory compliance laws.
Documentation:
Download the Fortinet FortiAP-S Series Access Points Datasheet (PDF).
