Fortinet FortiAnalyzer 2000E Appliance
Centralized Logging, Analysis, and Reporting

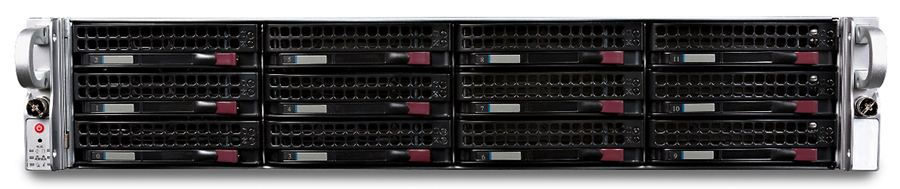

Fortinet FortiAnalyzer 2000E
FortiAnalyzer-2000E
FortiAnalyzer-2000E
Centralized log&analysis appliance - 4x GE RJ45, 2x SFP+, 36TB storage, up to 500 GB/Day of Logs.
Centralized log&analysis appliance - 4x GE RJ45, 2x SFP+, 36TB storage, up to 500 GB/Day of Logs.
#FAZ-2000E
Our Price: $30,000.00
Our Price: $30,000.00
Click here to jump to more pricing!
Overview:

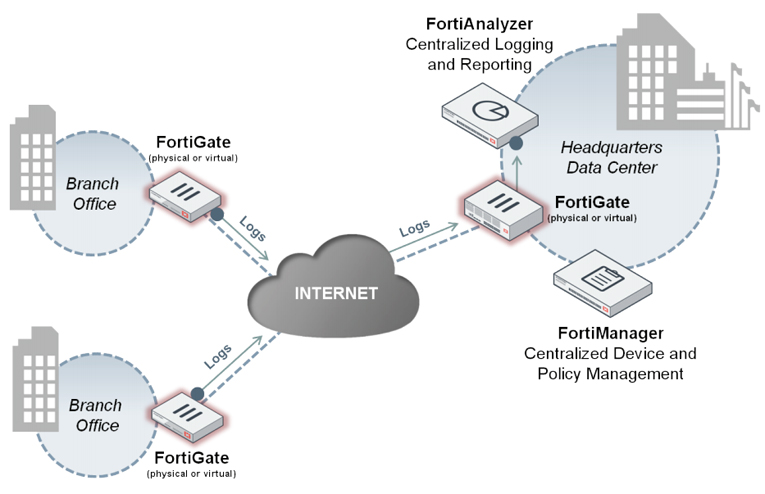

Comprehensive Visualization of Your Network
FortiAnalyzer platforms integrate network logging, analytics, and reporting into a single system, delivering increased knowledge of security events throughout your network. The FortiAnalyzer family minimizes the effort required to monitor and maintain acceptable use policies, as well as identify attack patterns to help you fine tune your policies. Organizations of any size will benefit from centralized security event logging, forensic research, reporting, content archiving, data mining and malicious file quarantining.
You can deploy FortiAnalyzer physical or virtual appliances to collect, correlate, and analyze geographically and chronologically diverse security data. Aggregate alerts and log information from Fortinet appliances and third-party devices in a single location, providing a simplified, consolidated view of your security posture. In addition, FortiAnalyzer platforms provide detailed data capture for forensic purposes to comply with policies regarding privacy and disclosure of information security breaches.
Fortinet’s Versatile Management Solution
Networks are constantly evolving due to threats, organizational growth or new regulatory/business requirements. Traditional analysis products focus on recording and identifying company-wide threats through logging, analysis and reporting over time. FortiAnalyzer offers enterprise class features to identify these threats, but also provides flexibility to evolve along with your ever-changing network. FortiAnalyzer can generate highly customized reports for your business requirements while aggregating logs in a hierarchical, tiered logging topology. Key tenets of Fortinet’s management versatility:
- Diversity of form factors
- Architectural flexibility
- Highly customizable
- Simple licensing
| Key Features & Benefits: | |
|---|---|
| Graphical Summary Reports | Provides network-wide reporting of events, activities and trends occurring on FortiGate® and third-party devices |
| Network Event Correlation | Allows IT administrators to quickly identify and react to network security threats across the network. |
| Scalable Performance and Capacity | FortiAnalyzer family models support thousands of FortiGate and FortiClient™ agents, and can dynamically scale storage based on retention/compliance requirements. |
| Choice of Standalone, Collector or Analyzer mode | Can be deployed as an individual unit or optimized for a specific operation (such as store & forward or analytics). |
| Seamless Integration with the Fortinet Product Portfolio | Tight integration maximizes performance and allows FortiAnalyzer resources to be managed from FortiGate or FortiManager™ user interfaces. |
Highlights:
Reporting and Visualization Tools
- FortiView Summary
Views Generation ad-hoc graphical, filterable views of top users, applications, destinations, websites, threats, VPN usage and more. - Built-in Report Templates
Utilize or modify the PDF templates to display colorful, comphrehensive, graphical network security and usage reports. - UTM & Traffic Summary Reports
Regularly analyze the security profile and traffic/bandwidth patterns with a new consolidated UTM/Traffic report. - Event Management
Raise and monitor important events to present the IT administrator with unprecedented insight into potentially anomalous behavior. - Import/Export Templates
After building a report, export and modify the configuration on another FortiAnalyzer or different ADOM.
JSON and XML (Web Services) APIs
- APIs are available on all FortiAnalyzer hardware models and virtual machines
- JSON API — Allows MSSPs/large enterprises to manipulate FortiAnalyzer reports, charts/datasets and objects
- XML API — Enables IT administrators to quickly provision/configure FortiAnalyzer and generate reports
- Access tools, sample code, documentation and interact with the Fortinet developer community by subscribing to the Fortinet Developer Network (FNDN)
Log Viewer
- View logs in real-time or historical
- Select from traffic, event and full security logs
- Browse by device, ADOM or in aggregate
- Log filtering and search capabilities
- Granular inspection with the log details pane
- Intuitive icons for countries, applications, etc.
Event Management
- Comprehensive alert builder
- Trigger off of severity levels, specific events, actions and destinations
- Set varying threshholds by number of events within a certain timeframe
- View or search through historical alerts
- Notify via email/SNMP or raise a syslog event
Better with FortiManager
- Enterprise-class device management
- Familiar GUI for full network control
- Available as integrated solution with FortiAnalyzer
DLP Archiving
- Investigate DLP content archives
- Supported archive types include: email, HTTP, FTP, IM
- View archive text or download files
FortiAnalyzer Supported Devices
- FortiGate Multi-Threat Security Systems
- FortiMail Messaging Security Systems
- FortiClient Endpoint Security Suite
- FortiWeb Web Application Security
- FortiManager Centralized Management
- FortiSandbox Threat Protection
- FortiCache Web Caching
- Any Syslog-Compatible Device
Specifications:
| FORTIANALYZER 200D | FORTIANALYZER 400E | FORTIANALYZER 1000E | |
|---|---|---|---|
| Capacity and Performance | |||
| GB/Day of Logs | 5 | 75 | 300 |
| Analytic Sustained Rate (logs/sec) | 120 | 500 | 4,000 |
| Collector Sustained Rate (logs/sec) | 350 | 725 | 6,000 |
| Devices/VDOMs/ADOMs (Maximum) | 150 | 200 | 2,000 |
| Hardware Specifications | |||
| Form Factor | 1 RU Rackmount | 1 RU Rackmount | 2 RU Rackmount |
| Total Interfaces | 4x GE | 4x GE | 2x GE |
| Storage Capacity | 1 TB (1x 1 TB) | 12 TB (4x 3 TB) | 24 TB (8x 3 TB) |
| Removable Hard Drives | No | Yes | Yes |
| RAID Levels Supported | None | RAID 0/1/5/10 | RAID 0/1/5/6/10/50/60 |
| Default RAID Level | – | 10 | 50 |
| Redundant Hot Swap Power Supplies | No | No | Yes |
| Dimensions | |||
| Height x Width x Length (inches) | 1.8 x 17.1 x 13.9 | 1.7 x 17.2 x 19.8 | 3.5 x 17.2 x 25.2 |
| Height x Width x Length (cm) | 4.5 x 43.3 x 35.2 | 4.3 x 43.7 x 50.3 | 8.9 x 43.7 x 68.4 |
| Weight | 13.4 lbs (6.1 kg) | 31 lbs (14.1 kg) | 52 lbs (23.6 kg) |
| Environment | |||
| AC Power Supply | 100–240V AC, 50–60 Hz, 6 Amp Max. | 100–240V AC, 60–50 Hz | 100–240V AC, 60–50 Hz |
| Power Consumption (Average) | 60 W | 93 W | 192.5 W |
| Heat Dissipation | 205 BTU/h | 456 BTU/h | 920 BTU/h |
| Operating Temperature | 32–104°F (0–40°C) | 41–95°F (5–35°C) | 41–95°F (5–35°C) |
| Storage Temperature | -13–158°F (-35–70°C) | -40–140°F (-40–60°C) | -40–140°F (-40–60°C) |
| Humidity | 5–95% non-condensing | 8– 90% non-condensing | 8–90% non-condensing |
| Operating Altitude | Up to 7,400 ft (2,250 m) | Up to 7,400 ft (2,250 m) | Up to 7,400 ft (2,250 m) |
| Compliance | |||
| Safety Certifications | FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB | FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB | FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB |
| FORTIANALYZER 2000E | FORTIANALYZER 3000E | FORTIANALYZER 3000F | |
|---|---|---|---|
| Capacity and Performance | |||
| GB/Day of Logs | 500 | 800 | 1,600 |
| Analytic Sustained Rate (logs/sec) | 7,500 | 15,000 | 35,000 |
| Collector Sustained Rate (logs/sec) | 11,250 | 50,000 | 52,500 |
| Devices/VDOMs/ADOMs (Maximum) | 2,000 | 4,000 | 4,000 |
| Hardware Specifications | |||
| Form Factor | 2 RU Rackmount | 2 RU Rackmount | 3 RU Rackmount |
| Total Interfaces | 4x GE, 2x 10GE SFP+ | 4x GE, 2x GE SFP | 4x GE, 2x 10GE SFP+ |
| Storage Capacity | 36 TB (12x 3TB) | 16 TB (8x 2 TB) | 48 TB (16x 3 TB) |
| Removable Hard Drives | Yes | Yes | Yes |
| RAID Storage Management | RAID 0/1/5/6/10/50/60 | RAID 0/1/5/6/10/50/60 | RAID 0/1/5/6/10/50/60 |
| Default RAID Level | 50 | 10 | 50 |
| Redundant Hot Swap Power Supplies | Yes | Yes | Yes |
| Dimensions | |||
| Height x Width x Length (inches) | 3.5 x 17.2 x 25.6 | 3.4 x 19 x 29.7 | 5.2 x 17.2 x 25.5 |
| Height x Width x Length (cm) | 8.9 x 43.7 x 64.8 | 8.7 x 48.2 x 75.5 | 13.2 x 43.7 x 64.8 |
| Weight | 58 lbs (26.3 kg) | 71.5 lbs (32.5 kg) | 76 lbs (34.5 kg) |
| Environment | |||
| AC Power Supply | 100–240V AC, 60–50 Hz | 100–240V AC, 50–60 Hz, 10 Amp Maximum | 100–240V AC, 60–50 Hz |
| Power Consumption (Average) | 390 W | 375.8 W | 465 W |
| Heat Dissipation | 1840 BTU/h | 1947 BTU/h | 1904 BTU/h |
| Operating Temperature | 50–95°F (10 – 35°C) | 50–95°F (10–35°C) | 50–95°F (10–35°C) |
| Storage Temperature | -40–158°F (-40–70°C) | -40–149°F (-40–65°C) | -40–158°F (-40–70°C) |
| Humidity | 8–90% non-condensing | 20–90% non-condensing | 8–90% non-condensing |
| Operating Altitude | Up to 7,400 ft (2,250 m) | Up to 7,400 ft (2,250 m) | Up to 7,400 ft (2,250 m) |
| Compliance | |||
| Safety Certifications | FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB | FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB | FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB |
| FORTIANALYZER 3500E | FORTIANALYZER 3500F | FORTIANALYZER 3900E | |||||
|---|---|---|---|---|---|---|---|
| Capacity and Performance | |||||||
| GB/Day of Logs | 3,000 | 5,000 | 4,000 | ||||
| Analytic Sustained Rate (logs/sec) | 36,000 | 60,000 | 48,000 | ||||
| Collector Sustained Rate (logs/sec) | 60,000 | 90,000 | 75,000 | ||||
| Devices/VDOMs/ADOMs (Maximum) | 10,000 | 10,000 | 10,000 | ||||
| Hardware Specifications | |||||||
| Form Factor | 4 RU Rackmount | 4 RU Rackmount | 2 RU Rackmount | ||||
| Total Interfaces | 2x GE, 2x GE SFP | 2x GE, 2x GE SFP | 2x GE, 2x 10GE SFP+ | ||||
| Storage Capacity | 24 TB (12x 2 TB – 48 TB maximum) | 72 TB (24x 3TB) | 15 TB SSD (15x 1 TB SSD) | ||||
| Removable Hard Drives | Yes | Yes | Yes | ||||
| RAID Levels Supported | RAID 0/1/5/6/10/50/60 | RAID 0/1/5/6/10/50/60 | RAID 0/1/5/6/10/50/60 | ||||
| Default RAID Level | 10 | 50 | 50 | ||||
| Redundant Hot Swap Power Supplies | Yes | Yes | Yes | ||||
| Dimensions | |||||||
| Height x Width x Length (inches) | 6.9 x 19.0 x 27.2 | 6.9 x 19.0 x 27.2 | 3.5 x 17.2 x 26.9 | ||||
| Height x Width x Length (cm) | 17.5 x 48.2 x 69.0 | 17.6 x 48.2 x 69.0 | 8.9 x 43.7 x 68.4 | ||||
| Weight | 77 lbs (34.9 kg) | 93.74 lbs (42.52Kg) | 52 lbs (23.6 kg) | ||||
| Environment | |||||||
| AC Power Supply | 100–240V AC, 50–60 Hz, 11.5 Amp Maximum | 100–240V AC, 60–50 Hz | 100–240V AC, 50–60 Hz, 11.5 Amp Maximum | ||||
| Power Consumption (Average) | 465 W for 12 HDD | 465 W | 470 W for 15 HDD | ||||
| Heat Dissipation | 1904 BTU/h | 1,904 BTU/h | 1637 BTU/h | ||||
| Operating Temperature | 32–104°F (0–40°C) | 32–104°F (0–40°C) | 50–95°F (10–35°C) | ||||
| Storage Temperature | -13–158°F (-25–70°C) | -13–158°F (-25–70°C) | -40–60°C (-40–140°F) | ||||
| Humidity | 10–90% non-condensing | 10–90% non-condensing | 5–95% non-condensing | ||||
| Operating Altitude | Up to 7,400 ft (2,250 m) | Up to 7,400 ft (2,250 m) | Up to 7,400 ft (2,250 m) | ||||
| Compliance | |||||||
| Safety Certifications | FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB | FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB | FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB | ||||
| FAZ-VM-BASE | FAZ-VM-GB1 | FAZ-VM-GB5 | FAZ-VM-GB25 | FAZ-VM-GB100 | FAZ-VM-GB500 | FAZ-VM-GB2000 | |
|---|---|---|---|---|---|---|---|
| Capacity and Performance | |||||||
| GB/Day of Logs | 1 incl.** | +1 | +5 | +25 | +100 | +500 | +2,000 |
| Storage Capacity | 200 GB | +500 GB | +3 TB | +10 TB | +24 TB | +48 TB | +100 TB |
| Devices/ADOMs/VDOMs Supported (Maximum) | 10,000 | 10,000 | 10,000 | 10,000 | 10,000 | 10,000 | 10,000 |
| Hypervisor Support | VMware ESX/ESXi 4.0/4.1/5.0/5.1/5.5/6.0, Microsoft Hyper-V 2008 R2/2012/2012 R2, Citrix XenServer 6.0+, Open Source Xen 4.1+, KVM,Amazon Web Services (AWS)) | ||||||
| Network Interface Support (Minimum / Maximum) | 1 / 4 | ||||||
| vCPUs (Minimum / Maximum) | 1 / Unlimited | ||||||
| Memory Support (Minimum / Maximum) | 1 GB / Unlimited | ||||||
** Unlimited GB/Day when deployed in collector mode
Documentation:
Download the Fortinet FortiAnalyzer Series Datasheet (PDF).
Pricing Notes:
- Pricing and product availability subject to change without notice.
Fortinet FortiAnalyzer 2000E
FortiAnalyzer-2000E
FortiAnalyzer-2000E
Centralized log&analysis appliance - 4x GE RJ45, 2x SFP+, 36TB storage, up to 500 GB/Day of Logs.
Centralized log&analysis appliance - 4x GE RJ45, 2x SFP+, 36TB storage, up to 500 GB/Day of Logs.
#FAZ-2000E
Our Price: $30,000.00
Our Price: $30,000.00
Fortinet 8x5 FortiCare Contract
*8x5 Support, Hardware Replacement, Firmware and General Upgrades, VPN, Traffic Management
8x5 FortiCare Contract for FortiAnalyzer-2000E, 1-Year
#FC-10-L02KE-311-02-12
Our Price: $4,500.00
Our Price: $4,500.00
8x5 FortiCare Contract for FortiAnalyzer-2000E, 3-Year
#FC-10-L02KE-311-02-36
Our Price: $11,813.00
Our Price: $11,813.00
8x5 FortiCare Contract for FortiAnalyzer-2000E, 5 Year
#FC-10-L02KE-311-02-60
Our Price: $19,688.00
Our Price: $19,688.00
Fortinet 24x7 FortiCare Contract
*24x7 Support, Advanced Hardware Replacement (Next Business Day), Firmware and General Upgrades, VPN, and Traffic Management
24x7 FortiCare Contract for FortiAnalyzer-2000E, 1-Year
#FC-10-L02KE-247-02-12
Our Price: $7,500.00
Our Price: $7,500.00
24x7 FortiCare Contract for FortiAnalyzer-2000E, 3-Year
#FC-10-L02KE-247-02-36
Our Price: $19,688.00
Our Price: $19,688.00
24x7 FortiCare Contract for FortiAnalyzer-2000E, 5 Year
#FC-10-L02KE-247-02-60
Our Price: $32,813.00
Our Price: $32,813.00
FortiAnalyzer-2000E Subscription
1 Year Subscription license for the FortiGuard Indicator of Compromise (IOC) for FortiAnalyzer-2000E
#FC-10-L02KE-149-02-12
Our Price: $6,000.00
Our Price: $6,000.00
3 Year Subscription license for the FortiGuard Indicator of Compromise (IOC) for FortiAnalyzer-2000E
#FC-10-L02KE-149-02-36
Our Price: $15,750.00
Our Price: $15,750.00
5 Year Subscription license for the FortiGuard Indicator of Compromise (IOC) for FortiAnalyzer-2000E
#FC-10-L02KE-149-02-60
Our Price: $26,250.00
Our Price: $26,250.00
FortiAnalyzer - Add-On Licenses: Management
License to add FortiManager capabilities for up to 20 devices (1000 series and above - hardware only)
#FAZ-MGMT20
Our Price: $6,000.00
Our Price: $6,000.00
Fortinet Accessories
AC Power Supply for FAZ-2000E, FMG-2000E, FAZ-3900E, FMG-3900E and FCH-3900E
#SP-FAZ2000E-PS
List Price: $880.00
Our Price: $748.00
List Price: $880.00
Our Price: $748.00
