Fortinet FortiBridge 3002S Bypass Appliances
Ensuring availability of network resources

Fortinet FortiBridge 3002S Bypass Appliances

Fortinet FortiBridge 3002S Series

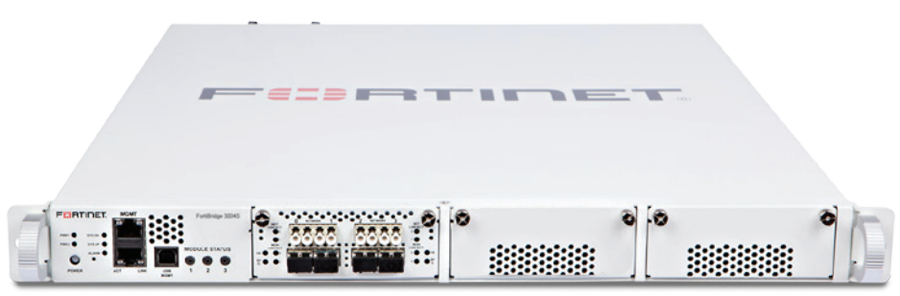

FortiBridge-3002S
Fortinet FortiBridge-3002S
- FortiBridge-3002S (Short Range), power failure bypass functionality for two(2) network segments. 4 x 10G SFP+, 4 x LC, 1 x Console Port, Dual Power Supply.
#FBG-3002S
Our Price: $24,995.00

Click here to jump to more pricing!

Overview:

The all-new FortiBridge 3000-series family of bypass appliances enables network security and visibility in scenarios that demand the highest level of network availability and uptime. FortiBridge allows fail-to-wire bypass functionality to be quickly and easily added to an existing FortiGate or other network device deployment. In the case of a hardware or software failure or any other device outage, the FortiBridge will directly bridge the WAN-to-LAN segments to ensure unimpeded network connectivity and availability around the offline device. When the FortiBridge appliance detects that functionality is restored, it can automatically revert traffic back through the FortiGate or other network device. FortiBridge appliances can also be deployed in bypass mode by default to ensure maximum network throughput during normal conditions, but re-route traffic during periods of heightened threat activity to a FortiGate or other network security device. Various FortiBridge models provide flexibility to support a range of network configurations, including support for high-speed 10 GE or 40 GE ports, short-range or long-range transceivers, and bypass functionality for up to 4 network segments.

FortiBridge Benefits

The FortiBridge product family protects network availability

  • Protects against FortiGate failures
  • Fail-to-wire ensures network connectivity
  • Monitor and control bypass status remotely
Features & Benefits
Fail-to-Wire Bypass Maximizes network uptime by automatically rerouting traffic in the event of a power outage or any other type of event that would cause an inline security device to degrade the availability of the network segment
Standalone 1 RU Appliance Enables you to add bypass functionality to any existing inline security system, including FortiGate® consolidated security systems.
Remote Configuration\ and Monitoring Enables you to monitor and control the bypass status of network segments remotely, with the ability to view mode of operation, manually switch the appliance into bypass or normal operation mode, and configure thresholds for automatic bypass fail-to-wire.

Deployment:

FortiBridge Deployment

FortiBridge Deployment

Specifications:

  FBG-3002S FBG-3002L FBG-3004S FBG-3004L
Hardware Specifications
Number of Modules 1x 10 Gbps 1x 10 Gbps 2x 10 Gbps 2x 10 Gbps
Number of Segments 2 2 4 4
10/100/1000 (Copper, RJ45) 0 0 0 0
SFP+ Interfaces (10 GE)* 4 4 8 8
LC Interfaces (10 GE) 4 4 8 8
QSFP+ Interfaces (40 GE) 0 0 0 0
MPO Connector (40 GE) 0 0 0 0
Management Interfaces (RS-232) 1 1 1 1
Console Interfaces (RJ45) 1 1 1 1
USB Interfaces 1 1 1 1
Modem 0 0 0 0
Link Protection 2x 10 Gbps segments 2x 10 Gbps segments 4x 10 Gbps segments 4x 10 Gbps segments
* 10 GE interface also capable of 1x Gbps operation
Environment
Power Consumption (Maximum) 89 W 88 W 105 W 102 W
Heat Dissipation 334 BTU/h 331 BTU/h 394 BTU/h 383 BTU/h
Power Supply 100V AC 100V AC 100V AC 100V AC
Operating Temperature 32–104°F  (0–40°C) 32–104°F  (0–40°C) 32–104°F  (0–40°C) 32–104°F  (0–40°C)
Storage Temperature -4–149°F  (-20–65°C) -4–149°F  (-20–65°C) -4–149°F  (-20–65°C) -4–149°F  (-20–65°C)
Humidity 10–90% RH non-condensing 10–90% RH non-condensing 10–90% RH non-condensing 10–90% RH non-condensing
Mean Time Between Failures (MTBF) 28 years 28  years 28 years 28 years
Compliance
Regulatory Compliance FCC Part 15 Class A, CE FCC Part 15 Class A, CE FCC Part 15 Class A, CE FCC Part 15 Class A, CE
Dimensions
Height x Width x Length (inches) 17.12 x 23 x 1.73 17.12 x 23 x 1.73 17.12 x 23 x 1.73 17.12 x 23 x 1.73
Height x Width x Length (mm) 435 x 586 x 44 435 x 586 x 44 435 x 586 x 44 435 x 586 x 44
Weight 24.03 lbs  (10.9 kg) 24.03 lbs  (10.9 kg) 25.79 lbs  (11.7 kg) 25.79 lbs  (11.7 kg)
Rack Mountable yes yes yes yes

  FBG-3041S FBG-3004SL
Hardware Specifications
Number of Modules 1x 40 Gbps 2x 10 Gbps
Number of Segments 1 4
10/100/1000 (Copper, RJ45) 0 0
SFP+ Interfaces (10 GE)* 0 8
LC Interfaces (10 GE) 0 8
QSFP+ Interfaces (40 GE) 2 0
MPO Connector (40 GE) 2 0
Management Interfaces (RS-232) 1 1
Console Interfaces (RJ45) 1 1
USB Interfaces 1 1
Modem 0 0
Link Protection 1x 40 Gbps segments 4x 10 Gbps segments
* 10 GE interface also capable of 1x Gbps operation
Environment
Power Consumption (Maximum) 90 W 102 W
Heat Dissipation 338 BTU/h 382 BTU/h
Power Supply 100V AC 100V AC
Operating Temperature 32–104°F  (0–40°C) 32–104°F  (0–40°C)
Storage Temperature -4–149°F  (-20–65°C) -4–149°F  (-20–65°C)
Humidity 10–90% RH non-condensing 10–90% RH non-condensing
Mean Time Between Failures (MTBF) 28 years 28 years
Compliance
Regulatory Compliance FCC Part 15 Class A, CE FCC Part 15 Class A, CE
Dimensions
Height x Width x Length (inches) 17.12 x 23 x 1.73 17.12 x 23 x 1.73
Height x Width x Length (mm) 435 x 586 x 44 435 x 586 x 44
Weight 24.03 lbs  (10.9 kg) 25 lbs  (11.3 kg)
Rack Mountable yes yes

Documentation:

Download the Fortinet FortiBridge 3000-Series Datasheet (.PDF)

Pricing Notes:

Fortinet FortiBridge 3002S Series
FortiBridge-3002S
Fortinet FortiBridge-3002S
- FortiBridge-3002S (Short Range), power failure bypass functionality for two(2) network segments. 4 x 10G SFP+, 4 x LC, 1 x Console Port, Dual Power Supply.
#FBG-3002S
Our Price: $24,995.00
FortiBridge-3002S 8x5 FortiCare Contracts
*8x5 Support, Hardware Replacement, Firmware and General Upgrades, VPN, Traffic Management
1 Year 8x5 FortiCare Contract for FortiBridge-3002S
#FC-10-03003-311-02-12
Our Price: $3,750.00
3 Year 8x5 FortiCare Contract for FortiBridge-3002S
#FC-10-03003-311-02-36
Our Price: $9,844.00
5 Year 8x5 FortiCare Contract for FortiBridge-3002S
#FC-10-03003-311-02-60
Our Price: $16,403.00
FortiBridge-3002S 24x7 FortiCare Contracts
*24x7 Support, Advanced Hardware Replacement (Next Business Day), Firmware and General Upgrades, VPN, and Traffic Management
1 Year 24x7 FortiCare Contract for FortiBridge-3002S
#FC-10-03003-247-02-12
Our Price: $6,249.00
3 Year 24x7 FortiCare Contract for FortiBridge-3002S
#FC-10-03003-247-02-36
Our Price: $16,404.00
5 Year 24x7 FortiCare Contract for FortiBridge-3002S
#FC-10-03003-247-02-60
Our Price: $27,338.00
