Fortinet FortiGate 100D
Integrated Security for Small and Medium Enterprises

Fortinet FortiGate 100D

Fortinet FortiGate Series
FortiGate-100D

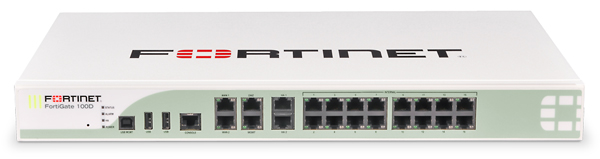

Fortinet FortiGate-100D Network Security Appliance
*20 x GE RJ45 ports (including 1 x DMZ port, 1 x Mgmt port, 2 x HA port, 16 x internal switch ports), 2 x shared media pairs (including 2 x GE RJ45, 2 x GE SFP slots), 32GB onboard storage.
#FG-100D
List Price: $2,000.00
Our Price: $1,564.00
Fortinet FortiGate-100D Hardware plus 8x5 Forticare and FortiGuard UTM Bundle
*Hardware Unit, Hardware Replacement, Firmware and General Upgrades, 8x5 Enhanced Support, UTM Services Bundle (NGFW, AV, Web Filtering, and Antispam) plus term of contract
FortiGate-100D Hardware plus 8x5 Forticare and FortiGuard UTM Bundle, 1 Year
#FG-100D-BDL
List Price: $3,100.00
Our Price: $2,422.00
FortiGate-100D Hardware plus 8x5 Forticare and FortiGuard UTM Bundle, 3 Year
#FG-100D-BDL-900-36
List Price: $4,460.00
Our Price: $3,485.00
Fortinet FortiGate-100D Hardware plus 24x7 Forticare and FortiGuard UTM Bundle
*Hardware Unit, Hardware Replacement, Firmware and General Upgrades, 24x7 Comprehensive Support, UTM Services Bundle (NGFW, AV, Web Filtering, and Antispam) plus term of contract
FortiGate-100D Hardware plus 24x7 Forticare and FortiGuard UTM Bundle, 1 Year
#FG-100D-BDL-950-12
List Price: $3,300.00
Our Price: $2,578.00
FortiGate-100D Hardware plus 24x7 Forticare and FortiGuard UTM Bundle, 3 Year
#FG-100D-BDL-950-36
List Price: $5,060.00
Our Price: $3,914.00

Click here to jump to more pricing!

Live Demo! Click here to load

Overview:

In order to comply with legislation and secure the valuable data traversing networks, small and medium enterprises and remote branch offices need a security solution that integrates multiple attack recognition technologies into a single device. With limited budgets and modest remote resources, these smaller networks desire a cost effective solution that is simple to install, connect and maintain. Just as importantly, networks are ever-expanding and need a solution that leaves them with room to grow over time.

The FortiGate-100D series is an ideal security solution for small and medium enterprises or remote branch offices of larger networks. It combines firewall, IPSec and SSL VPN, application control, intrusion prevention, anti-malware, antispam, P2P security, and web filtering into a single device.

Simple, Powerful, Secure

The FortiGate-100D series installs in minutes, automatically downloading regular updates to protect against the latest viruses, network vulnerabilities, worms, spam and phishing attacks, and malicious websites with no administrator intervention. Leveraging patented FortiASIC acceleration, the FortiGate-100D series offers marketleading performance, with high port density that facilitate network growth and expansion. Onboard storage provides local archiving of data for policy compliance and/or WAN Optimization. The WAN Optimization functionality increases network performance by reducing the amount of communication and data transmitted between applications and servers across a WAN, and/or web caching.

Meeting the Needs of Small and Medium Enterprises and Branch Offices

  • High port density delivers maximum flexibility and scalability
  • Application control coupled with identity-based policy enforcement provides complete content protection
  • Strong authentication options for policy compliance

Features & Benefits:

  • Superior hardware accelerated next generation firewall offers best-in-class price/performance ratio
  • Integrated high port density delivers maximum flexibility and scalability
  • NSS Labs Recommended NGFW and NGIPS with consolidated security delivers top-rated protection
  • Application control plus identity and device-based policy enforcement provides more granular protection
  • Intuitive management interface enables broad and deep visibility that scales from a single FortiGate to thousands

Powered by FortiASIC CP8:

  • Providing high-speed cryptography for encryption and decryption
  • Accelerates signature-based content inspection services such as AV and IPS

Content Processor

The FortiASIC CP8 content processor works outside of the direct flow of traffic, offloading critical CPU resources.

Install in Minutes with FortiExplorer

The FortiExplorer™ wizard enables you to easily and quickly set up and configure FortiGate platforms with easy-to-follow instructions. The application runs on Windows, Mac OS X desktops and laptops as well as popular mobile devices. Simply connect to the appropriate USB port on the appliance, and be fully protected in minutes.

FortiOS

Control all the security and networking capabilities across the entire FortiGate platform with one intuitive operating system. Reduce operating expenses and save time with a truly consolidated next generation security platform.

  • A truly consolidated platform with one OS for all security and networking services for all FortiGate platforms.
  • Industry-leading protection: NSS Labs Recommended, VB100, AV Comparatives and ICSA validated security and performance.
  • Control thousands of applications, block the latest exploits, and filter web traffic based on millions of real-time URL ratings.
  • Detect, contain and block advanced attacks automatically in minutes with integrated advanced threat protection framework.
  • Solve your networking needs with extensive routing, switching, WiFi, LAN and WAN capabilities.
  • Activate all the ASIC-boosted capabilities you need on the fastest firewall platform available.

Specifications:

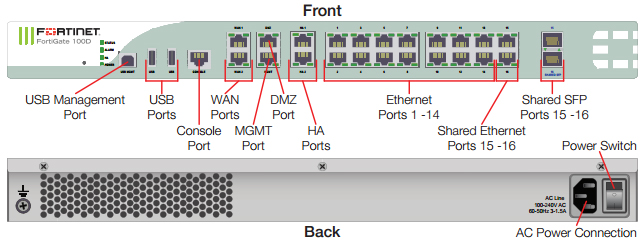

Fortinet FortiGate 100D Description

Fortinet FortiGate 100D Series Specifications
Models: 100D 140D 140D-POE 140D-POE-T1
Hardware Specifications
GbE RJ45 Ports 20 40 24 24
GbE RJ45 PoE Ports - - 16 16
GbE SFP or RJ45 Shared Ports 2 - - -
GbE SFP Ports - 2 2 2
USB Ports (Client / Server) 1/2 1/1 1/1 1/1
T1 Port - - - 1
Console Port 1
Internal Storage 32 GB
System Performance
Firewall Throughput (1518 / 512 / 64 byte UDP packets) 2,500 / 1,000 / 200 Mbps
Firewall Latency (64 byte UDP packets) 37 μs 46 μs 46 μs 46 μs
Firewall Throughput (Packets Per Second) 300 Kpps
Concurrent Sessions (TCP) 3 Million
New Sessions/Sec (TCP) 22,000
Firewall Policies 10,000
IPSec VPN Throughput (512 byte packets) 450 Mbps
Gateway-to-Gateway IPSec VPN Tunnels 2,000
Client-to-Gateway IPSec VPN Tunnels 5,000
SSL-VPN Throughput 300 Mbps
Concurrent SSL-VPN Users (Recommended Max) 300
IPS Throughput 950 Mbps
Antivirus Throughput (Proxy Based / Flow Based) 300 / 650 Mbps
Virtual Domains (Default / Max) 10 / 10
Max Number of FortiAPs (Total / Tunnel Mode) 64 / 32
Max Number of FortiTokens 1,000
Max Number of Registered FortiClients 2,000
High Availability Configurations Active / Active, Active / Passive, Clustering
Dimensions
Height x Width x Length (in) 1.75 x 17.01 x 11.73 in 1.75 x 17.01 x 12.28 in 1.75 x 17.01 x 12.28 in 1.75 x 17.01 x 12.28 in
Height x Width x Length (mm) 44 x 432 x 298 mm 44 x 432 x 312 mm 44 x 432 x 312 mm 44 x 432 x 312 mm
Form Factor Rack Mount, 1 RU
Weight 9.5 lbs (4.3 kg) 11.5 lbs (5.2 kg) 11.5 lbs (5.2 kg) 11.5 lbs (5.2 kg)
Environmental
Power Required 100 - 240 VAC, 50 - 60 Hz
Max Current 110 V / 3 A, 220 V / 1.5 A 110 V / 2 A, 220 V / 1 A 110 V / 4 A, 220 V / 2 A 110 V / 4 A, 220 V / 2 A
Total Available PoE Power Budget - - 270 W 270 W
Power Consumption (AVG / Max) 52.6 W / 63.1 W 44.8 / 58.7 W 193.4 W / 337.1 W 193.4 W / 337.1 W
Heat Dissipation 215.3 BTU/h 200.3 BTU/h 1150.2 BTU/h 1150.2 BTU/h
Operating Temperature 32 - 104 °F (0 - 40 °C)
Storage Temperature -31 - 158 °F (-35 - 70 °C)
Humidity 20 to 90% non-condensing
Compliance & Certifications
Compliance FCC Class A Part 15, UL/CUL, CE, C Tick, VCCI
Certifications ICSA Labs: Firewall, SSL VPN, IPS, Antivirus

Note: All performance values are “up to” and vary depending on system configuration. Antivirus performance is measured using 44 Kbyte HTTP files. IPS performance is measured using 1 Mbyte HTTP files.

Services & Support:

FortiGuard® Security Subscription Services deliver dynamic, automated updates for Fortinet products. The Fortinet Global Security Research Team creates these updates to ensure up-to-date protection against sophisticated threats. Subscriptions include antivirus, intrusion prevention, web filtering, antispam, vulnerability and compliance management, application control, and database security services.

FortiCare™ Support Services provide global support for all Fortinet products and services. FortiCare support enables your Fortinet products to perform optimally. Support plans start with 8x5 Enhanced Support with return and replace hardware support or 24x7 Comprehensive Support with advanced hardware replacement. Options include Premium Support, Premium RMA, and Professional Services. All hardware products include a 1-year limited hardware warranty and a 90-day limited software warranty.

FortiCare Support Services:

Available:

  • 24/7/365 FortiCare Web-based support
  • 24x7 telephone-based technical support
  • 1-year limited hardware warranty
  • Technical account management service
  • Professional services
  • 90-day limited software warranty

Documentation:

Download the Fortinet FortiGate 100D Datasheet (PDF).

Pricing Notes:

Fortinet FortiGate Series
FortiGate-100D
Fortinet FortiGate-100D Network Security Appliance
*20 x GE RJ45 ports (including 1 x DMZ port, 1 x Mgmt port, 2 x HA port, 16 x internal switch ports), 2 x shared media pairs (including 2 x GE RJ45, 2 x GE SFP slots), 32GB onboard storage.
#FG-100D
List Price: $2,000.00
Our Price: $1,564.00
Fortinet FortiGate-100D Hardware plus 8x5 Forticare and FortiGuard UTM Bundle
*Hardware Unit, Hardware Replacement, Firmware and General Upgrades, 8x5 Enhanced Support, UTM Services Bundle (NGFW, AV, Web Filtering, and Antispam) plus term of contract
FortiGate-100D Hardware plus 8x5 Forticare and FortiGuard UTM Bundle, 1 Year
#FG-100D-BDL
List Price: $3,100.00
Our Price: $2,422.00
FortiGate-100D Hardware plus 8x5 Forticare and FortiGuard UTM Bundle, 3 Year
#FG-100D-BDL-900-36
List Price: $4,460.00
Our Price: $3,485.00
FortiGate-100D Hardware plus 8x5 FortiCare and FortiGuard UTM Bundle, 5 Year
#FG-100D-BDL-900-60
List Price: $6,318.00
Our Price: $5,686.00
Fortinet FortiGate-100D Hardware plus 24x7 Forticare and FortiGuard UTM Bundle
*Hardware Unit, Hardware Replacement, Firmware and General Upgrades, 24x7 Comprehensive Support, UTM Services Bundle (NGFW, AV, Web Filtering, and Antispam) plus term of contract
FortiGate-100D Hardware plus 24x7 Forticare and FortiGuard UTM Bundle, 1 Year
#FG-100D-BDL-950-12
List Price: $3,300.00
Our Price: $2,578.00
FortiGate-100D Hardware plus 24x7 Forticare and FortiGuard UTM Bundle, 3 Year
#FG-100D-BDL-950-36
List Price: $5,060.00
Our Price: $3,914.00
FortiGate-100D Hardware plus 24x7 FortiCare and FortiGuard UTM Bundle, 5 Year
#FG-100D-BDL-950-60
List Price: $7,103.00
Our Price: $6,393.00
Fortinet FortiGate-100D Hardware plus 8x5 Forticare and FortiGuard Enterprise Bundle
FortiGate-100D Hardware plus 8x5 Forticare and FortiGuard Enterprise Bundle, 1 Year
#FG-100D-BDL-871-12
List Price: $3,600.00
Our Price: $2,815.00
FortiGate-100D Hardware plus 8x5 FortiCare and FortiGuard Enterprise Bundle, 3 Year
#FG-100D-BDL-871-36
List Price: $6,200.00
Our Price: $4,848.00
FortiGate-100D Hardware plus 8x5 FortiCare and FortiGuard Enterprise Bundle, 5 Year
#FG-100D-BDL-871-60
List Price: $8,280.00
Our Price: $7,452.00
Fortinet FortiGate-100D Hardware plus 24x7 Forticare and FortiGuard Enterprise Bundle
FortiGate-100D Hardware plus 24x7 FortiCare and FortiGuard Enterprise Bundle, 1 Year
#FG-100D-BDL-974-12
List Price: $3,800.00
Our Price: $2,972.00
FortiGate-100D Hardware plus 24x7 FortiCare and FortiGuard Enterprise Bundle, 3 Year
#FG-100D-BDL-974-36
List Price: $6,725.00
Our Price: $5,259.00
FortiGate-100D Hardware plus 24x7 FortiCare and FortiGuard Enterprise Bundle, 5 Year
#FG-100D-BDL-974-60
List Price: $9,065.00
Our Price: $8,159.00
FortiGate-100D 1 Year Hardware Bundle Upgrade
*24X7 Comprehensive Support, Advanced Hardware Replacement (Next Business Day)
FortiGate-100D 1 Year Hardware Bundle Upgrade from 8x5 to 24x7 FortiCare Contract
#FC-10-00116-274-01-12
List Price: $341.00
Our Price: $266.00
Fortinet FortiGate-100D 8x5 UTM Bundle
*8X5 Hardware Replacement (Next Business Day), Firmware and General Upgrades, 8x5 Enhanced Support, UTM Services Bundle (NGFW, AV, Web Filtering, and Antispam Services)
FortiGate-100D 1 Year UTM Bundle (8x5 FortiCare plus Application Control, IPS, AV, Botnet IP/Domain, Web Filtering and Antispam Services)
#FC-10-00116-900-02-12
Our Price: $1,099.00
FortiGate-100D 3 Year UTM Bundle (8x5 FortiCare plus Application Control, IPS, AV, Botnet IP/Domain, Web Filtering and Antispam Services)
#FC-10-00116-900-02-36
Our Price: $2,888.00
FortiGate-100D 5 Year UTM Bundle (8x5 FortiCare plus Application Control, IPS, AV, Botnet IP/Domain, Web Filtering and Antispam Services)
#FC-10-00116-900-02-60
Our Price: $4,318.00
Fortinet FortiGate-100D 24x7 UTM Bundle
*Advanced Hardware Replacement (Next Business Day), Firmware and General Upgrades, 24X7 Comprehensive Support, UTM Services Bundle (NGFW, AV, Web Filtering, and Antispam Services)
FortiGate-100D 1 Year UTM Bundle (24x7 FortiCare plus Application Control, IPS, AV, Botnet IP/Domain, Web Filtering and Antispam Services)
#FC-10-00116-950-02-12
Our Price: $1,299.00
FortiGate-100D 3 Year UTM Bundle (24x7 FortiCare plus Application Control, IPS, AV, Botnet IP/Domain, Web Filtering and Antispam Services)
#FC-10-00116-950-02-36
Our Price: $3,413.00
FortiGate-100D 5 Year UTM Bundle (24x7 FortiCare plus Application Control, IPS, AV, Botnet IP/Domain, Web Filtering and Antispam Services)
#FC-10-00116-950-02-60
Our Price: $5,103.00
Fortinet FortiGate-100D 8x5 Enterprise Bundle Subscription
FortiGate-100D Enterprise Bundle (8x5 FortiCare plus Application Control, IPS, AV, Botnet IP/Domain, Web Filtering, Antispam, FortiSandbox Cloud and Mobile Security Services), 1 Year
#FC-10-00116-871-02-12
Our Price: $1,600.00
FortiGate-100D Enterprise Bundle (8x5 FortiCare plus Application Control, IPS, AV, Botnet IP/Domain, Web Filtering, Antispam, FortiSandbox Cloud and Mobile Security Services), 3 Year
#FC-10-00116-871-02-36
Our Price: $4,200.00
FortiGate-100D Enterprise Bundle (8x5 FortiCare plus Application Control, IPS, AV, Botnet IP/Domain, Web Filtering, Antispam, FortiSandbox Cloud and Mobile Security Services), 5 Year
#FC-10-00116-871-02-60
Our Price: $6,280.00
Fortinet FortiGate-100D 24x7 Enterprise Bundle Subscription
FortiGate-100D Enterprise Bundle (24x7 FortiCare plus Application Control, IPS, AV, Botnet IP/Domain, Web Filtering, Antispam, FortiSandbox Cloud and Mobile Security Services), 1 Year
#FC-10-00116-974-02-12
Our Price: $1,800.00
FortiGate-100D Enterprise Bundle (24x7 FortiCare plus Application Control, IPS, AV, Botnet IP/Domain, Web Filtering, Antispam, FortiSandbox Cloud and Mobile Security Services), 3 Year
#FC-10-00116-974-02-36
Our Price: $4,725.00
FortiGate-100D Enterprise Bundle (24x7 FortiCare plus Application Control, IPS, AV, Botnet IP/Domain, Web Filtering, Antispam, FortiSandbox Cloud and Mobile Security Services), 5 Year
#FC-10-00116-974-02-60
Our Price: $7,065.00
Threat Protection Bundle Subscription
FortiGate-100D Threat Protection Bundle (24x7 FortiCare plus Application Control, IPS, AV and Botnet IP/Domain Services), 1 Year
#FC-10-00116-928-02-12
Our Price: $800.00
FortiGate-100D Threat Protection Bundle (24x7 FortiCare plus Application Control, IPS, AV and Botnet IP/Domain Services), 3 Year
#FC-10-00116-928-02-36
Our Price: $2,100.00
FortiGate-100D Threat Protection Bundle (24x7 FortiCare plus Application Control, IPS, AV and Botnet IP/Domain Services), 5 Year
#FC-10-00116-928-02-60
Our Price: $3,500.00
Fortinet FortiGuard Subscriptions 1-Year
FortiGuard Mobile Security (Mobile Platform AV) for FortiGate-100D, 1-Year
#FC-10-00116-122-02-12
Our Price: $400.00
FortiGuard AV Services for FortiGate-100D, 1 Year
#FC-10-00116-100-02-12
Our Price: $400.00
FortiGuard IPS Service for FortiGate-100D, 1 Year
#FC-10-00116-108-02-12
Our Price: $400.00
FortiGuard Web Filtering Service for FortiGate-100D, 1 Year
#FC-10-00116-112-02-12
Our Price: $400.00
FortiCloud Sandbox Service for FortiGate-100D, 1-Year
#FC-10-00116-123-02-12
Our Price: $400.00
FortiGuard Industrial Security Service for FortiGate-100D, 1 Year
#FC-10-00116-159-02-12
Our Price: $400.00
FortiCloud Management, Analysis and 1 Year Log Retention
FortiCloud Management, Analysis and 1 Year Log Retention for FortiGate-100D, 1 Year
#FC-10-00116-131-02-12
Our Price: $400.00
FortiCloud Management, Analysis and 1 Year Log Retention for FortiGate-100D, 3 Year
#FC-10-00116-131-02-36
Our Price: $1,050.00
FortiCloud Management, Analysis and 1 Year Log Retention for FortiGate-100D, 5 Year
#FC-10-00116-131-02-60
Our Price: $1,750.00
8x5 FortiCare Contract
*8x5 Support, Hardware Replacement, Firmware and General Upgrades, VPN, Traffic Management
1 Year 8x5 FortiCare Contract for FortiGate-100D
#FC-10-00116-311-02-12
Our Price: $299.00
3 Year 8x5 FortiCare Contract for FortiGate-100D
#FC-10-00116-311-02-36
Our Price: $786.00
5 Year 8x5 FortiCare Contract for FortiGate-100D
#FC-10-00116-311-02-60
Our Price: $1,313.00
24x7 FortiCare Contract
*24x7 Support, Advanced Hardware Replacement (Next Business Day), Firmware and General Upgrades, VPN, and Traffic Management
1 Year 24x7 FortiCare Contract for FortiGate-100D
#FC-10-00116-247-02-12
Our Price: $499.00
3 Year 24x7 FortiCare Contract for FortiGate-100D
#FC-10-00116-247-02-36
Our Price: $1,309.00
5 Year 24x7 FortiCare Contract for FortiGate-100D
#FC-10-00116-247-02-60
Our Price: $2,188.00
FortiCare 360 Contract
1 Year FortiCare 360 Contract for FortiGate-100D
Includes Health Check Reports & Audits, Premium Support and Collector Setup and Administration
#FC-10-00116-280-02-12
Our Price: $700.00
3 Year FortiCare 360 Contract for FortiGate-100D
Includes Health Check Reports & Audits, Premium Support and Collector Setup and Administration
#FC-10-00116-280-02-36
Our Price: $1,838.00
5 Year FortiCare 360 Contract for FortiGate-100D
Includes Health Check Reports & Audits, Premium Support and Collector Setup and Administration
#FC-10-00116-280-02-60
Our Price: $3,063.00
