Fortinet FortiGate 140D-POE
Integrated Security for Small and Medium Enterprises

Fortinet FortiGate 140D-POE

Fortinet FortiGate Series
FortiGate-140D-POE
Fortinet FortiGate-140D-POE Network Security Appliance
#FG-140D-POE
List Price: $2,998.00
Our Price: $2,346.00
Fortinet FortiGate-140D-POE Hardware plus 8x5 Forticare and FortiGuard UTM Bundle
*Hardware Unit, Hardware Replacement, Firmware and General Upgrades, 8x5 Enhanced Support, UTM Services Bundle (NGFW, AV, Web Filtering, and Antispam) plus term of contract
FortiGate-140D-POE Hardware plus 8x5 Forticare and FortiGuard UTM Bundle, 1 Year
#FG-140D-POE-BDL
List Price: $4,650.00
Our Price: $3,634.00
FortiGate-140D-POE Hardware plus 8x5 Forticare and FortiGuard UTM Bundle, 3 Year
#FG-140D-POE-BDL-900-36
List Price: $6,690.00
Our Price: $5,228.00
Fortinet FortiGate-140D-POE Hardware plus 24x7 Forticare and FortiGuard UTM Bundle
*Hardware Unit, Hardware Replacement, Firmware and General Upgrades, 24x7 Comprehensive Support, UTM Services Bundle (NGFW, AV, Web Filtering, and Antispam) plus term of contract
FortiGate-140D-POE Hardware plus 24x7 Forticare and FortiGuard UTM Bundle, 1 Year
#FG-140D-POE-BDL-950-12
List Price: $4,950.00
Our Price: $3,869.00
FortiGate-140D-POE Hardware plus 24x7 Forticare and FortiGuard UTM Bundle, 3 Year
#FG-140D-POE-BDL-950-36
List Price: $7,590.00
Our Price: $5,931.00

Click here to jump to more pricing!

Live Demo! Click here to load

Overview:

In order to comply with legislation and secure the valuable data traversing networks, small and medium enterprises and remote branch offices need a security solution that integrates multiple attack recognition technologies into a single device. With limited budgets and modest remote resources, these smaller networks desire a cost effective solution that is simple to install, connect and maintain. Just as importantly, networks are ever-expanding and need a solution that leaves them with room to grow over time.

The FortiGate-100D series is an ideal security solution for small and medium enterprises or remote branch offices of larger networks. It combines firewall, IPSec and SSL VPN, application control, intrusion prevention, anti-malware, antispam, P2P security, and web filtering into a single device.

Simple, Powerful, Secure

The FortiGate-100D series installs in minutes, automatically downloading regular updates to protect against the latest viruses, network vulnerabilities, worms, spam and phishing attacks, and malicious websites with no administrator intervention. Leveraging patented FortiASIC acceleration, the FortiGate-100D series offers marketleading performance, with high port density that facilitate network growth and expansion. Onboard storage provides local archiving of data for policy compliance and/or WAN Optimization. The WAN Optimization functionality increases network performance by reducing the amount of communication and data transmitted between applications and servers across a WAN, and/or web caching.

Meeting the Needs of Small and Medium Enterprises and Branch Offices

  • High port density delivers maximum flexibility and scalability
  • Application control coupled with identity-based policy enforcement provides complete content protection
  • Strong authentication options for policy compliance

Features & Benefits:


Features Benefits
Consolidated Security Architecture Better protection and lower cost of ownership than multiple point security products.
Single Pane of Glass Management Reduces complexity and decreases costs as all security functions can be managed through one console.
High Port Density Up to 42 x GbE ports facilitate flexible deployment of network segments and promotes network expansion and high availability configurations.
Power Over Ethernet Seamless integration of peripheral devices in a secure environment.

Powered by FortiASIC CP8:

  • Providing high-speed cryptography for encryption and decryption
  • Accelerates signature-based content inspection services such as AV and IPS

Content Processor

The FortiASIC CP8 content processor works outside of the direct flow of traffic, offloading critical CPU resources.

Install in Minutes with FortiExplorer

The FortiExplorer™ wizard enables you to easily and quickly set up and configure FortiGate platforms with easy-to-follow instructions. The application runs on Windows, Mac OS X desktops and laptops as well as popular mobile devices. Simply connect to the appropriate USB port on the appliance, and be fully protected in minutes.

Power up with PoE Interfaces

The FortiGate-140D-POE-POE and FortiGate-140D-POE-POE-T1 include PoE interfaces that allow you to plug in compatible wireless access points and IP phones out of the box, providing ease of deployment and lower TCO.

FortiOS — The World’s Most Advanced Security Operating System

  • Feature Select - Instantly fine-tunes the FortiGate based on desired deployment needs using feature presets. Simplifies user administration and configurations while providing flexibility for different deployment modes.
  • Contextual Visibility - Presents critical deep insights into historic or real-time network activities with data on threat details, IPs, users, devices, applications and more. Allows administrators to quickly understand threats and stop them.
  • Advanced Security - Multiple advanced technologies can be coordinated to look for and stop today’s blended, targeted or unknown attacks. Efficient packet handling improves performance while lowering latencies and reducing network complexities.

Industry Validation

The FortiGate family of physical and virtual appliances has earned more certifications than any other vendor by consistently meeting rigorous third-party standards. Our industry-leading technology provides you with air-tight security which you can safely count on.

More Protection and Better ROI

The FortiGate constantly evolves itself in its mission to provide more value for users. Extended features such as WiFi and L2 switch controller, integrated token server, endpoint control and WAN optimization add more security to organizations without incurring additional cost.

Complete and Real-time Security

Fortinet FortiGuard Subscription Services provide automated, real-time, up-to-date protection against the latest security threats. Our threat research labs are located worldwide, providing 24x7 updates when you most need it.

World-Class Technical Support and Documentation

Fortinet FortiCare support offerings provide comprehensive global support for all Fortinet products and services. You can rest assured your Fortinet security products are performing optimally and protecting your users, applications, and data around the clock.

Diagrams:

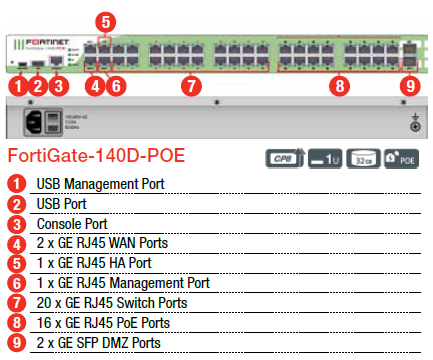

Fortinet FortiGate-140D-POE Diagram

Fortinet FortiGate-140D-POE Diagram

Fortinet FortiGate-140D-POE Diagram

Fortinet FortiGate-140D-POE Diagram

Specifications:


Fortinet FortiGate 100D Series Specifications
Models: 100D 140D 140D-POE 140D-POE-T1
Hardware Specifications
GbE RJ45 Ports 20 40 24 24
GbE RJ45 PoE Ports - - 16 16
GbE SFP or RJ45 Shared Ports 2 - - -
GbE SFP Ports - 2 2 2
USB Ports (Client / Server) 1/2 1/1 1/1 1/1
T1 Port - - - 1
Console Port 1
Internal Storage 32 GB
System Performance
Firewall Throughput (1518 / 512 / 64 byte UDP packets) 2,500 / 1,000 / 200 Mbps
Firewall Latency (64 byte UDP packets) 37 μs 46 μs 46 μs 46 μs
Firewall Throughput (Packets Per Second) 300 Kpps
Concurrent Sessions (TCP) 3 Million
New Sessions/Sec (TCP) 22,000
Firewall Policies 10,000
IPSec VPN Throughput (512 byte packets) 450 Mbps
Gateway-to-Gateway IPSec VPN Tunnels 2,000
Client-to-Gateway IPSec VPN Tunnels 5,000
SSL-VPN Throughput 300 Mbps
Concurrent SSL-VPN Users (Recommended Max) 300
IPS Throughput 950 Mbps
Antivirus Throughput (Proxy Based / Flow Based) 300 / 650 Mbps
Virtual Domains (Default / Max) 10 / 10
Max Number of FortiAPs (Total / Tunnel Mode) 64 / 32
Max Number of FortiTokens 1,000
Max Number of Registered FortiClients 2,000
High Availability Configurations Active / Active, Active / Passive, Clustering
Dimensions
Height x Width x Length (in) 1.75 x 17.01 x 11.73 in 1.75 x 17.01 x 12.28 in 1.75 x 17.01 x 12.28 in 1.75 x 17.01 x 12.28 in
Height x Width x Length (mm) 44 x 432 x 298 mm 44 x 432 x 312 mm 44 x 432 x 312 mm 44 x 432 x 312 mm
Form Factor Rack Mount, 1 RU
Weight 9.5 lbs (4.3 kg) 11.5 lbs (5.2 kg) 11.5 lbs (5.2 kg) 11.5 lbs (5.2 kg)
Environmental
Power Required 100 - 240 VAC, 50 - 60 Hz
Max Current 110 V / 3 A, 220 V / 1.5 A 110 V / 2 A, 220 V / 1 A 110 V / 4 A, 220 V / 2 A 110 V / 4 A, 220 V / 2 A
Total Available PoE Power Budget - - 270 W 270 W
Power Consumption (AVG / Max) 52.6 W / 63.1 W 44.8 / 58.7 W 193.4 W / 337.1 W 193.4 W / 337.1 W
Heat Dissipation 215.3 BTU/h 200.3 BTU/h 1150.2 BTU/h 1150.2 BTU/h
Operating Temperature 32 - 104 °F (0 - 40 °C)
Storage Temperature -31 - 158 °F (-35 - 70 °C)
Humidity 20 to 90% non-condensing
Compliance & Certifications
Compliance FCC Class A Part 15, UL/CUL, CE, C Tick, VCCI
Certifications ICSA Labs: Firewall, SSL VPN, IPS, Antivirus

Note: All performance values are “up to” and vary depending on system configuration. Antivirus performance is measured using 44 Kbyte HTTP files. IPS performance is measured using 1 Mbyte HTTP files.

Services & Support:

FortiGuard® Security Subscription Services deliver dynamic, automated updates for Fortinet products. The Fortinet Global Security Research Team creates these updates to ensure up-to-date protection against sophisticated threats. Subscriptions include antivirus, intrusion prevention, web filtering, antispam, vulnerability and compliance management, application control, and database security services.

FortiCare™ Support Services provide global support for all Fortinet products and services. FortiCare support enables your Fortinet products to perform optimally. Support plans start with 8x5 Enhanced Support with return and replace hardware support or 24x7 Comprehensive Support with advanced hardware replacement. Options include Premium Support, Premium RMA, and Professional Services. All hardware products include a 1 Year limited hardware warranty and a 90-day limited software warranty.

FortiCare Support Services:

Available:

  • 24/7/365 FortiCare Web-based support
  • 24x7 telephone-based technical support
  • 1 Year limited hardware warranty
  • Technical account management service
  • Professional services
  • 90-day limited software warranty

Documentation:

Download the Fortinet FortiGate 100D Series Datasheet (PDF).
