Fortinet FortiGate 30E
High Performance UTM for Small Networks

Fortinet FortiGate 30E

Fortinet FortiGate Series
FortiGate-30E
FortiGate-30E 5 x GE RJ45 ports (Including 1 x WAN port, 4 x Switch ports), Max managed FortiAPs (Total / Tunnel) 2 / 2 for FortiGate-30E
#FG-30E
List Price: $430.00
Our Price: $387.00
Hardware plus 8x5 FortiCare and FortiGuard UTM Bundle
*Hardware Unit, Hardware Replacement, Firmware and General Upgrades, 8x5 Enhanced Support, UTM Services Bundle (NGFW, AV, Web Filtering, and Antispam) plus term of contract
Hardware plus 1 Year 8x5 FortiCare and FortiGuard UTM Bundle for FortiGate-30E
#FG-30E-BDL
List Price: $667.00
Our Price: $600.00
Hardware plus 3 Year 8x5 FortiCare and FortiGuard UTM Bundle for FortiGate-30E
#FG-30E-BDL-900-36
List Price: $959.00
Our Price: $863.00
Hardware plus 24x7 FortiCare and FortiGuard UTM Bundle
*Hardware Unit, Hardware Replacement, Firmware and General Upgrades, 24x7 Comprehensive Support, UTM Services Bundle (NGFW, AV, Web Filtering, and Antispam) plus term of contract
Hardware plus 1 Year 24x7 FortiCare and FortiGuard UTM Bundle for FortiGate-30E
#FG-30E-BDL-950-12
List Price: $710.00
Our Price: $639.00
Hardware plus 3 Year 24x7 FortiCare and FortiGuard UTM Bundle for FortiGate-30E
#FG-30E-BDL-950-36
List Price: $1,088.00
Our Price: $979.00
Accessories
Rack Mount Kit for FortiGate 30E / 50E series
#RM-FR-T9
List Price: $149.00
Our Price: $144.00

Click here to jump to more pricing!

Live Demo! Click here to load

Overview:

The FortiGate/FortiWiFi 30E are compact, cost effective, all-in-one security appliances that deliver Fortinet’s Connected UTM. Ideal for small business, remote, customer premise equipment (CPE) and retail networks, these appliances offer the network security, connectivity and performance you need.

High Performance Network Security

Built on the foundation FortiOS 5, the FortiGate/FortiWiFi 30E series provides an integrated set of essential security technologies to protect all of your applications and data. You get advanced threat protection, including firewall, application control, advanced threat protection, IPS, VPN, and web filtering, all from one device that’s easy to deploy and manage. With our FortiGuard® security subscription services you’ll have automated protection against today’s sophisticated threats.

Advanced Features

The FortiGate/FortiWiFi 30E offers beyond the industry’s best firewall with the latest in Advanced Threat Protection including Sandboxing and anti-bot protection, Feature Select Options for simplifying configurations and deployments, and Contextual Visibility for enhanced reporting and management.

VDOMs on the FortiGate/FortiWiFi 30E let you segment networks to enable guest and employee access, or protect things like cardholder data. You get the flexibility to match your business needs and meet compliance standards like PCI and HIPAA.

Highlights

Firewall Performance IPS Performance Interfaces
950 Mbps 600 Mbps Multiple GE RJ45

Features & Benefits

  • High performance UTM — firewall, VPN, IPS, application control, web filtering, antivirus, antispam, DLP and more
  • Runs on FortiOS 5 — the most powerful security operating system in the world delivers more protection for fighting advanced threats and visibility with deep contextual information

Hardware:

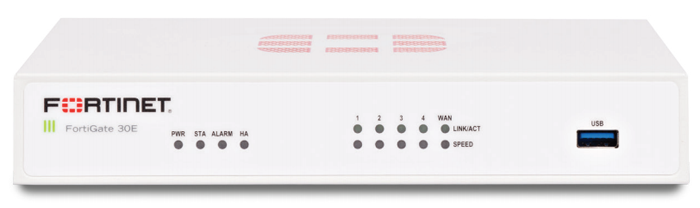

FortiGate 30E

FortiGate 30E

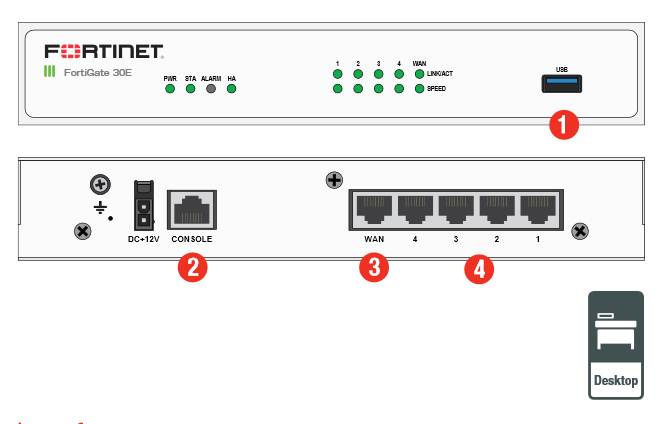

Interfaces

  1. USB Port
  2. Console RJ45
  3. 1x GE RJ45 WAN Port
  4. 4x GE RJ45 Switch Ports

Install in Minutes with FortiExplorer

The FortiExplorer wizard enables easy setup and configuration coupled with easy-to-follow instructions. FortiExplorer runs on popular mobile devices like Android and iOS. Using FortiExplorer is as simple as starting the application and connecting to the appropriate USB port on the FortiGate. By using FortiExplorer, you can be up and running and protected in minutes.

Wireless and 3G/4G WAN Extensions

The FortiGate supports external 3G/4G modems that allow additional or redundant WAN connectivity for maximum reliability. The FortiGate can also operate as a wireless access point controller to further extend wireless capabilities.

Compact and Reliable Form Factor

Designed for small environments, you can simply place the FortiGate/FortiWiFi 50/51E on a desktop. It is small, lightweight yet highly reliable with superior MTBF (Mean Time Between Failure), minimizing the chance of a network disruption

Superior Wireless Coverage

A built-in dual-band, dual-stream access point with internal antennas is integrated on the FortiWiFi 30E and provides speedy 802.11n coverage on both 2.4 GHz and 5 GHz bands. The dualband chipset addresses the PCI-DSS compliance requirement for rogue AP wireless scanning, providing maximum protection for regulated environments.

Software:

FortiOS

Control all the security and networking capabilities across the entire FortiGate platform with one intuitive operating system. Reduce operating expenses and save time with a truly consolidated next generation security platform.

FortiOS

  • A truly consolidated platform with one OS for all security and networking services for all FortiGate platforms.
  • Industry-leading protection: NSS Labs Recommended, VB100, AV Comparatives and ICSA validated security and performance.
  • Control thousands of applications, block the latest exploits, and filter web traffic based on millions of real-time URL ratings.
  • Detect, contain and block advanced attacks automatically in minutes with integrated advanced threat protection framework.
  • Solve your networking needs with extensive routing, switching, WiFi, LAN and WAN capabilities.
  • Activate all the ASIC-boosted capabilities you need on the fastest firewall platform available.

Services:

FortiGuard Security Services

FortiGuard Labs offers real-time intelligence on the threat landscape, delivering comprehensive security updates across the full range of Fortinet's solutions. Comprised of security threat researchers, engineers, and forensic specialists, the team collaborates with the world's leading threat monitoring organizations, other network and security vendors, as well as law enforcement agencies:

  • Real-time Updates — 24x7x365 Global Operations research security intelligence, distributed via Fortinet Distributed Network to all Fortinet platforms.
  • Security Research — FortiGuard Labs have discovered over 170 unique zero-day vulnerabilities to date, totaling millions of automated signature updates monthly
  • Validated Security Intelligence — Based on FortiGuard intelligence, Fortinet's network security platform is tested and validated by the world's leading third-party testing labs and customers globally.

FortiCare Support Services

Our FortiCare customer support team provides global technical support for all Fortinet products. With support staff in the Americas, Europe, Middle East and Asia, FortiCare offers services to meet the needs of enterprises of all sizes:

  • Enhanced Support — For customers who need support during local business hours only.
  • Comprehensive Support — For customers who need around- the-clock mission critical support, including advanced exchange hardware replacement.
  • Advanced Services — For global or regional customers who need an assigned Technical Account Manager, enhanced service level agreements, extended software support, priority escalation, on-site visits and more.
  • Professional Services — For customers with more complex security implementations that require architecture and design services, implementation and deployment services, operational services and more.

Enterprise Bundle

FortiGuard Labs delivers a number of security intelligence services to augment the FortiGate firewall platform. You can easily optimize the protection capabilities of your FortiGate with the FortiGuard Enterprise Bundle. This bundle contains the full set of FortiGuard security services plus FortiCare service and support offering the most flexibility and broadest range of protection all in one package.

Specifications:


FortiGate 30E FortiWiFi 30E
Hardware Specifications
GE RJ45 Switch Ports 4 4
GE RJ45 WAN Port 1 1
USB Port 1 1
Console (RJ45) 1 1
Wireless Interface 802.11 a/b/g/n
Internal Storage 16 GB
System Performance
Firewall Throughput 950 Mbps
Firewall Latency (64 byte UDP packets) 130 μs
Firewall Throughput (Packets Per Second) 180 Kpps
Concurrent Sessions (TCP) 900,000
New Sessions/Second (TCP) 15,000
Firewall Policies 5,000
IPsec VPN Throughput (512 byte packets) 75 Mbps
Gateway-to-Gateway IPsec VPN Tunnels 20
Client-to-Gateway IPsec VPN Tunnels 250
SSL-VPN Throughput 35 Mbps
Concurrent SSL-VPN Users (Recommended Maximum) 80
IPS Throughput (HTTP / Enterprise Mix) 600 / 240 Mbps
SSL Inspection Throughput 200 Mbps
NGFW Throughput 150 Mbps
CAPWAP Throughput 950 Mbps
Virtual Domains (Default / Maximum) 5 / 5
Maximum Number of FortiAPs (Total / Tunnel Mode) 2 / 2
Maximum Number of FortiTokens 20
Maximum Number of Registered FortiClients 200
High Availability Configurations Active/Active, Active/Passive, Clustering
Dimensions
Height x Width x Length (inches) 1.61 x 8.27 x 5.24
Height x Width x Length (mm) 41 x 210 x 133
Weight 1.982 lbs (0.899 kg) 2.008 lbs (0.911 kg)
Form Factor Desktop
Environment
Power Required 100–240V AC, 60–50 Hz(External DC Power Adapter)
Maximum Current 100V / 0.6A, 240V / 0.4A
Power Consumption (Average / Maximum) 13 / 15 W 19 / 16 W
Heat Dissipation 52 BTU/h 66 BTU/h
Operating Temperature 32–104°F (0–40°C)
Storage Temperature -31–158°F (-35–70°C)
Humidity 20–90% non-condensing
Operating Altitude Up to 7,400 ft (2,250 m)
Compliance
Regulatory Compliance FCC Part 15 Class B, C-Tick, VCCI, CE, UL/cUL, CB
Certifications
ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN
Note: All performance values are “up to” and vary depending on system configuration. IPsec VPN performance is based on 512 byte UDP packets using AES-256+SHA1. NGFW performance is measured with Flow AV (Full Mode), IPS and Application Control enabled, based on Enterprise Traffic Mix. SSL Inspection is measured with IPS enabled and HTTP traffic, using TLS v1.2 with AES254-SHA. CAPWAP performance is based on 1444 byte UDP packets.

Rackmount:

RM-FR-T9

RM-FR-T9

List Price: $149.00
Our Price: $144.00

The RM-FR-T9 is a rack mount kit for the FortiGate 30E, FortiGate 50E and FortiGate 51E. The rack mount kit makes your FortiGate 30E, FortiGate 50E and FortiGate 51E fit in a 19" Rack. The RM-FR-T9 has all the RJ45 connections from the rear on the front panel, including the console connection. The rack mount kit matches the color of the FortiGate.

Specifications
Color RAL 9003 Signal White
Height 1U
Dimensions
(height x width x depth)
44 x 482 x 217mm
Number of connections brought to the front 8
Console port to the front Yes
Cables 8x 0.5m cables
Couplers 8x RJ45 couplers
Supported Models - FortiGate 30E
- FortiGate 50E
- FortiGate 51E
- FortiGate 52E
What's in the box - 1x FortiRack + RJ45 couplers
- Cables
- Assembly materials
- Installation guide
EAN 8718868918291
UPC 852754006292

Documentation:

Download the Fortinet FortiGate/FortiWiFi 30E Data Sheet (PDF).
