Fortinet FortiGate 61E
Security Gateway for Distributed Branch Offices

Fortinet FortiGate-60E

Fortinet FortiGate Series

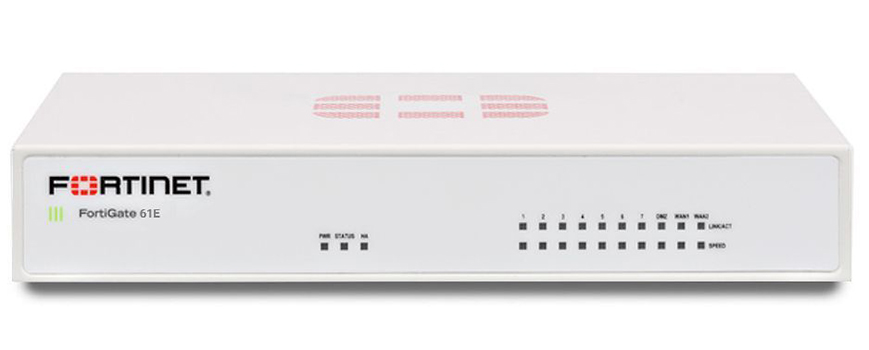

FortiGate-61E
FortiGate-61E, 10 x GE RJ45 ports (including 2 x WAN Ports, 1 x DMZ Port, 7 x Internal Ports), 128GB SSD onboard storage. Max managed FortiAPs (Total / Tunnel) 10 / 5
#FG-61E
List Price: $800.00
Our Price: $626.00
Hardware plus 8x5 Forticare and FortiGuard UTM Bundle
*Hardware Unit, Hardware Replacement, Firmware and General Upgrades, 8x5 Enhanced Support, UTM Services Bundle (NGFW, AV, Web Filtering, and Antispam) plus term of contract
Hardware plus 1 year 8x5 Forticare and FortiGuard UTM Bundle for FortiGate-61E
#FG-61E-BDL
List Price: $1240.00
Our Price: $969.00
Hardware plus 3 year 8x5 Forticare and FortiGuard UTM Bundle for FortiGate-61E
#FG-61E-BDL-900-36
List Price: $1,784.00
Our Price: $1,388.00
Hardware plus 24x7 Forticare and FortiGuard UTM Bundle
*Hardware Unit, Hardware Replacement, Firmware and General Upgrades, 24x7 Comprehensive Support, UTM Services Bundle (NGFW, AV, Web Filtering, and Antispam) plus term of contract
Hardware plus 1 year 24x7 Forticare and FortiGuard UTM Bundle for FortiGate-61E
#FG-61E-BDL-950-12
List Price: $1320.00
Our Price: $1,032.00
Hardware plus 3 year 24x7 Forticare and FortiGuard UTM Bundle for FortiGate-61E
#FG-61E-BDL-950-36
List Price: $2024.00
Our Price: $1,582.00
Accessories
Rack Mount Kit for FortiGate 60E / 61E
#RM-FR-T10
List Price: $149.00
Our Price: $144.00

Click here to jump to more pricing!

Live Demo! Click here to load

Overview:

The Fortinet Enterprise Firewall Solution delivers end-to-end network security with one platform, one network security operating system and unified policy management with a single pane of glass — for the industry’s best protection against the most advanced security threats and targeted attacks.

Security Fabric Integration

FortiGate appliances, interconnected with the Fortinet Security Fabric, form the backbone of the Fortinet Enterprise Solution.

The Fortinet Enterprise Firewall Solution

The Fortinet Enterprise Firewall Solution delivers end-to-end network security with oneplatform, one network security operating system and unified policy management with a singlepane of glass — for the industry’s best protection against the most advanced security threatsand targeted attacks.

One Enterprise Firewall Solution across the Extended Enterprise

The FortiGate family of network appliances represents the industry’s broadest range ofenterprise firewall platforms. FortiGate is based on FortiASIC, a purpose-built integratedarchitecture that provides extremely high throughput and exceptionally low latency, whiledelivering industry-leading security effectiveness and consolidation which is routinely validatedby independent real-world tests. Targeted for distributed enterprises, the FortiGate 60E seriescontains consolidated security and networking functionality, various connectivity options alongwith Industry’s best performance in a compact form factor.

Hardware:

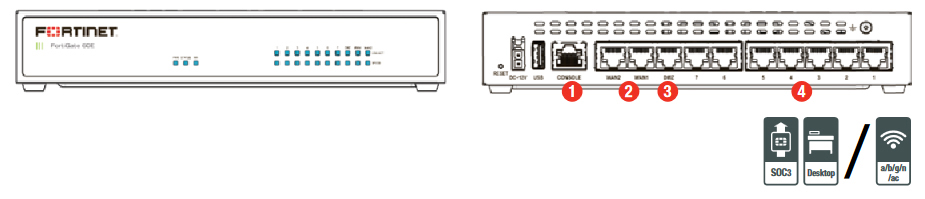

FortiGate/FortiWiFi 60E/61E

FortiGate 30E-3G4G

Interfaces

  1. Console Port
  2. 2x GE RJ45 WAN Ports
  3. 1x GE RJ45 DMZ Ports
  4. 7x GE RJ45 Internal Ports

Powered by SPU SoC3

  • Combines a RISC-based CPU with Fortinet’s proprietary FortiASIC™ content and network processors for unmatched performance
  • Simplifies appliance design and enables breakthrough performance for smaller networks
  • Supports firewall acceleration across all packet sizes for maximum throughput
  • Delivers accelerated UTM content processing for superior performance and protection
  • Accelerates VPN performance for high speed, secure remote access

3G/4G WAN Connectivity

The FortiGate/FortiWiFi 60E Series includes a USB port that allowsyou to plug in a compatible third-party 3G/4G USB modem,providing additional WAN connectivity or a redundant link formaximum reliability.

Compact and Reliable Form Factor

Designed for small environments, you can simply place the FortiGate/FortiWiFi 30E on a desktop. It is small, lightweight yet highly reliable with superior MTBF (Mean Time Between Failure), minimizing the chance of a network disruption.

Superior Wireless Coverage

A built-in dual-band, dual-stream access point with internal antennas is integrated on the FortiWiFi 30E and provides speedy 802.11n coverage on both 2.4 GHz and 5 GHz bands. The dual- band chipset addresses the PCI-DSS compliance requirement for rogue AP wireless scanning, providing maximum protection for regulated environments.

Software:

FortiOS

Control all the security and networking capabilities across the entire FortiGate platform with one intuitive operating system. Reduce operating expenses and save time with a truly consolidated next generation security platform.

FortiOS

  • A truly consolidated platform with one OS for all security and networking services for all FortiGate platforms.
  • Industry-leading protection: NSS Labs Recommended, VB100, AV Comparatives and ICSA validated security and performance.
  • Control thousands of applications, block the latest exploits, and filter web traffic based on millions of real-time URL ratings.
  • Detect, contain and block advanced attacks automatically in minutes with integrated advanced threat protection framework.
  • Solve your networking needs with extensive routing, switching, WiFi, LAN and WAN capabilities.
  • Activate all the ASIC-boosted capabilities you need on the fastest firewall platform available.

Services:

FortiGuard Security Services

FortiGuard Labs offers real-time intelligence on the threat landscape, delivering comprehensive security updates across the full range of Fortinet's solutions. Comprised of security threat researchers, engineers, and forensic specialists, the team collaborates with the world's leading threat monitoring organizations, other network and security vendors, as well as law enforcement agencies:

  • Real-time Updates — 24x7x365 Global Operations research security intelligence, distributed via Fortinet Distributed Network to all Fortinet platforms.
  • Security Research — FortiGuard Labs have discovered over 170 unique zero-day vulnerabilities to date, totaling millions of automated signature updates monthly
  • Validated Security Intelligence — Based on FortiGuard intelligence, Fortinet's network security platform is tested and validated by the world's leading third-party testing labs and customers globally.

FortiCare Support Services

Our FortiCare customer support team provides global technical support for all Fortinet products. With support staff in the Americas, Europe, Middle East and Asia, FortiCare offers services to meet the needs of enterprises of all sizes:

  • Enhanced Support — For customers who need support during local business hours only.
  • Comprehensive Support — For customers who need around- the-clock mission critical support, including advanced exchange hardware replacement.
  • Advanced Services — For global or regional customers who need an assigned Technical Account Manager, enhanced service level agreements, extended software support, priority escalation, on-site visits and more.
  • Professional Services — For customers with more complex security implementations that require architecture and design services, implementation and deployment services, operational services and more.

Enterprise Bundle

FortiGuard Labs delivers a number of security intelligence services to augment the FortiGate firewall platform. You can easily optimize the protection capabilities of your FortiGate with the FortiGuard Enterprise Bundle. This bundle contains the full set of FortiGuard security services plus FortiCare service and support offering the most flexibility and broadest range of protection all in one package.

Specifications:


FortiGate 60E FortiWiFi 60E FortiGate 61E FortiWiFi 61E
Hardware Specifications
GE RJ45 WAN Ports 2 2 2 2
GE RJ45 Internal Ports 7 7 7 7
GE RJ45 PoE Ports
GE RJ45 DMZ Ports 1 1 1 1
Wireless Interface 802.11 a/b/g/n/ac 802.11 a/b/g/n/ac
USB Ports 1 1 1 1
Console (RJ45) 1 1 1 1
Internal Storage 128 GB 128 GB
System Performance
Firewall Throughput (1518 / 512 / 64 byte UDP packets) 3 / 3 / 3 Gbps
Firewall Latency (64 byte UDP packets) 3 μs
Firewall Throughput (Packets Per Second) 4.5 Mpps
Concurrent Sessions (TCP) 1.3 Million
New Sessions/Second (TCP) 30,000
Firewall Policies 5,000
IPsec VPN Throughput (512 byte packets) 2 Gbps
Gateway-to-Gateway IPsec VPN Tunnels 200
Client-to-Gateway IPsec VPN Tunnels 500
SSL-VPN Throughput 150 Mbps
Concurrent SSL-VPN Users (Recommended Maximum) 100
IPS Throughput (HTTP / Enterprise Mix) 1 1,400 / 350 Mbps
SSL Inspection Throughput 2 340 Mbps
Application Control Throughput 3 550 Mbps
NGFW Throughput 4 250 Mbps
Threat Protection Throughput 5 180 Mbps
CAPWAP Throughput 6 1.5 Gbps
Virtual Domains (Default / Maximum) 10 / 10
Maximum Number of FortiAPs (Total / Tunnel Mode) 10 / 5
Maximum Number of FortiTokens 100
Maximum Number of Registered FortiClients 200
High Availability Configurations Active / Active, Active / Passive, Clustering
Dimensions
Height x Width x Length (inches) 1.5 x 8.5 x 6.3
Height x Width x Length (mm) 38 x 216 x 160
Weight 1.9 lbs (0.9 kg)
Form Factor Desktop
Environment
Power Required 100–240V AC, 50–60 Hz
Maximum Current 110 V / 1.5 A, 220 V / 0.75 A 110 V / 1.5 A, 220 V / 0.75 A 115V AC / 0.9A,
230V AC / 0.6A
115V AC / 0.9A,
230V AC / 0.6A
Power Consumption (Average / Maximum) 11.7 / 14 W 12.6 / 15.2 W 11.9 / 14.3 W 13 / 16 W
Heat Dissipation 40 BTU/h 52 BTU/h 49 BTU/h 55 BTU/h
Operating Temperature 32–104°F (0–40°C)
Storage Temperature -31–158°F (-35–70°C)
Humidity 20–90% non-condensing
Operating Altitude Up to 7,400 ft (2,250 m)
Compliance
FCC Part 15 Class B, C-Tick, VCCI, CE, UL/cUL, CB
Certifications
ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN
Note: All performance values are "up to" and vary depending on system configuration. IPsec VPN performance is based on 512 byte UDP packets using AES-256+SHA1.
1. IPS performance is measured using 1 Mbyte HTTP and Enterprise Traffic Mix.
2. SSL Inspection is measured with IPS enabled and HTTP traffic, using TLS v1.2 with AES256-SHA.
3. Application Control performance is measured with 64 Kbytes HTTP traffic.
4. NGFW performance is measured with IPS and Application Control enabled, based on Enterprise Traffic Mix.
5. Threat Protection performance is measured with IPS and Application Control and Malware protection enabled, based on Enterprise Traffic Mix.
6. CAPWAP performance is based on 1444 byte UDP packets.
* Maximum loading on each PoE/+ port is 30 W (802.3at).

Rackmount:

RM-FR-T10

RM-FR-T10

List Price: $149.00
Our Price: $144.00

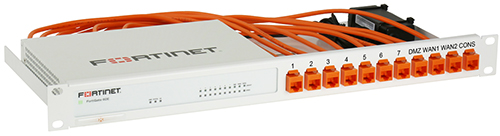

The RM-FR-T10 is a rack mount kit for the FortiGate 60E. The rack mount kit makes your FortiGate 60E fit in a 19" Rack. The RM-FR-T10 has all the RJ45 connections from the rear on the front panel, including the console connection. The rack mount kit matches the color of the FortiGate.

Specifications
Color RAL 9003 Signal White
Height 1U
Dimensions
(height x width x depth)
44 x 482 x 217mm
Number of connections brought to the front 11
Console port to the front Yes
Cables 11x 0.5m cables
Couplers 11x RJ45 couplers
Supported Models - FortiGate 60E
- FortiGate 61E
What's in the box - 1x FortiRack + RJ45 couplers
- Cables
- Assembly materials
- Installation guide
EAN 8718868918307
UPC 852754006308

Documentation:

Download the Fortine tFortiGate/FortiWiFi 60E Series Data Sheet (PDF).

Pricing Notes:

Fortinet FortiGate Series
FortiGate-61E
FortiGate-61E, 10 x GE RJ45 ports (including 2 x WAN Ports, 1 x DMZ Port, 7 x Internal Ports), 128GB SSD onboard storage. Max managed FortiAPs (Total / Tunnel) 10 / 5
#FG-61E
List Price: $800.00
Our Price: $626.00
Hardware plus 8x5 Forticare and FortiGuard UTM Bundle
*Hardware Unit, Hardware Replacement, Firmware and General Upgrades, 8x5 Enhanced Support, UTM Services Bundle (NGFW, AV, Web Filtering, and Antispam) plus term of contract
Hardware plus 1 year 8x5 Forticare and FortiGuard UTM Bundle for FortiGate-61E
#FG-61E-BDL
List Price: $1240.00
Our Price: $969.00
Hardware plus 3 year 8x5 Forticare and FortiGuard UTM Bundle for FortiGate-61E
#FG-61E-BDL-900-36
List Price: $1,784.00
Our Price: $1,388.00
Hardware plus 5 Year 8x5 Forticare and FortiGuard UTM Bundle for FortiGate-61E
#FG-61E-BDL-900-60
List Price: $2,527.00
Our Price: $2,274.00
Hardware plus 24x7 Forticare and FortiGuard UTM Bundle
*Hardware Unit, Hardware Replacement, Firmware and General Upgrades, 24x7 Comprehensive Support, UTM Services Bundle (NGFW, AV, Web Filtering, and Antispam) plus term of contract
Hardware plus 1 year 24x7 Forticare and FortiGuard UTM Bundle for FortiGate-61E
#FG-61E-BDL-950-12
List Price: $1320.00
Our Price: $1,032.00
Hardware plus 3 year 24x7 Forticare and FortiGuard UTM Bundle for FortiGate-61E
#FG-61E-BDL-950-36
List Price: $2024.00
Our Price: $1,582.00
Hardware plus 5 Year 24x7 Forticare and FortiGuard UTM Bundle for FortiGate-61E
#FG-61E-BDL-950-60
List Price: $2,841.00
Our Price: $2,557.00
Hardware plus 8x5 Forticare and FortiGuard Enterprise Bundle
Hardware plus 1 year 8x5 Forticare and FortiGuard Enterprise Bundle for FortiGate-61E
#FG-61E-BDL-871-12
List Price: $1,440.00
Our Price: $1,126.00
Hardware plus 3 year 8x5 Forticare and FortiGuard Enterprise Bundle for FortiGate-61E
#FG-61E-BDL-871-36
List Price: $2,480.00
Our Price: $1,939.00
Hardware plus 5 Year 8x5 Forticare and FortiGuard Enterprise Bundle for FortiGate-61E
#FG-61E-BDL-871-60
List Price: $3,312.00
Our Price: $2,981.00
Hardware plus 24x7 Forticare and FortiGuard Enterprise Bundle for FortiGate-61E
Hardware plus 1 year 24x7 Forticare and FortiGuard Enterprise Bundle for FortiGate-61E
#FG-61E-BDL-974-12
List Price: $1,520.00
Our Price: $1,188.00
Hardware plus 3 year 24x7 Forticare and FortiGuard Enterprise Bundle for FortiGate-61E
#FG-61E-BDL-974-36
List Price: $2,690.00
Our Price: $2,103.00
Hardware plus 5 Year 24x7 FortiCare and FortiGuard Enterprise Bundle for FortiGate-61E
#FG-61E-BDL-974-60
List Price: $3,626.00
Our Price: $3,263.00
1 Year Hardware Bundle Upgrade from 8x5 to 24x7 FortiCare Contract
*24X7 Comprehensive Support, Advanced Hardware Replacement (Next Business Day)
1 Year Hardware Bundle Upgrade from 8x5 to 24x7 FortiCare Contract for FortiGate-61E
#FC-10-0061E-274-01-12
List Price: $136.00
Our Price: $106.00
UTM Bundle (8x5 FortiCare plus Application Control, IPS, AV, Botnet IP/Domain, Web Filtering and Antispam Services)
*8X5 Hardware Replacement (Next Business Day), Firmware and General Upgrades, 8x5 Enhanced Support, UTM Services Bundle (NGFW, AV, Web Filtering, and Antispam Services)
1 Year UTM Bundle (8x5 FortiCare plus Application Control, IPS, AV, Botnet IP/Domain, Web Filtering and Antispam Services) for FortiGate-61E
#FC-10-0061E-900-02-12
Our Price: $440.00
3 Year UTM Bundle (8x5 FortiCare plus Application Control, IPS, AV, Botnet IP/Domain, Web Filtering and Antispam Services) for FortiGate-61E
#FC-10-0061E-900-02-36
Our Price: $1,155.00
5 Year UTM Bundle (8x5 FortiCare plus Application Control, IPS, AV, Botnet IP/Domain, Web Filtering and Antispam Services) for FortiGate-61E
#FC-10-0061E-900-02-60
Our Price: $1,727.00
UTM Bundle (24x7 FortiCare plus Application Control, IPS, AV, Botnet IP/Domain, Web Filtering and Antispam Services)
*Advanced Hardware Replacement (Next Business Day), Firmware and General Upgrades, 24X7 Comprehensive Support, UTM Services Bundle (NGFW, AV, Web Filtering, and Antispam Services)
1 Year UTM Bundle (24x7 FortiCare plus Application Control, IPS, AV, Botnet IP/Domain, Web Filtering and Antispam Services) for FortiGate-61E
#FC-10-0061E-950-02-12
Our Price: $520.00
3 Year UTM Bundle (24x7 FortiCare plus Application Control, IPS, AV, Botnet IP/Domain, Web Filtering and Antispam Services) for FortiGate-61E
#FC-10-0061E-950-02-36
Our Price: $1,365.00
5 Year UTM Bundle (24x7 FortiCare plus Application Control, IPS, AV, Botnet IP/Domain, Web Filtering and Antispam Services) for FortiGate-61E
#FC-10-0061E-950-02-60
Our Price: $2,041.00
Enterprise Bundle (8x5 FortiCare plus Application Control, IPS, AV, Botnet IP/Domain, Web Filtering, Antispam, FortiSandbox Cloud and Mobile Security Services) for FortiGate-61E
1 Year Enterprise Bundle (8x5 FortiCare plus Application Control, IPS, AV, Botnet IP/Domain, Web Filtering, Antispam, FortiSandbox Cloud and Mobile Security Services) for FortiGate-61E
#FC-10-0061E-871-02-12
Our Price: $640.00
3 Year Enterprise Bundle (8x5 FortiCare plus Application Control, IPS, AV, Botnet IP/Domain, Web Filtering, Antispam, FortiSandbox Cloud and Mobile Security Services)  for FortiGate-61E
#FC-10-0061E-871-02-36
Our Price: $1,680.00
5 Year Enterprise Bundle (8x5 FortiCare plus Application Control, IPS, AV, Botnet IP/Domain, Web Filtering, Antispam, FortiSandbox Cloud and Mobile Security Services) for FortiGate-61E
#FC-10-0061E-871-02-60
Our Price: $2,512.00
Enterprise Bundle (24x7 FortiCare plus Application Control, IPS, AV, Botnet IP/Domain, Web Filtering, Antispam, FortiSandbox Cloud and Mobile Security Services) for FortiGate-61E
1 Year Enterprise Bundle (24x7 FortiCare plus Application Control, IPS, AV, Botnet IP/Domain, Web Filtering, Antispam, FortiSandbox Cloud and Mobile Security Services) for FortiGate-61E
#FC-10-0061E-974-02-12
Our Price: $720.00
3 Year Enterprise Bundle (24x7 FortiCare plus Application Control, IPS, AV, Botnet IP/Domain, Web Filtering, Antispam, FortiSandbox Cloud and Mobile Security Services)  for FortiGate-61E
#FC-10-0061E-974-02-36
Our Price: $1,890.00
5 Year Enterprise Bundle (24x7 FortiCare plus Application Control, IPS, AV, Botnet IP/Domain, Web Filtering, Antispam, FortiSandbox Cloud and Mobile Security Services) for FortiGate-61E
#FC-10-0061E-974-02-60
Our Price: $2,826.00
Threat Protection Bundle Subscription
1 Year Threat Protection Bundle (24x7 FortiCare plus Application Control, IPS, AV and Botnet IP/Domain Services) for FortiGate-61E
#FC-10-0061E-928-02-12
Our Price: $320.00
3 Year Threat Protection Bundle (24x7 FortiCare plus Application Control, IPS, AV and Botnet IP/Domain Services) for FortiGate-61E
#FC-10-0061E-928-02-36
Our Price: $840.00
5 Year Threat Protection Bundle (24x7 FortiCare plus Application Control, IPS, AV and Botnet IP/Domain Services) for FortiGate-61E
#FC-10-0061E-928-02-60
Our Price: $1,400.00
FortiCloud Management, Analysis and 1 Year Log Retention
FortiCloud Management, Analysis and 1 Year Log Retention for FortiGate-61E, 1 Year
#FC-10-0061E-131-02-12
Our Price: $160.00
FortiCloud Management, Analysis and 1 Year Log Retention for FortiGate-61E, 3 Year
#FC-10-0061E-131-02-36
Our Price: $420.00
FortiCloud Management, Analysis and 1 Year Log Retention for FortiGate-61E, 5 Year
#FC-10-0061E-131-02-60
Our Price: $700.00
8x5 FortiCare Contract
*8x5 Support, Hardware Replacement, Firmware and General Upgrades, VPN, Traffic Management
1 Year 8x5 FortiCare Contract for FortiGate-61E
#FC-10-0061E-311-02-12
Our Price: $120.00
3 Year 8x5 FortiCare Contract for FortiGate-61E
#FC-10-0061E-311-02-36
Our Price: $315.00
5 Year 8x5 FortiCare Contract for FortiGate-61E
#FC-10-0061E-311-02-60
Our Price: $525.00
24x7 FortiCare Contract
*24x7 Support, Advanced Hardware Replacement (Next Business Day), Firmware and General Upgrades, VPN, and Traffic Management
1 Year 24x7 FortiCare Contract for FortiGate-61E
#FC-10-0061E-247-02-12
Our Price: $200.00
3 Year 24x7 FortiCare Contract for FortiGate-61E
#FC-10-0061E-247-02-36
Our Price: $525.00
5 Year 24x7 FortiCare Contract for FortiGate-61E
#FC-10-0061E-247-02-60
Our Price: $875.00
FortiCare 360 Contract for FortiGate-61E
1 Year FortiCare 360 Contract for FortiGate-61E
Includes Health Check Reports & Audits, Premium Support and Collector Setup and Administration
#FC-10-0061E-280-02-12
Our Price: $280.00
3 Year FortiCare 360 Contract for FortiGate-61E
Includes Health Check Reports & Audits, Premium Support and Collector Setup and Administration
#FC-10-0061E-280-02-36
Our Price: $735.00
5 Year FortiCare 360 Contract for FortiGate-61E
Includes Health Check Reports & Audits, Premium Support and Collector Setup and Administration
#FC-10-0061E-280-02-60
Our Price: $1,225.00
FortiGate-61E Services
1 Year FortiGuard Mobile Security (Mobile Platform AV) for FortiGate-61E
#FC-10-0061E-122-02-12
Our Price: $160.00
1 Year FortiCloud Sandbox Service for FortiGate-61E
#FC-10-0061E-123-02-12
Our Price: $160.00
1 Year FortiGuard AV and Botnet IP/Domain Services for FortiGate-61E
#FC-10-0061E-100-02-12
Our Price: $160.00
1 Year FortiGuard Web Filtering Service for FortiGate-61E
#FC-10-0061E-112-02-12
Our Price: $160.00
Accessories
Rack Mount Kit for FortiGate 60E / 61E
#RM-FR-T10
List Price: $149.00
Our Price: $144.00
Rack Mount Tray for all FortiGate E series Desktop Models and Backward Compatible with SP-RackTray-01
#SP-RACKTRAY-02
Our Price: $200.00
