Fortinet FortiGate 81E-POE
Enterprise-Grade Protection for Smaller Networks

Fortinet FortiGate 80E-POE

Fortinet FortiGate Series

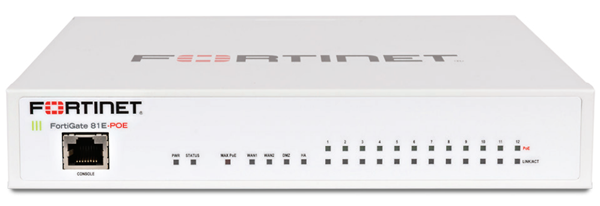

FortiGate-81E-POE
FortiGate-81E-POE Security Appliance
16 x GE RJ45 ports (including 2 x WAN ports, 1 x DMZ port, 1 HA port, 12 x PoE ports). 28GB onboard storage. Max managed FortiAPs (Total/Tunnel) 32/16
#FG-81E-POE
List Price: $1,500.00
Our Price: $1,173.00
Hardware plus 8x5 FortiCare and FortiGuard UTM Bundle
*Hardware Unit, Hardware Replacement, Firmware and General Upgrades, 8x5 Enhanced Support, UTM Services Bundle (NGFW, AV, Web Filtering, and Antispam) plus term of contract
Hardware plus 1 Year 8x5 FortiCare and FortiGuard UTM Bundle for FortiGate-81E-POE
#FG-81E-POE-BDL
List Price: $2,325.00
Our Price: $1,872.00
Hardware plus 3 Year 8x5 FortiCare and FortiGuard UTM Bundle for FortiGate-81E-POE
#FG-81E-POE-BDL-900-36
List Price: $3,345.00
Our Price: $2,693.00
Hardware plus 24x7 FortiCare and FortiGuard UTM Bundle
*Hardware Unit, Hardware Replacement, Firmware and General Upgrades, 24x7 Comprehensive Support, UTM Services Bundle (NGFW, AV, Web Filtering, and Antispam) plus term of contract
Hardware plus 1 Year 24x7 FortiCare and FortiGuard UTM Bundle for FortiGate-81E-POE
#FG-81E-POE-BDL-950-12
List Price: $2,475.00
Our Price: $1,992.00
Hardware plus 3 Year 24x7 FortiCare and FortiGuard UTM Bundle for FortiGate-81E-POE
#FG-81E-POE-BDL-950-36
List Price: $3,795.00
Our Price: $3,055.00
Accessories
Rack Mount Kit for FortiGate 80E / 81E
#RM-FR-T11
List Price: $149.00
Our Price: $144.00

Click here to jump to more pricing!

Live Demo! Click here to load

Overview:

The Fortinet Enterprise Firewall Solution

The Fortinet Enterprise Firewall Solution delivers end-to-end network security with one platform, one network security operating system and unified policy management with a single pane of glass — for the industry's best protection against the most advanced security threats and targeted attacks.

Security Fabric Integration

Hardware:

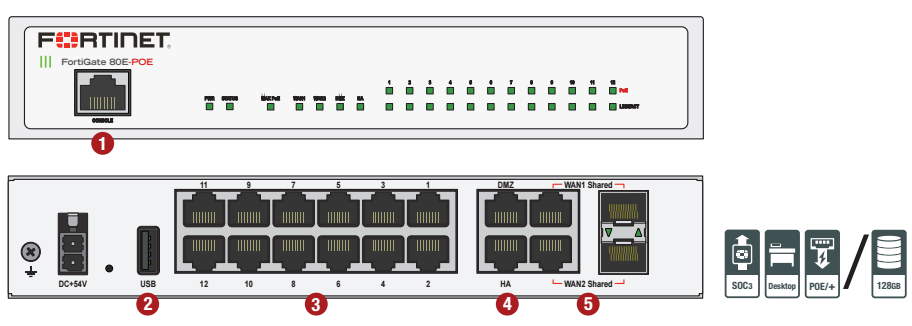

FortiGate 80E/81E-PoE

FortiGate 80E/81E-PoE

Interfaces

  1. Console Port
  2. USB Port
  3. 12x GE RJ45 PoE/+ Ports
  4. 2x GE RJ45 DMZ/HA Ports
  5. 2x GE RJ45/SFP Shared Media Pairs

Powered by FortiASIC SoC3

  • Combines a RISC-based CPU with Fortinet's proprietary Security Processing Unit (SPU) content and network processors for unmatched performance
  • Simplifies appliance design and enables breakthrough performance for smaller networks
  • Supports firewall acceleration across all packet sizes for maximum throughput
  • Delivers accelerated UTM content processing for superior performance and protection
  • Accelerates VPN performance for high speed, secure remote access

3G/4G WAN Extensions

The FortiGate 80E Series includes a USB port that allows you to plug in a compatible third-party 3G/4G USB modem, providing additional WAN connectivity or a redundant link for maximum reliability.

Compact and Reliable Form Factor

Designed for small environments, you can place it on a desktop or wall-mount it. It is small, lightweight yet highly reliable with superior MTBF (Mean Time Between Failure), minimizing the chance of a network disruption.

Software:

FortiOS

Control all the security and networking capabilities across the entire FortiGate platform with one intuitive operating system. Reduce operating expenses and save time with a truly consolidated next generation security platform.

FortiOS

  • A truly consolidated platform with one OS for all security and networking services for all FortiGate platforms.
  • Industry-leading protection: NSS Labs Recommended, VB100, AV Comparatives and ICSA validated security and performance.
  • Control thousands of applications, block the latest exploits, and filter web traffic based on millions of real-time URL ratings.
  • Detect, contain and block advanced attacks automatically in minutes with integrated advanced threat protection framework.
  • Solve your networking needs with extensive routing, switching, WiFi, LAN and WAN capabilities.
  • Activate all the ASIC-boosted capabilities you need on the fastest firewall platform available.

Services:

FortiGuard Security Services

FortiGuard Labs offers real-time intelligence on the threat landscape, delivering comprehensive security updates across the full range of Fortinet's solutions. Comprised of security threat researchers, engineers, and forensic specialists, the team collaborates with the world's leading threat monitoring organizations, other network and security vendors, as well as law enforcement agencies:

  • Real-time Updates — 24x7x365 Global Operations research security intelligence, distributed via Fortinet Distributed Network to all Fortinet platforms.
  • Security Research — FortiGuard Labs have discovered over 170 unique zero-day vulnerabilities to date, totaling millions of automated signature updates monthly
  • Validated Security Intelligence — Based on FortiGuard intelligence, Fortinet's network security platform is tested and validated by the world's leading third-party testing labs and customers globally.

FortiCare Support Services

Our FortiCare customer support team provides global technical support for all Fortinet products. With support staff in the Americas, Europe, Middle East and Asia, FortiCare offers services to meet the needs of enterprises of all sizes:

  • Enhanced Support — For customers who need support during local business hours only.
  • Comprehensive Support — For customers who need around- the-clock mission critical support, including advanced exchange hardware replacement.
  • Advanced Services — For global or regional customers who need an assigned Technical Account Manager, enhanced service level agreements, extended software support, priority escalation, on-site visits and more.
  • Professional Services — For customers with more complex security implementations that require architecture and design services, implementation and deployment services, operational services and more.

Enterprise Bundle

FortiGuard Labs delivers a number of security intelligence services to augment the FortiGate firewall platform. You can easily optimize the protection capabilities of your FortiGate with the FortiGuard Enterprise Bundle. This bundle contains the full set of FortiGuard security services plus FortiCare service and support offering the most flexibility and broadest range of protection all in one package.

Specifications:


FortiGate 80E-POE FortiGate 81E-POE
Hardware Specifications
GE RJ45/SFP Shared Media Pairs 2 2
GE RJ45 PoE/+ Ports 12 12
GE RJ45 DMZ/HA Ports 2 2
USB Ports 1 1
Console (RJ45) 1 1
Internal Storage - 128 GB
System Performance
Firewall Throughput (1518 / 512 / 64 byte UDP packets) 4 / 4 / 4 Gbps
Firewall Latency (64 byte UDP packets) 3 μs
Firewall Throughput (Packets Per Second) 6 Mpps
Concurrent Sessions (TCP) 1.3 Million
New Sessions/Second (TCP) 30,000
Firewall Policies 5,000
IPsec VPN Throughput (512 byte packets) 2.5 Gbps
Gateway-to-Gateway IPsec VPN Tunnels 200
Client-to-Gateway IPsec VPN Tunnels 1,000
SSL-VPN Throughput 200 Mbps
Concurrent SSL-VPN Users (Recommended Maximum) 200
IPS Throughput (HTTP / Enterprise Mix) 1 1.5 Gbps / 450 Mbps
SSL Inspection Throughput 2 350 Mbps
Application Control Throughput 3 800 Mbps
NGFW Throughput 4 360 Mbps
Threat Protection Throughput 5 250 Mbps
CAPWAP Throughput 6 2.2 Gbps
Virtual Domains (Default / Maximum) 10 / 10
Maximum Number of FortiAPs (Total / Tunnel Mode) 32 / 16
Maximum Number of FortiTokens 100
Maximum Number of Registered FortiClients 200
High Availability Configurations Active / Active, Active / Passive, Clustering
Dimensions
Height x Width x Length (inches) 1.65 x 8.5 x 7
Height x Width x Length (mm) 42 x 216 x 178
Weight 2.65 lbs (1.2 kg)
Form Factor Desktop
Environment
Power Required 100–240V AC, 50–60 Hz
Maximum Current 115V AC / 1.2A, 230V AC / 0.6A
Total Available PoE Power Budget* 110 W
Power Consumption (Average / Maximum) 20 / 137 W
Heat Dissipation 467.5 BTU/h
Operating Temperature 32–104°F (0–40°C)
Storage Temperature -31–158°F (-35–70°C)
Humidity 20–90% non-condensing
Operating Altitude Up to 16,404 ft (5,000 m)
Compliance
Safety FCC Part 15B, Class B, CE, RCM, VCCI, UL/cUL, CB, BSMI
Certifications
ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN
Note: All performance values are "up to" and vary depending on system configuration. IPsec VPN performance is based on 512 byte UDP packets using AES-256+SHA1.
1. IPS performance is measured using 1 Mbyte HTTP and Enterprise Traffic Mix.
2. SSL Inspection is measured with IPS enabled and HTTP traffic, using TLS v1.2 with AES256-SHA.
3. Application Control performance is measured with 64 Kbytes HTTP traffic.
4. NGFW performance is measured with IPS and Application Control enabled, based on Enterprise Traffic Mix.
5. Threat Protection performance is measured with IPS and Application Control and Malware protection enabled, based on Enterprise Traffic Mix.
6. CAPWAP performance is based on 1444 byte UDP packets.
* Maximum loading on each PoE/+ port is 30 W (802.3at).

Rackmount:

RM-FR-T11

RM-FR-T11

List Price: $149.00
Our Price: $144.00

The RM-FR-T11 gives you the ability to mount your Fortinet desktop firewalls in a 19" rack. The rack is tailored specifically for the listed models to guarantee a perfect fit. In addition, the connections are brought to the front for easy access. The power supply is fixated to prevent an accidental loss of power. Assembly will take about 5 minutes. Simply slide your Fortinet device in the kit, place the retainers, connect the supplied cables to the keystones and fix the power supply to the rack.

Other colors can be delivered on project basis

Specifications
Color RAL 9003 Signal White
Height 1U
Dimensions
(height x width x depth)
44 x 482 x 217mm
Number of connections brought to the front 16
Console port to the front Yes
Cables 16x 0.5m cables
Couplers 16x RJ45 couplers
Supported Models - FortiGate 80E
- FortiGate 81E
What's in the box - 1x FortiRack + RJ45 couplers
- Cables
- Assembly materials
- Installation guide
EAN 8718868918307
UPC 852754006308

Documentation:

Download the Fortinet FortiGate 80E Series Data Sheet (PDF).
