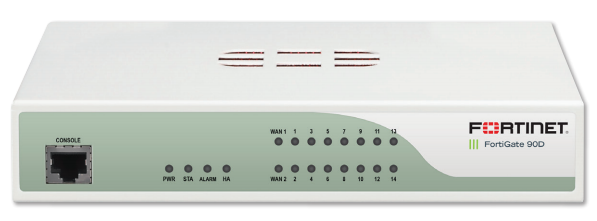

Fortinet FortiGate 90D
Enterprise-Grade Protection for Smaller Networks

Hardware:

FortiGate/FortiWiFi 90D(-POE)

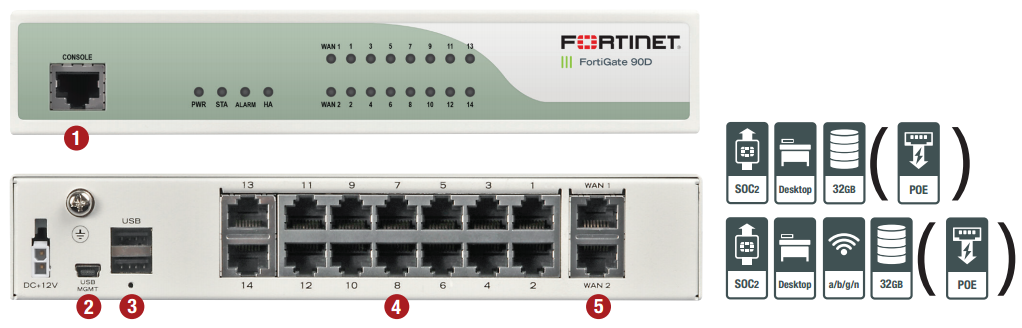

Interfaces

1. Console Port
2. USB Management Port
3. 2x USB Ports
4. 14x GE RJ45 Switch Ports / 10x GE RJ45 Switch and 4x RJ45 PoE Ports on PoE Models
5. 2x GE RJ45 WAN Ports

Powered by SPU SoC2

• Combines a RISC-based CPU with Fortinet's proprietary SPU content and network processors for unmatched performance
• Simplifies appliance design and enables breakthrough performance for smaller networks
• Supports firewall acceleration across all packet sizes for maximum throughput
• Delivers accelerated UTM content processing for superior performance and protection
• Accelerates VPN performance for high speed, secure remote access

3G/4G WAN Extensions

The FortiGate 90/91E includes USB ports that allow you to plug in a compatible third-party 3G/4G USB modem, providing additional WAN connectivity or a redundant link for maximum reliability.

Install in Minutes with FortiExplorer

The FortiExplorer wizard enables you to easily and quickly set up and configure FortiGate and FortiWiFi platforms with easy-to-follow instructions. The application runs on Windows, Mac OS X desktops and laptops as well as popular mobile devices. Simply connect to the appropriate USB port on the appliance, and be fully protected in minutes.

3G/4G WAN Connectivity

The FortiGate/FortiWiFi 90D Series includes a USB port that allows you to plug in a compatible third-party 3G/4G USB modem, providing additional WAN connectivity or a redundant link for maximum reliability.

Compact and Reliable Form Factor

Designed for small environments, you can place it on a desktop or wall-mount it. It is small, lightweight yet highly reliable with superior MTBF (Mean Time Between Failure), minimizing the chance of a network disruption.

Superior Wireless Coverage

A built-in dual-band, dual-stream access point with internal antennas is integrated on the FortiWiFi 90D and provides speedy 802.11n coverage on both 2.4 GHz and 5 GHz bands. The dualband chipset addresses the PCI-DSS compliance requirement for rogue AP wireless scanning, providing maximum protection for regulated environments.

Software:

FortiOS

Control all the security and networking capabilities across the entire FortiGate platform with one intuitive operating system. Reduce operating expenses and save time with a truly consolidated next generation security platform.

• A truly consolidated platform with one OS for all security and networking services for all FortiGate platforms.
• Industry-leading protection: NSS Labs Recommended, VB100, AV Comparatives and ICSA validated security and performance.
• Control thousands of applications, block the latest exploits, and filter web traffic based on millions of real-time URL ratings.
• Detect, contain and block advanced attacks automatically in minutes with integrated advanced threat protection framework.
• Solve your networking needs with extensive routing, switching, WiFi, LAN and WAN capabilities.
• Activate all the ASIC-boosted capabilities you need on the fastest firewall platform available.

Services:

FortiGuard Security Services

FortiGuard Labs offers real-time intelligence on the threat landscape, delivering comprehensive security updates across the full range of Fortinet's solutions. Comprised of security threat researchers, engineers, and forensic specialists, the team collaborates with the world's leading threat monitoring organizations, other network and security vendors, as well as law enforcement agencies:

• Real-time Updates — 24x7x365 Global Operations research security intelligence, distributed via Fortinet Distributed Network to all Fortinet platforms.
• Security Research — FortiGuard Labs have discovered over 170 unique zero-day vulnerabilities to date, totaling millions of automated signature updates monthly
• Validated Security Intelligence — Based on FortiGuard intelligence, Fortinet's network security platform is tested and validated by the world's leading third-party testing labs and customers globally.

FortiCare Support Services

Our FortiCare customer support team provides global technical support for all Fortinet products. With support staff in the Americas, Europe, Middle East and Asia, FortiCare offers services to meet the needs of enterprises of all sizes:

• Enhanced Support — For customers who need support during local business hours only.
• Comprehensive Support — For customers who need around- the-clock mission critical support, including advanced exchange hardware replacement.
• Advanced Services — For global or regional customers who need an assigned Technical Account Manager, enhanced service level agreements, extended software support, priority escalation, on-site visits and more.
• Professional Services — For customers with more complex security implementations that require architecture and design services, implementation and deployment services, operational services and more.

Enterprise Bundle

FortiGuard Labs delivers a number of security intelligence services to augment the FortiGate firewall platform. You can easily optimize the protection capabilities of your FortiGate with the FortiGuard Enterprise Bundle. This bundle contains the full set of FortiGuard security services plus FortiCare service and support offering the most flexibility and broadest range of protection all in one package.

Specifications:

	FortiGate 90D	FortiWiFi 90D	FortiGate 90D-POE	FortiWiFi 90D-POE
Hardware Specifications
GE RJ45 WAN Ports	2	2	2	2
GE RJ45 Switch Ports	14	14	10	10
GE RJ45 PoE Ports	–	–	4	4
FE RJ45 PoE Ports	–	–	–	–
GE SFP DMZ Slots	–	–	–	–
Wireless Interface	–	802.11 a/b/g/n	–	802.11 a/b/g/n
USB Ports (Client / Server)	1 / 2	1 / 2	1 / 2	1 / 2
Console (RJ45)			1
Internal Storage			32 GB
System Performance
Firewall Throughput (1518 / 512 / 64 byte UDP packets)	3.5 / 3.5 / 3.5 Gbps
Firewall Latency (64 byte UDP packets)	4 μs
Firewall Throughput (Packets Per Second)	5.3 Mpps
Concurrent Sessions (TCP)	2 Million
New Sessions/Second (TCP)	4,000
Firewall Policies	5,000
IPsec VPN Throughput (512 byte packets)	1 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	200
Client-to-Gateway IPsec VPN Tunnels	1,000
SSL-VPN Throughput	35 Mbps
Concurrent SSL-VPN Users (Recommended Maximum)	200
IPS Throughput (HTTP / Enterprise Mix) 1	275 / 41 Mbps
SSL Inspection Throughput 2	35 Mbps
Application Control Throughput 3	60 Mbps
NGFW Throughput 4	25 Mbps
Threat Protection Throughput 5	22.5 Mbps
CAPWAP Throughput 6	260 Mbps
Virtual Domains (Default / Maximum)	10 / 10
Maximum Number of FortiAPs (Total / Tunnel Mode)	32 / 16
Maximum Number of FortiTokens	100
Maximum Number of Registered FortiClients	200
High Availability Configurations	Active / Active, Active / Passive, Clustering
Dimensions
Height x Width x Length (inches)	1.72 x 8.5 x 8.78	1.72 x 9.2 x 8.78	1.72 x 8.5 x 8.78	1.72 x 9.2 x 8.78
Height x Width x Length (mm)	44 x 216 x 223	44 x 234 x 223	44 x 216 x 223	44 x 234 x 223
Weight	3.5 lbs (1.6 kg)	3.5 lbs (1.6 kg)	3.5 lbs (1.6 kg)	3.5 lbs (1.6 kg)
Form Factor	Desktop	Desktop	Desktop	Desktop
Environment
Power Required	100–240V AC, 50–60 Hz
Maximum Current	110 V / 1.5 A, 220 V / 0.75 A	110 V / 1.5 A, 220 V / 0.75 A	110 V / 2 A, 220 V / 1 A	110 V / 2 A, 220 V / 1 A
Total Available PoE Power Budget*	–	–	61.6 W	61.6 W
Power Consumption (Average / Maximum)	18 / 22 W	21 / 25 W	59 / 89 W	60 / 90 W
Heat Dissipation	74 BTU/h	85 BTU/h	303 BTU/h	307 BTU/h
Operating Temperature	32–104°F (0–40°C)
Storage Temperature	-31–158°F (-35–70°C)
Humidity	40–90% non-condensing
Operating Altitude	Up to 7,400 ft (2,250 m)
Compliance
Safety	FCC Part 15 Class B/A, C-Tick, VCCI, CE, UL/cUL, CB
Certifications
	ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6

Note: All performance values are "up to" and vary depending on system configuration. IPsec VPN performance is based on 512 byte UDP packets using AES-256+SHA1.
1. IPS performance is measured using 1 Mbyte HTTP and Enterprise Traffic Mix.
2. SSL Inspection is measured with IPS enabled and HTTP traffic, using TLS v1.2 with AES256-SHA.
3. Application Control performance is measured with 64 Kbytes HTTP traffic.
4. NGFW performance is measured with IPS and Application Control enabled, based on Enterprise Traffic Mix.
5. Threat Protection performance is measured with IPS and Application Control and Malware protection enabled, based on Enterprise Traffic Mix.
6. CAPWAP performance is based on 1444 byte UDP packets.
* Maximum loading on each PoE port is 15.4 W (802.3af)

Rackmount:

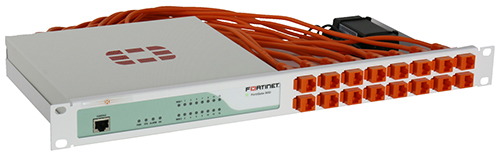

The RM-FR-T7 is a rack mount kit for the FortiGate 70D, the second generation of the FortiGate 90D, the 92D, 90E and 91E.. The rack mount kit makes your FortiGate 70D, FortiGate 90D, FortiGate 92D, FortiGate 90E and FortiGate 91E fit in a 19" Rack. The RM-FR-T7 has all the RJ45 connections from the rear on the front panel, including the console connection. The rack mount kit matches the color of the FortiGate: RAL 9003 (white).

Specifications
Color	RAL 9003 Signal White
Height	1U
Dimensions (height x width x depth)	44 x 482 x 217mm
Number of connections brought to the front	16
Console port to the front	Yes
Cables	16x 0.5m cables
Couplers	16x RJ45 couplers
Supported Models	- FortiGate 70D - FortiGate 90D - FortiGate 92D - FortiGate 90E - FortiGate 91E
What's in the box	- 1x FortiRack + RJ45 couplers - Cables - Assembly materials - Installation guide
EAN	8718868918024
UPC	852754006025

Documentation:

Download the Fortinet FortiGate and FortiWiFi 90D Series Datasheet (PDF).
