Fortinet FortiGate-98D-POE
Enterprise-Grade Protection for Distributed Network Locations

Fortinet FortiGate-98D-POE

Fortinet FortiGate Series
FortiGate-98D-POE

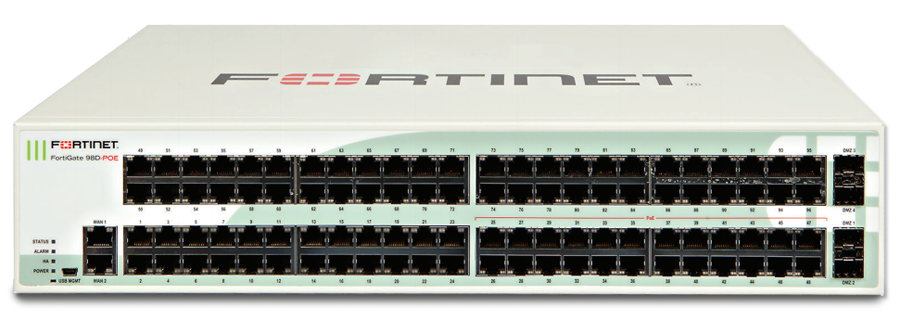

Fortinet FortiGate-98D-POE Network Security Appliance
#FG-98D-POE
Our Price: $3,498.00
Our Price: $2,735.00
FortiGate-98D-POE Hardware plus 8x5 Forticare and FortiGuard UTM Bundle
*Hardware Unit, Hardware Replacement, Firmware and General Upgrades, 8x5 Enhanced Support, UTM Services Bundle (NGFW, AV, Web Filtering, and Antispam) plus term of contract
FortiGate-98D-POE Hardware plus 8x5 Forticare and FortiGuard UTM Bundle, 1 Year
#FG-98D-POE-BDL
Our Price: $5,422.00
Our Price: $4,240.00
FortiGate-98D-POE Hardware plus 8x5 Forticare and FortiGuard UTM Bundle, 3 Year
#FG-98D-POE-BDL-900-36
List Price: $7,801.00
Our Price: $6,100.00
FortiGate-98D-POE Hardware plus 24x7 Forticare and FortiGuard UTM Bundle
*Hardware Unit, Hardware Replacement, Firmware and General Upgrades, 24x7 Comprehensive Support, UTM Services Bundle (NGFW, AV, Web Filtering, and Antispam) plus term of contract
FortiGate-98D-POE Hardware plus 24x7 Forticare and FortiGuard UTM Bundle, 1 Year
#FG-98D-POE-BDL-950-12
List Price: $5,772.00
Our Price: $4,513.00
FortiGate-98D-POE Hardware plus 24x7 Forticare and FortiGuard UTM Bundle, 3 Year
#FG-98D-POE-BDL-950-36
List Price: $8,850.00
Our Price: $6,920.00

Click here to jump to more pricing!

Live Demo! Click here to load

Overview:

The FortiGate 94D-POE and 98D-POE are high port density, all-in-one security appliances that deliver Fortinet’s Connected UTM. Ideal for remote, customer premise equipment (CPE) and retail networks, these FortiGates offer the network security, connectivity, and performance you need at a single low per-device price.

Advanced Protection and Wireless Connectivity

You get advanced threat protection, including firewall, application control, advanced threat protection, IPS, VPN, and web filtering, all from one device that’s easy to deploy and manage. With its comprehensive management console, remote provisioning and wide range of connectivity options you have an easy-to-deploy, easy-to-manage solution that’s great for a centrally managed infrastructure.

You’ll appreciate features like WAN Optimization, Data Archiving and VDOMs for your distributed networks. VDOMs on the FortiGate let you segment networks to enable guest and employee access, or protect things like cardholder data to meet compliance standards like PCI and HIPAA.

Built on the foundation of the FortiASIC System on a Chip 2 (SoC2) and FortiOS 5, the FortiGate provides an integrated set of essential security technologies to protect all of your applications and data. You get the industry’s best firewall plus the latest in Advanced Threat Protection, Intrusion Protection, Web-filtering and many new features like Sandboxing, Feature Select Options for simplifying configurations and deployments, and Contextual Visibility for enhanced reporting and management.

Features & Benefits

  • 3.5 Gbps throughput performance delivers fast network response
  • Integrated switch and PoE simplify your network infrastructure
  • Multiple PoE interfaces to support IP phones, access points or cameras
  • Runs on FortiOS 5 — the most powerful security operating system in the world delivers more security to fight advanced threats, more control to secure mobile devices, and more intelligence to build secure policies

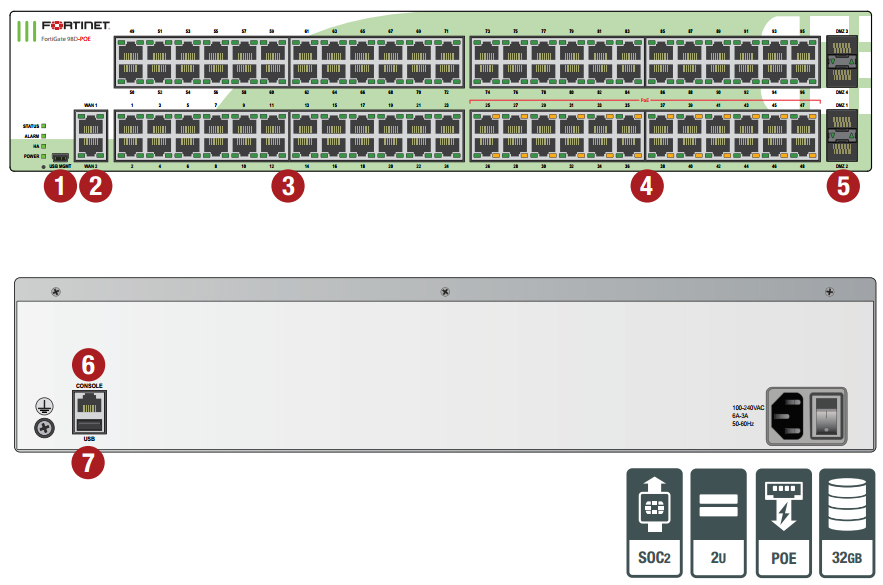

Hardware:

FortiGate 98D-POE

Interfaces

  1. USB Management Port
  2. 2x GE RJ45 WAN Ports
  3. 72x GE RJ45 Switch Ports
  4. 24x FE RJ45 PoE Ports
  5. 4x GE SFP DMZ Slots
  6. Console Port
  7. USB Port

Powered by SPU SoC2

  • Combines a RISC-based CPU with Fortinet’s proprietary SPU content and network processors for unmatched performance
  • Simplifies appliance design and enables breakthrough performance for smaller networks
  • Supports firewall acceleration across all packet sizes for maximum throughput
  • Delivers accelerated UTM content processing for superior performance and protection
  • Accelerates VPN performance for high speed, secure remote access

Install in Minutes with FortiExplorer

The FortiExplorer wizard enables you to easily and quickly set up and configure FortiGate and FortiWiFi platforms with easy-to-follow instructions. The application runs on Windows, Mac OS X desktops and laptops as well as popular mobile devices. Simply connect to the appropriate USB port on the appliance, and be fully protected in minutes.

3G/4G WAN Connectivity

The FortiGate/FortiWiFi 90D Series includes a USB port that allows you to plug in a compatible third-party 3G/4G USB modem, providing additional WAN connectivity or a redundant link for maximum reliability.

Software:

FortiOS

Control all the security and networking capabilities across the entire FortiGate platform with one intuitive operating system. Reduce operating expenses and save time with a truly consolidated next generation security platform.

FortiOS

  • A truly consolidated platform with one OS for all security and networking services for all FortiGate platforms.
  • Industry-leading protection: NSS Labs Recommended, VB100, AV Comparatives and ICSA validated security and performance.
  • Control thousands of applications, block the latest exploits, and filter web traffic based on millions of real-time URL ratings.
  • Detect, contain and block advanced attacks automatically in minutes with integrated advanced threat protection framework.
  • Solve your networking needs with extensive routing, switching, WiFi, LAN and WAN capabilities.
  • Activate all the ASIC-boosted capabilities you need on the fastest firewall platform available.

Services:

FortiGuard Security Services

FortiGuard Labs offers real-time intelligence on the threat landscape, delivering comprehensive security updates across the full range of Fortinet's solutions. Comprised of security threat researchers, engineers, and forensic specialists, the team collaborates with the world's leading threat monitoring organizations, other network and security vendors, as well as law enforcement agencies:

  • Real-time Updates — 24x7x365 Global Operations research security intelligence, distributed via Fortinet Distributed Network to all Fortinet platforms.
  • Security Research — FortiGuard Labs have discovered over 170 unique zero-day vulnerabilities to date, totaling millions of automated signature updates monthly
  • Validated Security Intelligence — Based on FortiGuard intelligence, Fortinet's network security platform is tested and validated by the world's leading third-party testing labs and customers globally.

FortiCare Support Services

Our FortiCare customer support team provides global technical support for all Fortinet products. With support staff in the Americas, Europe, Middle East and Asia, FortiCare offers services to meet the needs of enterprises of all sizes:

  • Enhanced Support — For customers who need support during local business hours only.
  • Comprehensive Support — For customers who need around- the-clock mission critical support, including advanced exchange hardware replacement.
  • Advanced Services — For global or regional customers who need an assigned Technical Account Manager, enhanced service level agreements, extended software support, priority escalation, on-site visits and more.
  • Professional Services — For customers with more complex security implementations that require architecture and design services, implementation and deployment services, operational services and more.

Enterprise Bundle

FortiGuard Labs delivers a number of security intelligence services to augment the FortiGate firewall platform. You can easily optimize the protection capabilities of your FortiGate with the FortiGuard Enterprise Bundle. This bundle contains the full set of FortiGuard security services plus FortiCare service and support offering the most flexibility and broadest range of protection all in one package.

Specifications:


FortiGate Model FortiGate 94D-POE FortiGate 98D-POE
Hardware Specifications
GE RJ45 WAN Ports 2 2
GE RJ45 Switch Ports 24 72
FE RJ45 PoE Ports 24 24
GE SFP DMZ Slots 2 4
Included Transceivers 0 0
USB Ports (Client / Server) 1 / 1 1 / 1
Console (RJ45) 1 1
Internal Storage 32 GB 32 GB
System Performance
Firewall Throughput (1518 / 512 / 64 byte UDP packets) 3.5 / 3.5 / 3.5 Gbps
Firewall Latency (64 byte UDP packets) 4 μs
Firewall Throughput (Packets Per Second) 5.3 Mpps
Concurrent Sessions (TCP) 2 Million
New Sessions/Second (TCP) 4,000
Firewall Policies 5,000
IPsec VPN Throughput (512 byte packets) 1 Gbps
Gateway-to-Gateway IPsec VPN Tunnels 200
Client-to-Gateway IPsec VPN Tunnels 1,000
SSL-VPN Throughput 35 Mbps
Concurrent SSL-VPN Users (Recommended Maximum) 200
IPS Throughput (HTTP / Enterprise Mix) 1 275 / 41 Mbps
SSL Inspection Throughput 2 35 Mbps
Application Control Throughput 3 34 Mbps
NGFW Throughput 4 25 Mbps
Threat Protection Throughput 5 22.5 Mbps
CAPWAP Throughput 6 260 Mbps
Virtual Domains (Default / Maximum) 10 / 10
Maximum Number of FortiAPs (Total / Tunnel Mode) 32 / 16
Maximum Number of FortiTokens 100
Maximum Number of Registered FortiClients 200
High Availability Configurations Active / Active, Active / Passive, Clustering
Dimensions
Height x Width x Length (inches) 1.72 x 17 x 10.51 3.48 x 11.56 x 17.20
Height x Width x Length (mm) 44 x 432 x 277 88.5 x 293.6 x 437
Form Factor 1 RU 2 RU
Weight 10.6 lbs (4.8 kg) 14.8 lbs (6.7 kg)
Environment
Power Required 110–240V AC, 50–60 Hz 110–240V AC, 50–60 Hz
Maximum Current 110 V / 5.4 A, 220 V / 2.9 A 110 V / 6 A, 220 V / 3 A
Total Available PoE Power Budget* 200 W 200 W
Power Consumption (Average / Maximum) 156 / 256 W 163 / 278W
Heat Dissipation 874 BTU/h 949 BUT/h
Operating Temperature 32–104°F (0–40°C)
Storage Temperature -31–158°F (-35–70°C)
Humidity 20–90% non-condensing
Operating Altitude Up to 7,400 ft (2,250 m)
Compliance
FCC Part 15 Class B/A, C-Tick, VCCI, CE, UL/cUL, CB
Certifications
ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN
Note: All performance values are "up to" and vary depending on system configuration. IPsec VPN performance is based on 512 byte UDP packets using AES-256+SHA1.
1. IPS performance is measured using 1 Mbyte HTTP and Enterprise Traffic Mix.
2. SSL Inspection is measured with IPS enabled and HTTP traffic, using TLS v1.2 with AES256-SHA.
3. Application Control performance is measured with 64 Kbytes HTTP traffic.
4. NGFW performance is measured with IPS and Application Control enabled, based on Enterprise Traffic Mix.
5. Threat Protection performance is measured with IPS and Application Control and Malware protection enabled, based on Enterprise Traffic Mix.
6. CAPWAP performance is based on 1444 byte UDP packets.

Documentation:

Download the Fortinet FortiGate 94D-POE and 98D-POE Datasheet (PDF).
