Fortinet FortiHypervisor 90E
Fortinet Hybrid Virtual Appliance

Fortinet FortiHypervisor 90E

Fortinet FortiHypervisor Series

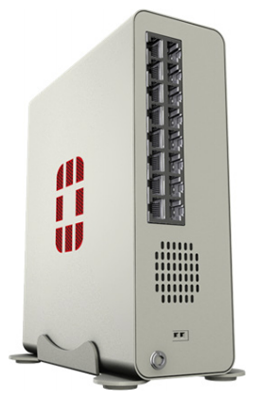

FortiHypervisor-90E
FortiHypervisor-90E Hybrid Virtual Appliance
16 x GE RJ45 ports (2 x Mgmt/HA ports, 14 x switch ports), 1 dual-core CPU, 8GB RAM, 1TB internal storage
#FHV-90E
List Price: $1,700.00
Our Price: $1,329.00

Click here to jump to more pricing!

Overview:

Enterprises need the flexibility to customize services according to their unique business needs and deploy new services quickly while keeping costs under control. Today’s traditional branch infrastructures with multiple dedicated CPE hardware make it challenging and costly to deploy custom services fast or bring a new branch online. Our hybrid virtual appliance simplifies and accelerates deployment of customized services on demand, with support for both universal CPE and cloud-based hosting models.

  • FortiHypervisor Growing Eco-System
    Supports the widest Fortinet and thirdparty VNF and VM eco-system to enable rapid service delivery at reduce capex for enterprises. Several SD-WAN and Orchestration security fabric partners are validated.
  • Purpose-built Hybrid Virtual Appliances
    Powerful Intel processer combined with SPU hardware acceleration delivers the high security performance. Ample storage and memory produce excellent compute and network performance.

Today, the ability to quickly deploy new branch services is hampered by the complexity and costs involved in bringing a new branch office or service online. Managed service providers (MSPs) find it challenging to maintain and upgrade multiple on-premises equipment for their enterprise customers. The operational complexity of managing multiple on-premises equipment can cause significant delays in time to deploy and market new services, reducing profitability.

Enterprises need the flexibility to adapt their branch offices to their changing business needs in a secure and fast manner. They need the ability to turn up new services on demand from a single platform without the cost and complexity of deploying and managing additional devices, expertise which most branch personnel do not have.

Network Function Virtualization (NFV) enables MSPs to deploy network services as virtualized functions that are decoupled from hardware and chained together, eliminating the need for multiple dedicated CPE. NFV centralizes and automates key operational processes such as service creation and provisioning, accelerating service delivery. NFV also opens the door to upsell additional services to create differentiation. Cloud-based service orchestration via NFV platforms reduces on-site provisioning, lowers costs and accelerates service delivery.

Hardware Accelerated Hybrid Virtual Appliance

FortiHypervisor is making the promise of rapid service delivery a reality for enterprises and MSPs. Built to deliver virtualized services as virtual network functions (VNFs), FortiHypervisor consolidates advanced networking and security services on a single device, eliminating the need for multiple CPE while enabling on-demand service delivery. Both a pure software instance for generic x86 platforms and a FortiGate hardware-based hybrid appliance are available.

A powerful Intel processor combined with FortiASIC hardware acceleration delivers the high security performance that customers have come to expect from Fortinet. Ample storage and memory produce excellent compute, network and security performance.

Features:

Features & Benefits

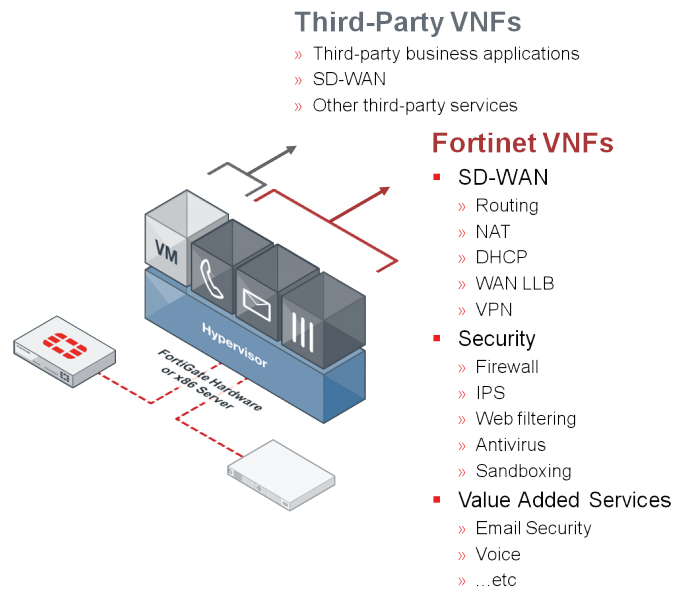

  • KVM hypervisor-based appliance for customizable on-demand service delivery
  • Consolidated networking, security and SD-WAN on a single device
  • Choice of pure x86 and hardware accelerated approaches for different deployment needs
  • Flexibility to deploy Fortinet and third-party VNFs
  • Fortinet VNFs include NGFW, IPS, Web Filtering, Antivirus, Antispam, VPN, NAT, DHCP, routing and SD-WAN
  • Centralized service orchestration and provisioning by SDN/NFV
  • Multi-tenancy for economical hosting in the cloud

NFV Architecture Benefits

  • Software is decoupled from hardware
  • Multiple services can be deployed on the same hardware
  • Services are deployed as VNFs that are chained together
  • Service creation and provisioning are centralized and automated
  • New services can be added quickly
  • Capex and Opex are reduced

Deployment:

FortiHypervisor is available as a hybrid CPE running on FortiGate hardware, and a virtual CPE software instance that can be deployed on any generic x86 platform. FortiHypervisor supports the following on-premises and cloud-hosted use cases.

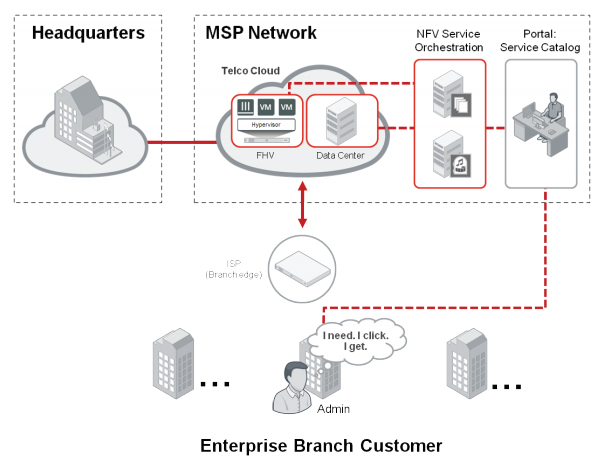

MSP Hosted CPE (cloud)

  • MSP cloud-hosted CPE deployment model
  • Centralized service orchestration and provisioning by MSP via third-party SDN/NFV
  • Can run Fortinet and third-party VNFs
  • FortiGate VM available as VNF
  • Multi-tenancy (customer separation) for economical hosting
  • FortiGate hardware with FortiASIC acceleration and low latency

MSP Hosted CPE (cloud)

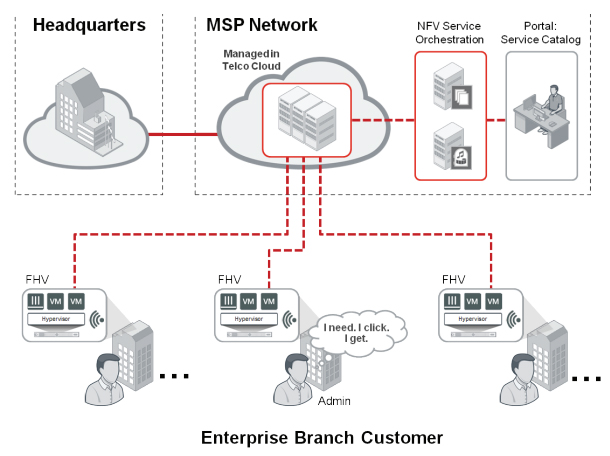

On-premises MSP CPE

  • On-premises universal CPE deployment model
  • Centralized service orchestration and provisioning by MSP via third-party SDN/NFV
  • Can run Fortinet and third-party VNFs
  • FortiGate VM available as VNF
  • FortiGate hardware with optional FortiASIC acceleration
  • FortiExtender 3G/4G backup
  • SD-WAN service

On-premises MSP CPE

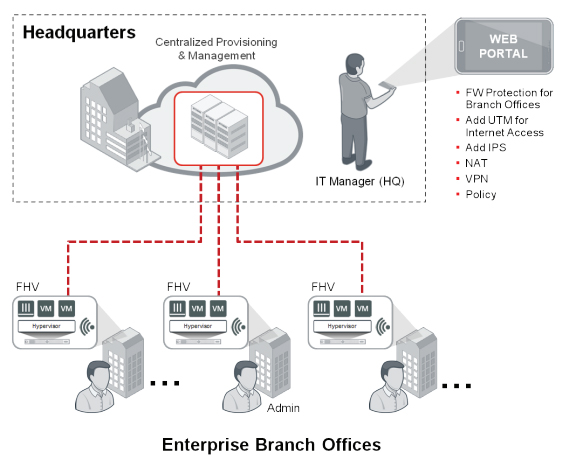

Enterprise "branch in a box"

  • Very large enterprise, distributed retail solution
  • Single CPE can run multiple Fortinet and third-party services
  • FortiGate VM available as VNF
  • FortiGate hardware with optional FortiASIC acceleration
  • Centralized service provisioning and management
  • FortiExtender 3G/4G backup
  • SD-WAN service

Enterprise "branch in a box"

Specifications:

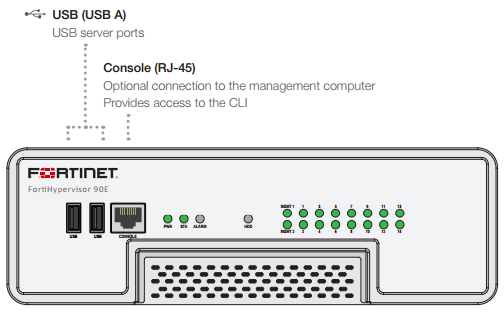

FortiHypervisor 90E Front View

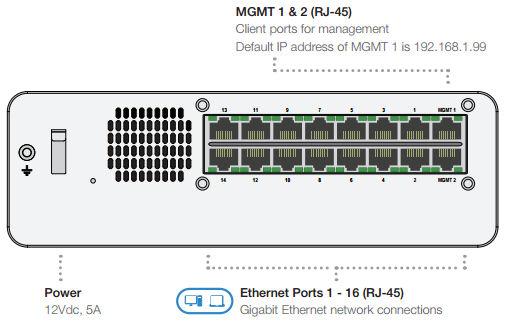

FortiHypervisor 90E Rear View

FortiHypervisor 90E FortiHypervisor 500D FortiHypervisor 2500E

System Specifications

Maximum VMs Supported

6 12 28

Compatitable VNFs/VMs*

FortiManager KVM, FortiAnalyzer KVM, FortiGate KVM, FortiSandbox, FortiWeb KVM, FortiADC KVM, FortiRecorder KVM, FortiMail KVM, FortiVoiceEnterprise KVM, FortiCache 4.1.1 the cloud, Windows Server 2012 R2, Windows 10 Pro, Windows 7 Pro, CentOS 7, Ubuntu, Tiny Core Linux

10/100/1000 Interfaces (Copper, RJ45)

14 10 32

SFP Interfaces

0 8 0

SFP+ Interfaces

0 0 10

Management/HA Interfaces (RJ45)

2 2 2

Included Trancievers

0 2x SFP (SX 1 GE) 2x SFP (SX 1 GE)

Internal Storage

1 x 1 TB Hard Disk Drive 2 x 2 TB Hard Disk Drive 2 x 3 TB Hard Disk Drive

CPU Specification

2 cores, 2 threads, 1.7 GHz 4 cores, 4 threads, 3.2 GHz 6 cores, 12 threads, 3.5 GHz

Memory Size

8 GB 16 GB 32 GB

Dimensions

Height x Width x Length (inches)

2.9 x 8.5 x 7.0 1.73 x 17.00 x 12.68 3.5 x 17.4 x 21.9

Height x Width x Length (mm)

73 x 216 x 179 44 x 432 x 322 88 x 442 x 555

Weight

4.7 lbs (2.1 kg) 10.8 lbs (4.9 kg) 36.5 lbs (16.6 kg)
Environment
Form Factor Desktop 1RU, Rack Mount 2RU, Rack Mount, Ears supplied, Rail optional
Power Source 100–240V AC, 60–50 Hz
(External DC Power Adapter)
100–240V AC, 50–60 Hz 100–240V AC, 50–60 Hz
Current (Max) 3A /110V, 1.5A / 220V 4A /110V, 2A / 220V 9A /110V, 4.5A / 220V
Power Consumption (Average / Maximum) 30 W / 35 W 113 W / 202 W 312 W / 470 W
Heat Dissipation 100 BTU/h 690 BTU/h 1604 BTU/h
Operating Temperature 32–104°F (0–40°C) 32–104°F (0–40°C) 32–104°F (0–40°C)
Storage Temperature -31–158°F (-35–75°C) -31–158°F (-35–70°C) -31–158°F (-35–70°C)
Humidity 20–95% non-condensing 5–95% non-condensing 20–95% non-condensing
Redundant Power Supplies Supports FRPS-100 Dual Power Supply
System
Management CLI (SSH, Telnet, Console), HTTP/S CLI (SSH, Telnet, Console), HTTP/S CLI (SSH, Telnet, Console), HTTP/S
Compliance
Safety Compliance FCC Part 15 Class B, C-Tick, VCCI, CE, UL/cUL, CB FCC Part 15 Class B, C-Tick, VCCI, CE, UL/cUL, CB FCC Part 15 Class B, C-Tick, VCCI, CE, UL/cUL, CB

Performance Guidance

The following table illustrates the performance of a single FortiGate VM04 running on the FortiHypervisor appliance.

FortiHypervisor 90E FortiHypervisor 500D FortiHypervisor 2500E
System Performance
Firewall Throughput (1518 / 512 / 64 byte UDP packets) 820 / 240 / 43 Mbps 16 / 16 / 9 Gbps 132 / 131 / 37 Gbps
Firewall Throughput (Packets Per Second) 64.5 Kpps 13.5 Mpps 55.5 Mpps
Firewall Latency (64 byte UDP packets) 100 μs 2.18 μs 1.26 μs
Concurrent Sessions (TCP) 3.3 Million 3.8 Million 17 Million
New Sessions/Second (TCP) 9,500 56,000 192,000
IPsec VPN Throughput (512 byte packets) 70 Mbps 14 Gbps 88 Gbps
SSL-VPN Throughput 60 Mbps 750 Mbps 2.2 Gbps
IPS Throughput (HTTP / Enterprise Mix) 277 Mbps / TBC 2.3 Gbps / 750 Mbps 14.6 Gbps / TBC
SSL Inspection Throughput 105 Mbps 850 Mbps 2.6 Gbps
Application Control TBC 770 Mbps TBC
Threat Protection Throughput TBC 450 Mbps TBC

Documentation:

Download the Fortinet FortiHypervisor Data Sheet (PDF).

Pricing Notes:

Fortinet FortiHypervisor Series
FortiHypervisor-90E
FortiHypervisor-90E Hybrid Virtual Appliance
16 x GE RJ45 ports (2 x Mgmt/HA ports, 14 x switch ports), 1 dual-core CPU, 8GB RAM, 1TB internal storage
#FHV-90E
List Price: $1,700.00
Our Price: $1,329.00
8x5 FortiCare Contract
*8x5 Support, Hardware Replacement, Firmware and General Upgrades, VPN, Traffic Management
1 Year 8x5 FortiCare Contract for FortiHypervisor-90E
#FC-10-FHV90-311-02-12
Our Price: $255.00
3 Year 8x5 FortiCare Contract for FortiHypervisor-90E
#FC-10-FHV90-311-02-36
Our Price: $669.00
5 Year 8x5 FortiCare Contract for FortiHypervisor-90E
#FC-10-FHV90-311-02-60
Our Price: $1,116.00
24x7 FortiCare Contract
*24x7 Support, Advanced Hardware Replacement (Next Business Day), Firmware and General Upgrades, VPN, and Traffic Management
1 Year 24x7 FortiCare Contract for FortiHypervisor-90E
#FC-10-FHV90-247-02-12
Our Price: $425.00
3 Year 24x7 FortiCare Contract for FortiHypervisor-90E
#FC-10-FHV90-247-02-36
Our Price: $1,116.00
5 Year 24x7 FortiCare Contract for FortiHypervisor-90E
#FC-10-FHV90-247-02-60
Our Price: $1,859.00
