Call a Specialist Today! 800-886-5787

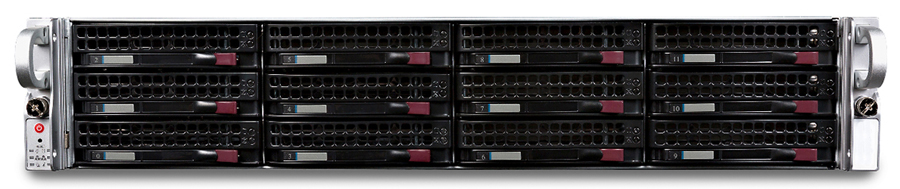

Fortinet FortiManager-2000E
Centralized Security Management

Fortinet FortiManager-2000E

Fortinet FortiManager 2000E Series
Fortinet FortiManager-2000E
Fortinet FortiManager-2000E
Centralized Management, log and analysis appliance - 4 x GE RJ45, 2 x SFP+, 36TB storage, up to 1200x Fortinet devices/Virtual Domains.
#FMG-2000E
Our Price: $80,000.00
Fortinet FortiManager-2000E
8x5 FortiCare Contract - 1 Year
#FC-10-M02KE-311-02-12
Our Price: $12,000.00

Click here to jump to more pricing!

Overview:

Take Control of Your Security Infrastructure

The FortiManager family delivers the versatility you need to effectively manage your Fortinetbased security infrastructure. FortiManager drastically reduces management costs, simplifies configuration, and accelerates deployment cycles, whether you are deploying new devices, installing security policies, or Virdistributing updates.

FortiManager also provides crucial timesaving features like device auto-discovery, group management, global policies, auditing facilities, and the ability to manage complex VPN environments. FortiManager, coupled with the FortiAnalyzer™ family of centralized logging and reporting appliances, provides a comprehensive and powerful centralized management solution for your organization.

Fortinet's Versatile Management Solution

Networks are constantly evolving due to threats, organizational growth or new regulatory/business requirements. Traditional management products focus on mitigating company-wide threats through firewall policies, firmware updates and keeping content security current.

FortiManager offers enterprise class features to contain these threats, but also provides flexibility to evolve along with your ever-changing network. In addition to being able to manage hundreds or even thousands of FortiGate devices, FortiManager now includes basic FortiAnalyzer logging and reporting functions for administrators who prefer a consolidated management platform.

Key tenets of Fortinet's management versatility:

  • Diversity of form factors
  • Architectural flexibility
  • Highly customizable
  • Simple licensing
Key Features & Benefits
Integrated FortiAnalyzer Logging This allows for a tighter integration and correlation of events and policies. A consolidated platform allows customers to more easily deploy Fortinet management products.
Hierarchical Objects Database Facilitates reuse of common configurations across the organization in both local and global ADOM levels.
Automated Device Provisioning / Centralized Policy Configuration Reduces cost of deploying new FortiGate or FortiClient installations and maintains policies across all managed assets.
Role-Based Administration Enables distributed administration, an important requirement for larger organizations.
Policy/Device Auditing Allows you to prove compliance, and track any deviations from the required security policy.
In-view Policy Object Editing Faster rulebase editing without opening new windows or changing context.
Device Profiles Aids in mass provisioning of managed devices.

Highlights:

Administrative Domains (ADOMs) and Global Policy

Enables a primary administrator to create groups of devices for other administrators to monitor and manage

  • Administrators can manage devices in their geographic location or business division
  • Multiple FortiGate virtual domains (VDOMs) can be divided among multiple ADOMs
  • Granular permissions allow assigning ADOMs and policies to particular users
  • Administrators can only access devices or VDOMs assigned to them
  • Create device configuration templates to quickly configure a new Fortinet appliance
  • Within each ADOM, there is a common database of objects shared by all devices and policy packages allowing users to reuse similar configurations among a group of managed assets
  • Global Policy capabilities are available on all FortiManager hardware models and virtual machines

JSON and XML (Web Services) APIs

  • JSON API — Allows MSSPs/large enterprises to create customized, branded web portals for policy and object administration
  • XML API — Enables administrators to automate common tasks such as provisioning new FortiGates and configuring existing devices

FortiManager Deployment

Locally Hosted Security Content

Hosting security content locally allows the administrator greater control over security content updates and provides improved response time for rating databases. Includes support for:

  • Antivirus definition updates
  • Intrusion Prevention updates
  • Vulnerability and Compliance Management updates
  • Web Filtering (select systems)
  • Antispam (select systems)

Command and Control

  • Manage devices and endpoint agents individually or as logical groups
  • Discover new devices automatically
  • Create, deploy, and monitor virtual private networks
  • Delegate control to other users with distributed administration features
  • Audit configuration changes to ensure compliance

Monitor, Analyze and Report

  • Access vital security and network statistics
  • Real-time monitoring and integrated basic reporting provide visibility into network and user activity.
  • For more powerful analytics, combine with a FortiAnalyzer appliance for additional data mining and graphical reporting capabilities

FortiManager Supported Devices

  • FortiGate and FortiCarrier Consolidated Security Appliances
  • FortiAP Wireless Access Points
  • FortiMail Messaging Security Systems
  • FortiWeb Web Application Security
  • FortiAnalyzer Reporting and Analysis Appliances
  • FortiSwitch Switching Platforms
  • FortiSandbox Advanced Threat Protection Appliances

Specifications:


FortiManager 200D FortiManager 300D FortiManager 400E FortiManager 2000E FortiManager 3000F FortiManager 3900E
Capacity and Performance
Devices/VDOMs (Maximum)1 30 100 300 1,200 4,000 10,000
Hardware Specifications
Hardware Form Factor 1 RU Rackmount 1 RU Rackmount 2 RU Rackmount 2 RU Rackmount 3 RU Rackmount 3 RU Rackmount
Total Interfaces 4x GE 4x GE 2x GE 4x GE, 2x 10 GE SFP+ 4x GE, 2x 10 GE SFP+ 2x GE, 2x 10 GE SFP+
Console Port RJ45 DB9 DB9 DB9 DB9 DB9
LCD Display No No No No No Yes
Storage Capacity 1 TB (1x 1 TB) 12 TB (4x 3 TB) 24 TB (8x 3 TB) 36 TB (12x 3 TB) 48 TB (16x 3 TB) 15 TB SSD (15x 1 TB SSD)
Removable Hard Drives No Yes Yes Yes Yes Yes
RAID Levels Supported None RAID 0/1/5/10 RAID 0/1/5/6/10/50/60 RAID 0/1/5/6/10/50/60 RAID 0/1/5/6/10/50/60 RAID 0/1/5/6/10/50/60
High Availability Support Yes Yes Yes Yes Yes Yes
Redundant Hot Swap Power Supplies No No Yes Yes Yes Yes
Dimensions
Height x Width x Length (inches) 1.8 x 17.1 x 13.9 1.7 x 17.2 x 19.8 3.5 x 17.2 x 25.2 3.5 x 17.2 x 25.6 5.2 x 17.2 x 25.5 3.5 x 17.2 x 26.9
Height x Width x Length (cm) 4.5 x 43.4 x 35.2 4.3 x 43.7 x 50.3 8.9 x 43.7 x 64.8 8.9 x 43.7 x 64.8 13.2 x 43.7 x 64.8 8.9 x 43.7 x 68.4
Weight 13.4 lbs (6.1 kg) 31 lbs (14.1 kg) 52 lbs (23.6 kg) 58 lbs (26.3 kg) 76 lbs (34.5 kg) 52 lbs (23.6 kg)
Environment
AC Power Supply 100–240V AC, 50–60 Hz, 6 Amp Maximum 100–240V AC, 50-60 Hz 100–240V AC, 60–50 Hz 100–240V AC, 50–60 Hz 100–240V AC, 50–60 Hz 100–240V AC, 50–60 Hz, 10 Amp Maximum
Power Consumption (Average / Maximum) 60 W / 72 W 93 W 192.5 W 195.2 W 285.5 W 391 W / 470 W
Heat Dissipation 205 BTU/h 546 BTU/h 920 BTU/h 920 BTU/h 1376 BTU/h 1637 BTU/h
Operating Temperature 32–104°F  (0–40°C) 50–95°F  (10–35°C) 50–95°F  (10–35°C) 50–95°F  (10–35°C) 50–95°F  (10–35°C) 50–95°F  (10–35°C)
Storage Temperature -13–158ºF  (-25–70ºC) -40–140°F  (-40–60°C) -40–140°F  (-40–60°C) -40–140°F  (-40–60°C) -40–140°F  (-40–60°C) -40–140°F  (-40–60°C)
Humidity 5–95% non-condensing 8–90% non-condensing 8–90% non-condensing 8–90% non-condensing 8–90% non-condensing 5–95% non-condensing
Operating Altitude Up to 7,400 ft (2,250 m) Up to 9,842 ft (3,000 m) Up to 9,842 ft (3,000 m) Up to 7,400 ft (2,250 m) Up to 7,400 ft (2,250 m) Up to 7,400 ft (2,250 m)
Compliance
Safety Certifications  FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB FCC Part 15 Class A, C-Tick, VCCI, CE, BSMI, KC, UL/ cUL, CB, GOST
FortiManager 200D FortiManager 300D FortiManager 400E FortiManager 2000E FortiManager 3000F FortiManager 3900E
Locally Hosted Security Content
Antivirus Yes Yes Yes Yes Yes Yes
Intrusion Prevention Yes Yes Yes Yes Yes Yes
Vulnerability Management Yes Yes Yes Yes Yes Yes
Web Filtering Yes Yes Yes Yes Yes Yes
Antispam Databases Yes Yes Yes Yes Yes Yes
Locally Hosted Security Content
Chassis Management No No No Yes Yes Yes
Global Policies Yes Yes Yes Yes Yes Yes
1 Each Virtual Domain (VDOM) operating on a physical or virtual device counts as one (1) licensed network device 2 Limited in software to 10,000 devices/VDOMs 3 Storage Capacity and GB/Day of Logs are not stackable. These values represent the maximum available with purchased license.

Services:

FortiGuard Security Subscription Services

FortiGuard Security Subscription Services deliver dynamic, automated updates for Fortinet products. The Fortinet Global Security Research Team creates these updates to ensure up-to-date protection against sophisticated threats. Subscriptions include antivirus, intrusion prevention, web filtering, antispam, vulnerability and compliance management, application control, and database security services.

FortiCare Support Services

FortiCare Support Services provide global support for all Fortinet products and services. FortiCare support enables your Fortinet products to perform optimally. Support plans start with 8x5 Enhanced Support with "return and replace" hardware replacement or 24x7 Comprehensive Support with advanced replacement. Options include Premium Support, Premium RMA, and Professional Services. All hardware products include a 1-year limited hardware warranty and 90-day limited software warranty.

Documentation:

Download the Fortinet FortiManager Series Datasheet (PDF).

Pricing Notes:

Fortinet FortiManager 2000E Series
Fortinet FortiManager-2000E
Fortinet FortiManager-2000E
Centralized Management, log and analysis appliance - 4 x GE RJ45, 2 x SFP+, 36TB storage, up to 1200x Fortinet devices/Virtual Domains.
#FMG-2000E
Our Price: $80,000.00
8x5 FortiCare Contract
The FortiCare 8x5 includes 8x5 Enhanced Support, Return and Replace, Firmware Upgrades, VPN, Traffic Management
1 Year 8x5 FortiCare Contract for FortiManager-2000E
#FC-10-M02KE-311-02-12
Our Price: $12,000.00
3 Year 8x5 FortiCare Contract for FortiManager-2000E
#FC-10-M02KE-311-02-36
Our Price: $31,500.00
5 Year 8x5 FortiCare Contract for FortiManager-2000E
#FC-10-M02KE-311-02-60
Our Price: $52,500.00
24x7 FortiCare Contract
The FortiCare 24x7 includes 24x7 Comprehensive Support, Advanced Hardware Replacement (Next Business Day), Firmware Upgrades, VPN, and Traffic Management
1 Year 24x7 FortiCare Contract for FortiManager-2000E
#FC-10-M02KE-247-02-12
Our Price: $20,000.00
3 Year 24x7 FortiCare Contract for FortiManager-2000E
#FC-10-M02KE-247-02-36
Our Price: $52,500.00
5 Year 24x7 FortiCare Contract for FortiManager-2000E
#FC-10-M02KE-247-02-60
Our Price: $87,500.00
Fortinet Accessories
AC Power Supply for FAZ-2000E, FMG-2000E, FAZ-3900E, FMG-3900E and FCH-3900E
#SP-FAZ2000E-PS
List Price: $880.00
Our Price: $748.00
