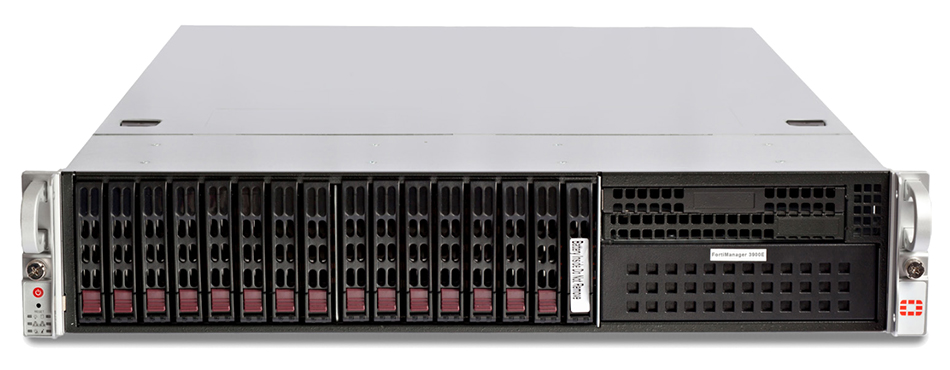

Fortinet FortiManager 3900E Appliance
Centralized Security Management
Centralized management, log and analysis appliance - 2 x GE RJ45, 2 x 10GE SFP+ slots, flash-based 15 TB SSD storage, dual power supplies, manages up to 10,000 Fortinet devices/Administrative Domains
Our Price: $199,995.00
Click here to jump to more pricing!
Overview:
Take Control of Your Security Infrastructure
The FortiManager family delivers the versatility you need to effectively manage your Fortinetbased security infrastructure. FortiManager drastically reduces management costs, simplifies configuration, and accelerates deployment cycles, whether you are deploying new devices, installing security policies, or Virdistributing updates.
FortiManager also provides crucial timesaving features like device auto-discovery, group management, global policies, auditing facilities, and the ability to manage complex VPN environments. FortiManager, coupled with the FortiAnalyzer™ family of centralized logging and reporting appliances, provides a comprehensive and powerful centralized management solution for your organization.
Fortinet’s Versatile Management Solution
Networks are constantly evolving due to threats, organizational growth or new regulatory/business requirements. Traditional management products focus on mitigating company-wide threats through firewall policies, firmware updates and keeping content security current.
FortiManager offers enterprise class features to contain these threats, but also provides flexibility to evolve along with your ever-changing network. In addition to being able to manage hundreds or even thousands of FortiGate devices, FortiManager now includes basic FortiAnalyzer logging and reporting functions for administrators who prefer a consolidated management platform.
Key tenets of Fortinet’s management versatility:
- Diversity of form factors
- Architectural flexibility
- Highly customizable
- Simple licensing
| Key Features & Benefits | |
|---|---|
| Integrated FortiAnalyzer Logging | This allows for a tighter integration and correlation of events and policies. A consolidated platform allows customers to more easily deploy Fortinet management products. |
| Hierarchical Objects Database | Facilitates reuse of common configurations across the organization in both local and global ADOM levels. |
| Automated Device Provisioning / Centralized Policy Configuration | Reduces cost of deploying new FortiGate or FortiClient installations and maintains policies across all managed assets. |
| Role-Based Administration | Enables distributed administration, an important requirement for larger organizations. |
| Policy/Device Auditing | Allows you to prove compliance, and track any deviations from the required security policy. |
| In-view Policy Object Editing | Faster rulebase editing without opening new windows or changing context. |
| Device Profiles | Aids in mass provisioning of managed devices. |
Highlights:
Administrative Domains (ADOMs) and Global Policy
Enables a primary administrator to create groups of devices for other administrators to monitor and manage
- Administrators can manage devices in their geographic location or business division
- Multiple FortiGate virtual domains (VDOMs) can be divided among multiple ADOMs
- Granular permissions allow assigning ADOMs and policies to particular users
- Administrators can only access devices or VDOMs assigned to them
- Create device configuration templates to quickly configure a new Fortinet appliance
- Within each ADOM, there is a common database of objects shared by all devices and policy packages allowing users to reuse similar configurations among a group of managed assets
- Global Policy capabilities are available on all FortiManager hardware models and virtual machines
JSON and XML (Web Services) APIs
- JSON API — Allows MSSPs/large enterprises to create customized, branded web portals for policy and object administration
- XML API — Enables administrators to automate common tasks such as provisioning new FortiGates and configuring existing devices
Locally Hosted Security Content
Hosting security content locally allows the administrator greater control over security content updates and provides improved response time for rating databases. Includes support for:
- Antivirus definition updates
- Intrusion Prevention updates
- Vulnerability and Compliance Management updates
- Web Filtering (select systems)
- Antispam (select systems)
Command and Control
- Manage devices and endpoint agents individually or as logical groups
- Discover new devices automatically
- Create, deploy, and monitor virtual private networks
- Delegate control to other users with distributed administration features
- Audit configuration changes to ensure compliance
Monitor, Analyze and Report
- Access vital security and network statistics
- Real-time monitoring and integrated basic reporting provide visibility into network and user activity.
- For more powerful analytics, combine with a FortiAnalyzer appliance for additional data mining and graphical reporting capabilities
FortiManager Supported Devices
- FortiGate and FortiCarrier Consolidated Security Appliances
- FortiAP Wireless Access Points
- FortiMail Messaging Security Systems
- FortiWeb Web Application Security
- FortiAnalyzer Reporting and Analysis Appliances
- FortiSwitch Switching Platforms
- FortiSandbox Advanced Threat Protection Appliances
Specifications:
| FortiManager 200D | FortiManager 300D | FortiManager 400E | FortiManager 2000E | FortiManager 3000F | FortiManager 3900E | |
|---|---|---|---|---|---|---|
| Capacity and Performance | ||||||
| Devices/VDOMs (Maximum)1 | 30 | 100 | 300 | 1,200 | 4,000 | 10,000 |
| Hardware Specifications | ||||||
| Hardware Form Factor | 1 RU Rackmount | 1 RU Rackmount | 2 RU Rackmount | 2 RU Rackmount | 3 RU Rackmount | 3 RU Rackmount |
| Total Interfaces | 4x GE | 4x GE | 2x GE | 4x GE, 2x 10 GE SFP+ | 4x GE, 2x 10 GE SFP+ | 2x GE, 2x 10 GE SFP+ |
| Console Port | RJ45 | DB9 | DB9 | DB9 | DB9 | DB9 |
| LCD Display | No | No | No | No | No | Yes |
| Storage Capacity | 1 TB (1x 1 TB) | 12 TB (4x 3 TB) | 24 TB (8x 3 TB) | 36 TB (12x 3 TB) | 48 TB (16x 3 TB) | 15 TB SSD (15x 1 TB SSD) |
| Removable Hard Drives | No | Yes | Yes | Yes | Yes | Yes |
| RAID Levels Supported | None | RAID 0/1/5/10 | RAID 0/1/5/6/10/50/60 | RAID 0/1/5/6/10/50/60 | RAID 0/1/5/6/10/50/60 | RAID 0/1/5/6/10/50/60 |
| High Availability Support | Yes | Yes | Yes | Yes | Yes | Yes |
| Redundant Hot Swap Power Supplies | No | No | Yes | Yes | Yes | Yes |
| Dimensions | ||||||
| Height x Width x Length (inches) | 1.8 x 17.1 x 13.9 | 1.7 x 17.2 x 19.8 | 3.5 x 17.2 x 25.2 | 3.5 x 17.2 x 25.6 | 5.2 x 17.2 x 25.5 | 3.5 x 17.2 x 26.9 |
| Height x Width x Length (cm) | 4.5 x 43.4 x 35.2 | 4.3 x 43.7 x 50.3 | 8.9 x 43.7 x 64.8 | 8.9 x 43.7 x 64.8 | 13.2 x 43.7 x 64.8 | 8.9 x 43.7 x 68.4 |
| Weight | 13.4 lbs (6.1 kg) | 31 lbs (14.1 kg) | 52 lbs (23.6 kg) | 58 lbs (26.3 kg) | 76 lbs (34.5 kg) | 52 lbs (23.6 kg) |
| Environment | ||||||
| AC Power Supply | 100–240V AC, 50–60 Hz, 6 Amp Maximum | 100–240V AC, 50-60 Hz | 100–240V AC, 60–50 Hz | 100–240V AC, 50–60 Hz | 100–240V AC, 50–60 Hz | 100–240V AC, 50–60 Hz, 10 Amp Maximum |
| Power Consumption (Average / Maximum) | 60 W / 72 W | 93 W | 192.5 W | 195.2 W | 285.5 W | 391 W / 470 W |
| Heat Dissipation | 205 BTU/h | 546 BTU/h | 920 BTU/h | 920 BTU/h | 1376 BTU/h | 1637 BTU/h |
| Operating Temperature | 32–104°F (0–40°C) | 50–95°F (10–35°C) | 50–95°F (10–35°C) | 50–95°F (10–35°C) | 50–95°F (10–35°C) | 50–95°F (10–35°C) |
| Storage Temperature | -13–158ºF (-25–70ºC) | -40–140°F (-40–60°C) | -40–140°F (-40–60°C) | -40–140°F (-40–60°C) | -40–140°F (-40–60°C) | -40–140°F (-40–60°C) |
| Humidity | 5–95% non-condensing | 8–90% non-condensing | 8–90% non-condensing | 8–90% non-condensing | 8–90% non-condensing | 5–95% non-condensing |
| Operating Altitude | Up to 7,400 ft (2,250 m) | Up to 9,842 ft (3,000 m) | Up to 9,842 ft (3,000 m) | Up to 7,400 ft (2,250 m) | Up to 7,400 ft (2,250 m) | Up to 7,400 ft (2,250 m) |
| Compliance | ||||||
| Safety Certifications | FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB | FCC Part 15 Class A, C-Tick, VCCI, CE, BSMI, KC, UL/ cUL, CB, GOST | ||||
| FortiManager 200D | FortiManager 300D | FortiManager 400E | FortiManager 2000E | FortiManager 3000F | FortiManager 3900E | |
| Locally Hosted Security Content | ||||||
| Antivirus | Yes | Yes | Yes | Yes | Yes | Yes |
| Intrusion Prevention | Yes | Yes | Yes | Yes | Yes | Yes |
| Vulnerability Management | Yes | Yes | Yes | Yes | Yes | Yes |
| Web Filtering | Yes | Yes | Yes | Yes | Yes | Yes |
| Antispam Databases | Yes | Yes | Yes | Yes | Yes | Yes |
| Locally Hosted Security Content | ||||||
| Chassis Management | No | No | No | Yes | Yes | Yes |
| Global Policies | Yes | Yes | Yes | Yes | Yes | Yes |
1 Each Virtual Domain (VDOM) operating on a physical or virtual device counts as one (1) licensed network device 2 Limited in software to 10,000 devices/VDOMs 3 Storage Capacity and GB/Day of Logs are not stackable. These values represent the maximum available with purchased license.
Services:
FortiGuard Security Subscription Services
FortiGuard Security Subscription Services deliver dynamic, automated updates for Fortinet products. The Fortinet Global Security Research Team creates these updates to ensure up-to-date protection against sophisticated threats. Subscriptions include antivirus, intrusion prevention, web filtering, antispam, vulnerability and compliance management, application control, and database security services.
FortiCare Support Services
FortiCare Support Services provide global support for all Fortinet products and services. FortiCare support enables your Fortinet products to perform optimally. Support plans start with 8x5 Enhanced Support with "return and replace" hardware replacement or 24x7 Comprehensive Support with advanced replacement. Options include Premium Support, Premium RMA, and Professional Services. All hardware products include a 1-year limited hardware warranty and 90-day limited software warranty.
Documentation:
Download the Fortinet FortiManager Series Datasheet (PDF).
Pricing Notes:
- Pricing and product availability subject to change without notice.
Centralized management, log and analysis appliance - 2 x GE RJ45, 2 x 10GE SFP+ slots, flash-based 15 TB SSD storage, dual power supplies, manages up to 10,000 Fortinet devices/Administrative Domains
Our Price: $199,995.00
Our Price: $10,000.00
Our Price: $29,999.00
Our Price: $78,748.00
Our Price: $117,747.00
Our Price: $49,999.00
Our Price: $131,247.00
Our Price: $196,245.00
License to operate FortiManager as a dedicated Secure DNS server appliance (3000 series and above - hardware only)
Our Price: $10,000.00
List Price: $880.00
Our Price: $748.00
