Fortinet FortiSandbox VM
Multi-Layer Proactive Threat Mitigation

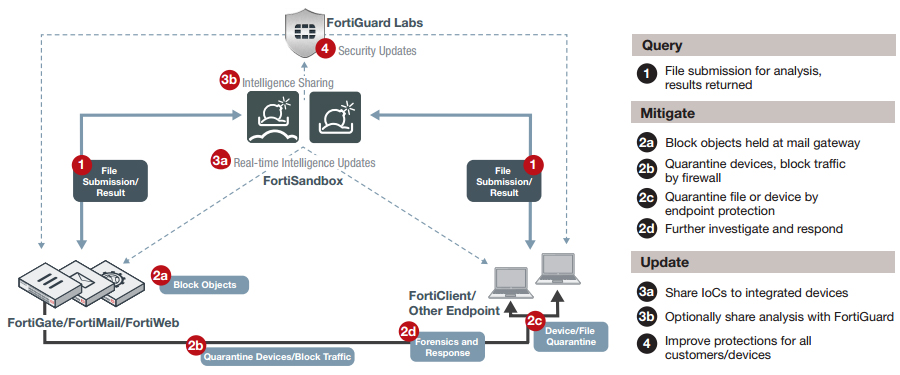

Advanced Threat Protection Framework:

The most effective defense against advanced targeted attacks is founded on a cohesive and extensible protection framework. The Fortinet framework uses security intelligence across an integrated solution of traditional and advanced security tools for network, application and endpoint security, and threat detection to deliver actionable, continuously improving protection.

Fortinet integrates the intelligence of FortiGuard Labs into FortiGate next generation firewalls, FortiMail secure email gateways, FortClient endpoint security, FortiSandbox advanced threat detection, and other security products to continually optimize and improve the level of security delivered to organizations with a Fortinet solution.

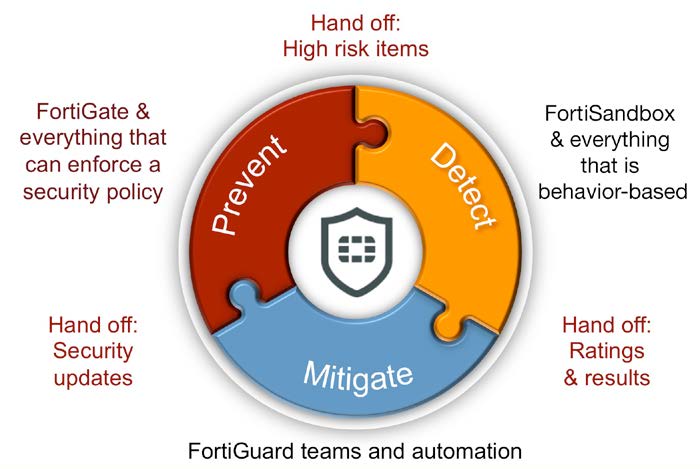

Prevent Attacks

Detect and Analyze Threats

Mitigate Impact and Improve Protection

Features:

VM Sandboxing

Complement your established defenses with cuttingedge capability — analyzing suspicious and high-risk files in a contained environment to uncover the full attack lifecycle using system activity and callback detection.

File Analysis Tools

Remediation

Fortinet's ability to uniquely integrate various products with FortiSandbox offers automatic protection with incredibly simple setup. Once a malicious code is determined, the analyzer will develop and forward the dynamically generated signature to all registered devices and clients. These devices then examine subsequent files against the latest DB.

Multi-tiered file processing optimizes resource usage that improves security, capacity and performance

AV Engine

• Applies top-rated (95%+ Reactive and Proactive) AV Scanning. Serves as an efficient pre-filter.

Cloud Query

• Real-time check of latest malware information
• Access to shared information for instant malware detection

Code Emulation

• Quickly simulates intended activity
• OS independent and immune to evasion/obfuscation

Full Virtual Sandbox

• Secure run-time environment for behavioral analysis/rating
• Exposes full threat lifecycle information

Call Back Detection

• Identifies the ultimate aim, call back and exfiltration

Features Summary

Administration

• Supports WebUI and CLI configurations
• Multiple administrator account creation
• Configuration file backup and restore
• Notification email when malicious file is detected
• Weekly report to global email list and FortiGate administrators
• Centralized search page which allows administrators to build customized search conditions
• Frequent signature auto-updates
• Automatic check and download new VM images
• VM status monitoring
• Radius Authentication for administrators

Networking/Deployment

• Static Routing Support
• File Input: Offline/sniffer mode, On-demand file upload, file submission from integrated device(s)
• Option to create simulated network for scanned file to access in a closed network environment
• High-Availability Clustering support
• Port monitoring for fail-over in a cluster

Systems Integration

• File Submission input: FortiGate, FortiClient, FortiMail, FortiWeb
• File Status Feedback and Report: FortiGate, FortiClient, FortiMail, FortiWeb
• Dynamic Threat DB update: FortiGate, FortiClient, FortiMail
  • Periodically push dynamic DB to registered entities.
  • File checksum and malicious URL DB
• Update Database proxy: FortiManager
• Remote Logging: FortiAnalyzer, syslog server
• Web-based API with which users can upload samples to scan indirectly
• Bit9 end point software integration

Advanced Threat Protection

• Virtual OS Sandbox:
  • Concurrent instances
  • OS type supported: Windows XP, Windows 7, Windows 8.1, Windows 10 and Android
  • Anti-evasion techniques: sleep calls, process and registry queries
  • Callback Detection: malicious URL visit, Botnet C&C communication and attacker traffic from activated malware
  • Download Capture packets, Original File, Tracer log and Screenshot
• File type support:
  • Archived: .tar, .gz, .tar.gz, .tgz, .zip, .bz2, .tar.bz2, .bz, .tar.Z,.cab, .rar, .arj
  • Executable files: (eg: .exe, .dll), PDF, Windows Office Document, AdobeFlash and JavaArchive (JAR) files
  • Script files: .js,.bat,.vbs,.ps1,.cmd
  • Media files: .avi, .mpeg, .mp3, .mp4
• Protocols/applications supported:
  • Sniffer mode: HTTP, FTP, POP3, IMAP, SMTP, SMB
  • Integrated mode with FortiGate: HTTP, SMTP, POP3, IMAP, MAPI, FTP, IM and their equivalent SSL encrypted versions
  • Integrated mode with FortiMail: SMTP, POP3, IMAP
  • Integrated mode with FortiWeb: HTTP
• Customize VMs with support file types support
• Isolate VM image traffic from system traffic
• Network threat detection in Sniffer Mode: Identify Botnet activities and network attacks, malicious URL visit
• Scan SMB/NFS network share and quarantine suspicious files. Scan can be scheduled
• Scan embedded URLs inside document files
• Integrate option for third partyYara rules
• Option to auto-submit suspicious files to cloud service for manual analysis and signature creation
• Option to forward files to a network share for further third-party scanning
• Files checksum whitelist and blacklist option
• URLs submission for scan and query from emails and files

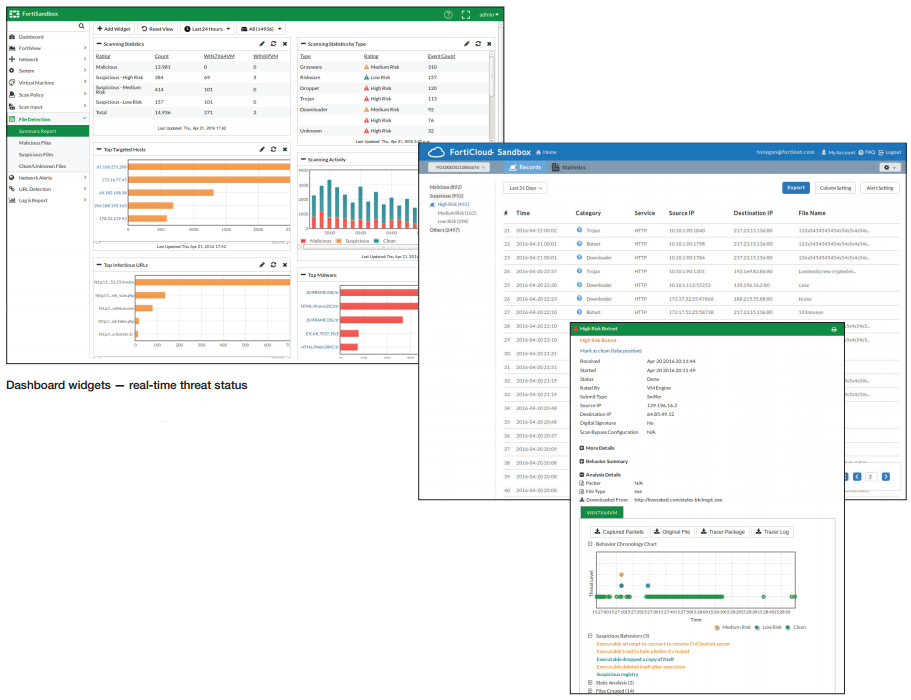

Monitoring and Report

• Real-Time Monitoring Widgets (viewable by source and time period options): Scanning result statistics, scanning activities (over time), top targeted hosts, top malware, top infectious urls, top callback domains
• Drilldown Event Viewer: Dynamic table with content of actions, malware name, rating, type, source, destination, detection time and download path
• Logging — GUI, download RAW log file
• Report generation for malicious files: Detailed reports on file characteristics and behaviors – file modification, process behaviors, registry behaviors, network behaviors, vm snapshot, behavior chronology chart
• Further Analysis: Downloadable files — Sample file, Sandbox tracer logs and PCAP capture

Deployment:

Easy Deployment

FortiSandbox supports inspection of many protocols in one unified solution, thus simplifies network infrastructure and operations. Further, it integrates with FortiGate as a new capability within your existing security framework.

The FortiSandbox is the most flexible threat analysis appliance in the market as it offers various deployment options for customers' unique configurations and requirements. Organizations can also have all three input options at the same time.

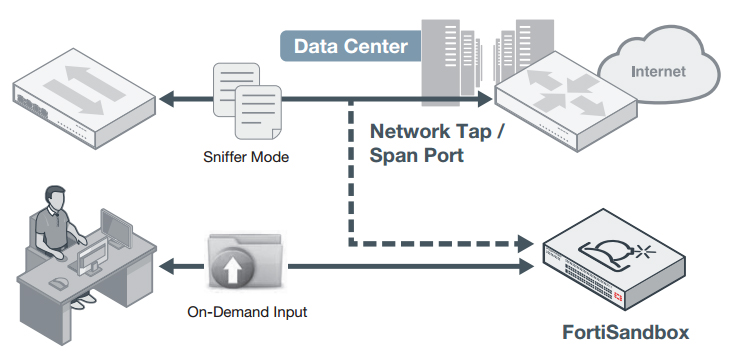

Standalone

This deployment mode relies on inputs from spanned switch ports or network taps. It may also include administrators' on-demand file uploads using the GUI. It is the most suitable infrastructure for adding protection capabilities to existing threat protection systems from various vendors.

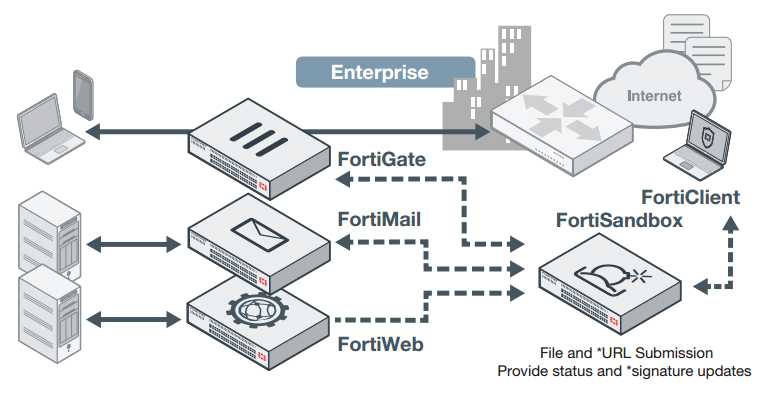

Integrated

Various Fortinet products, namely FortiGate, FortiMail, FortiWeb and FortiClient can intercept and submit suspicious content to FortiSandbox when they are configured to interact with FortiSandbox. The integration will also provide timely remediation and reporting capabilities to those devices.

* Not applicable to FortIWeb

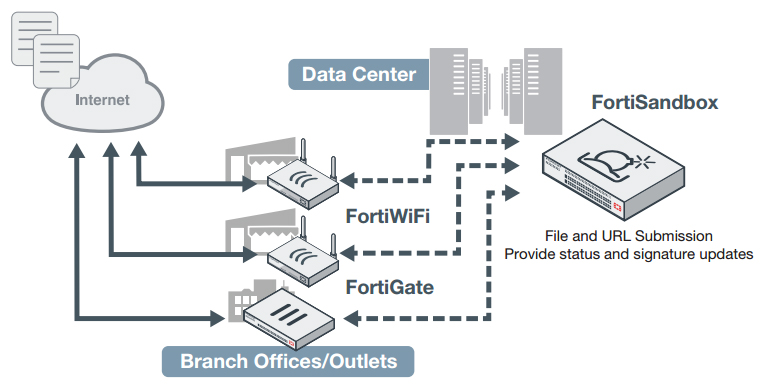

Distributed

This deployment is attractive for organizations that have distributed environments, where FortiGates are deployed in the branch offices and submit suspicious files to a centrallylocated FortiSandbox. This setup yields the benefits of lowest TCO and protects against threats in remote locations.

Specifications:

*some models may require CLI configuration

Documentation:

Download the Fortinet FortiSandbox Series Datasheet (PDF).
