Fortinet FortiTester 2000D
Comprehensive Network Device Performance Evaluation

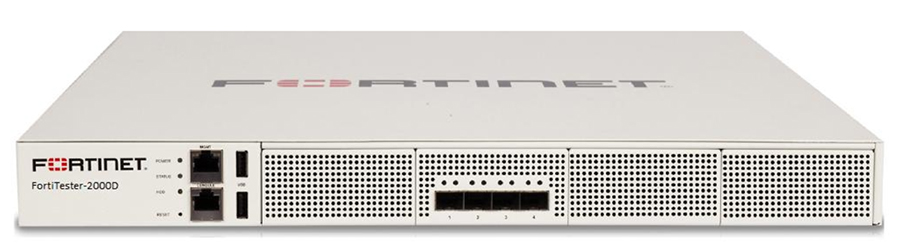

FortiTester 2000D

Fortinet FortiTester Series
FortiTester-2000D
Fortinet FortiTester-2000D
Network performance and security testing system for enterprises and service providers - 1 x GE RJ45, 4 x 10GE SFP+, 120 GB SSD Storage
#FTS-2000D
Our Price: $14,995.00

Click here to jump to more pricing!

Overview:

Highlights

  • Built for BYOD and IoT scales with support for 450 million concurrent sessions
  • Specialized architecture capable of processing massive signaling surges up to 3 million connections per second
  • Compact 3RU form factor is ideal for space-constraint applications and lowers colocation cost for service providers
  • Comprehensive Carrier-Grade NAT and IPv6 migration option including: NAT44, NAT444, NAT64/DNS64, NAT46

FortiTester delivers precise, comprehensive information about your network devices so you can ensure optimum performance and device selection. Is your hardware fine-tuned for maximum throughput? Is your topology inadvertently introducing latency? Are there hidden points of congestion or vulnerability? A bad uplink or misconfigured switch? FortiTester gives you the power to truly see and streamline your network’s performance.

Comprehensive test suite

With a suite of powerful yet easy-to use tests that simulate a variety of typical traffic conditions and a case library that stores past tests for easy comparison, FortiTester enables you to set performance standards and run audits to ensure that your network continues to meet them.

Tests include TCP throughput and connectivity; connections per second and request per second performance for both HTTP and HTTPS traffic; a sophisticated intrusion simulation test that reveals vulnerabilities to attacks; and CAPWAP throughput for wireless network performance.

Ensure Optimum Network Performance

Get the most out of your network devices and diagnose potential issues with comprehensive performance testing. With a suite of powerful, yet easy-to-use tests that simulate a variety of typical traffic conditions, FortiTester lets you set performance standards and run audits to make sure your network continues to meet them. It also stores past tests for easy comparison. With the test results, you can take action to improve your network’s performance.

FortiTester’s thorough test suite includes:

  • Attack repay test
  • HTTP/HTTPS connections per second test
  • HTTP/HTTPS requests per second test
  • TCP throughput test
  • TCP concurrent connection performance test
  • Mixed traffic test
Key Features & Benefits
Performance testing Check transmission throughput in a variety of protocols and expose points of congestion to eliminate latency.
Case library Save test results to compare performance over time.
Configurable test parameters Every network is different. FortiTester allows you to customize test parameters to ensure meaningful results

Specifications:

Fortitester 2000D Specifications
Hardware Specifications
Total Interface 4x 10 GE SFP+ slots,1x Management GE RJ45 port
Storage 120 GB SSD
Form Factor 1U
System Performance Standalone Mode 2 Units Center Mode 4 Units Center Mode
HTTP CPS (sessions/s) 874K 1,765K 3,700K
HTTP RPS (transactions/s) 1,837K 3,625K 7,750K
HTTP CC (sessions) 10,000K 20,000K 40,000K
HTTP Throughput (Gbps) 19.9 39 79
HTTPS CPS (sessions/s) 16K 28K 55K
HTTPS RPS (transactions/s) 324K 542K 1,113K
HTTPS CC (sessions) 15K 18K 34K
HTTPS Throughput (Gbps) 1.4 2.7 11
UDP PPS 64 bytes (bidirectional) (Gbps) TX 35 TX 69 TX 135
UDP Payload (Gbps) TX 19.9 TX 39 TX 79
DNS Latency (query/s) 7,139K 14,313K 29,120K
TCP CC (sessions) 10,000K 20,000K 40,000K
TCP Throughput (bidirectional) (Gbps) 39 79 159
Turbo TCP (sessions/s) 1,777K 3,584K 7,550K
SMTP (messages/s) 29K 58K 110K
POP3 (messages/s) 125K 250K 500K
IMAP (messages/s) 125K 256K 510K
FTP (files/s) 216K 434K 868K
DDOS Single Packet Flood (client TX) 19,000K 39,000K 79,000K
DDOS TCP Session Flood (sessions/s) 357K 474K 800K
DDOS HTTP Session Flood (sessions/s) 351K 530K 780K
DDOS Concurrent Session Flood (sessions) 10,000K 20,000K 40,000K
RFC 2544 Throughput yes yes yes
RFC 2544 Latency yes yes yes
RFC 2544 Loss Rate yes yes yes
RFC 2544 Back to Back yes yes yes
Dimensions and Power
Height x Width x Length (inches) 1.73 x 17.24 x 22.83
Height x Width x Length (mm) 44 x 438 x 580
Weight 24.23 lbs (11.08 Kg)
Power Required 100–240V AC, 60–50 Hz
Power Consumption (Average / Maximum) 300 W / 360 W
Maximum Current 120V/6A, 240V/3A
Heat Dissipation 1228 BTU/h
Redundant Power Supplies Dual Power Supplies
Environment
Operating Temperature 32–104°F (0–40°C)
Storage Temperature -4 – 158°F (-20–70°C)
Humidity 5–95% non-condensing
Operating Altitude Up to 7,400 ft (2,250 m)
Compliance
Regulatory Compliance FCC Part 15 Class A, C-tick, VCCI, CE, UL/c
Safety CSA, C/US, CE, UL

Software:

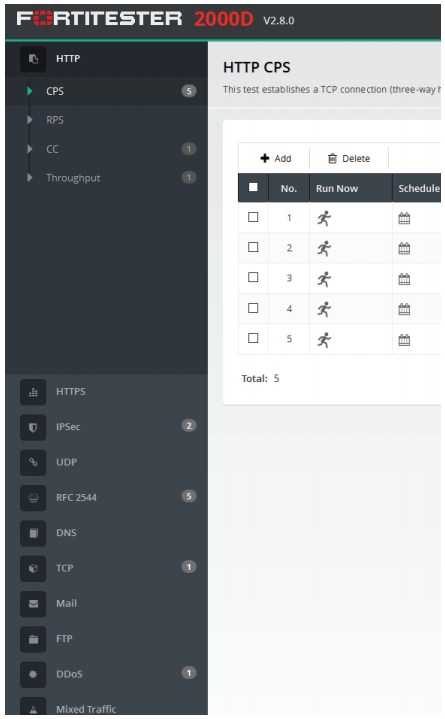

Test Cases

Test cases are grouped by types, such as HTTPS, IPsec, DDoS and RFC 2544. These groups contain a number of tests which focus on specific demands such as throughput, sessions, or number of packets, for example. ForiTester’s user interface makes it easy to create, customize and run a test. Helpful diagnostic messages on case start-up help you identify any configuration errors in your device under test.

Test Cases

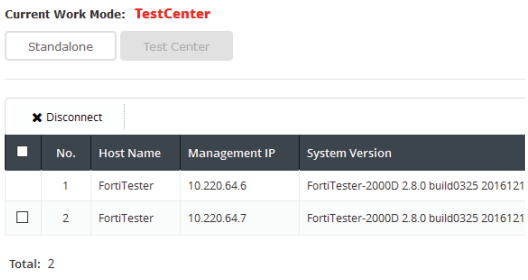

Test Center Mode

There are two major software components in FortiTester, which are the traffic generator and the test cetner. The traffic generator is the engines and assigned CPU cores and physical interfaces. The test center is the user interface and test case configuration and management. In standalone mode, test center uses the local traffic generator. In test center mode, test center connects to the local traffic generator and remote traffic generators on other FortiTesters. This extends test center to 2 or 4 traffic generators controlled by a primary device. This datasheet includes values for standalone as well as 2 and 4 device test center configurations.

Test Center Mode

Documentation:

Download the Fortinet FortiTester Datasheet (PDF).

Pricing Notes:

Fortinet FortiTester Series
FortiTester-2000D
Fortinet FortiTester-2000D
Network performance and security testing system for enterprises and service providers - 1 x GE RJ45, 4 x 10GE SFP+, 120 GB SSD Storage
#FTS-2000D
Our Price: $14,995.00
Fortinet 8x5 FortiCare Contract
*8x5 Support, Hardware Replacement, Firmware and General Upgrades, VPN, Traffic Management
1 Year 8x5 FortiCare Contract for FortiTester-2000D
#FC-10-FT02K-311-02-12
Our Price: $2,250.00
3 Year 8x5 FortiCare Contract for FortiTester-2000D
#FC-10-FT02K-311-02-36
Our Price: $5,907.00
5 Year 8x5 FortiCare Contract for FortiTester-2000D
#FC-10-FT02K-311-02-60
Our Price: $9,840.00
