Fortinet FortiVoice Enterprise 20E4
2 x 10/100 ports, 4 x FXO, 8GB storage, 20 Extensions, 4 VoIP trunks

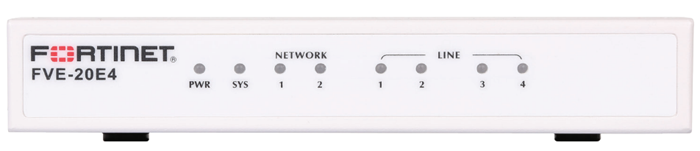

Fortinet FortiVoice Enterprise 20E4

Fortinet FortiVoice Enterprise-20E4 Series
FortiVoice Enterprise
Fortinet FortiVoice Enterprise-20E4
FortiVoice Enterprise Gateway 20E4, 2 x 10/100 ports, 4 x FXO, 8GB storage, 20 Extensions, 4 VoIP trunks
#FVE-20E4
List Price: $799.00
Our Price: $625.00

Click here to jump to more pricing!

Overview:

The FortiVoice Enterprise IP PBX voice solutions give you total call control and sophisticated communication features for excellent customer service and efficient employee collaboration. Powerful, affordable and simple, FortiVoice Enterprise systems deliver powerful features and value to offices with up to 3,000 phone users. FortiVoice phone systems include everything you need to handle calls professionally, control communication costs and stay connected everywhere.

Built-in fundamentals

FortiVoice Enterprise systems include all the fundamentals of enterprise-class voice communica - tions, with no additional licenses to buy or car ds to install. Auto attendants, auto provisioning, line/extension appearance, ring groups, user privileges, call queue, call barge, multilocation integration and much more are built-in. FortiVoice systems are easy to purchase, easy to install and easy to manage, so you save the headaches that come with most enterprise phone systems

User appeal

Your people will like it too. The FortiVoice personal web portal lets your staff view their call logs, configure and manage their own messaging and access other features. Your employees get control over their phones, and your IT staff get a break from having to configure every little change

The network voice solution from the network security experts

  • Built-in features, including auto attendants, music on hold, remote extensions and much more
  • Auto provisioning
  • High Availability
  • Web-based management, user interfaces
  • Operator console
  • Real-time call status monitoring, line/extension appearance
  • Fax service
  • Rule-based dial plan
  • Call recording
  • Call queue
  • Call barge
Key Features & Benefits
Multiple line types Support for PRI (T1/E1) digital lines, VoIP and traditional analog lines, depending on the model.
Multilocation networking Integrates multiple locations, around the block or across the country with no long-distance charges.
Rich call features Line/extension appearance, call queue, call barge, phone profile, ring group, call recording, rule-based dial plan, individual/group voicemail, and much more.
Flexibility Multiple mode scheduling, flexible number management, re-assignable extensions, and caller ID modification.
Ease of configuration Visual auto attendant config, built-in DHCP server, auto phone provisioning and web-based management and user web portal.
Comprehensive system monitoring Real-time call status monitoring, call statistics, call logs, and call reports, and network traffic capture.

Features & Benefits:


Core PBX Features
  • SIP/PRI/PSTN trunk
  • T1/E1/R2 signaling
  • SIP/analog extensions
  • Remote extensions
  • External IP extensions
  • Auto attendants
  • Dial-by-name directory
  • Individual voicemail
  • Group voicemail
  • Voicemail to e-mail
  • Ring groups
  • Call queue
  • Call conference/bridge
  • Call barge
  • Call forward
  • Call hold/transfer/park/pickup
  • Paging to selected phones
  • Intercom
  • Follow-me
  • Rule-based dial plan
  • Scheduled call handling
  • Direct inward dialing
  • Caller-based direct inward dialing
  • Caller ID modification
  • User privileges
  • Personal and system speed dial
  • Personal blacklist
  • Music on hold — audio files
  • Music on hold — live stream
  • Real-time call status monitoring
  • Line/extension appearance
  • Call detail record logging
  • 802.1Q VLAN support
  • SIP over TLS/SRTP
  • Password policy enforcement
Enhanced Features
  • High Availability
  • Call recording
  • Call recording archive and remote storage
  • Fax over SIP/PRI/PSTN
  • Fax archive
  • Fax to e-mail
  • Send fax from user portal
  • Fax archive and remote storage
  • Web-based management interface
  • Web-based operator console
  • Role-based management
  • Web-based user portal
  • Web-based directory lookup
  • LDAP authenticate
  • Reminder/wakeup calls
  • Hot desking
  • Virtual numbers
  • Mutilocation: office peers
  • External NAS server support
  • Synchronizing phone book between multiple offices
  • Look up centralized phone book from phones
  • Network traffic capture
  • SNMP
  • Enhanced CDR
  • SMDR for external billing system
  • Scheduled and on-demand call reports
  • Alert email for system events
Licensed Features
  • Interconnection with Hotel/property management
  • Self-contained Hotel/property management module
  • Call Center

FortiVoice Enterprise dashboard
FortiVoice Enterprise dashboard

Features FVE-20E2/4 FVE-100E FVE-300E-T FVE-500E-T2 / T4 FVE-1000E FVE-1000E-T FVE-2000E-T2 FVE-3000E
Advanced Call features
Reminder/Wake-up call
Call queue
Call barge
Call recording
Operator console
Advanced Network
Voice QoS
SRTP
DHCP Server
High availability (HA)
NAS support
802.1Q VLAN
SNMP
Advanced Management
Command line interface (CLI)
Password policy/audit
Schedule backup
Role-based management
SMDR
Remote logging
Call report
User portal
Customizable web appearance
Additional Licensed features
Hotel/property management
Call Center

Deployment:

FortiVoice Enterprise Deployment

Specifications:

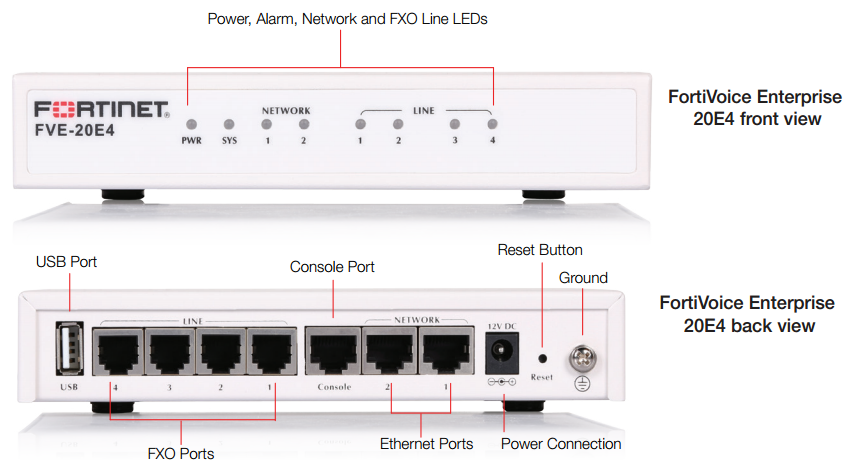

FortiVoice Enterprise 20E4 Front and Rear View

FVE-20E2 FVE-20E4 FVE-100E FVE-300E-T FVE-500E-T2
Hardware Specifications
Primary Rate Interface (PRI) 0 0 0 1xT1/E1 2xT1/E1
Traditional Telephone Lines (FXO) 2 4 0 0 0
Analog Extensions (FXS) 2 0 0 0 0
Network Interface Cards (RJ45) 2 2 4 5 5
Total Hard Drive Capacity 8 GB 8 GB 500 GB 500 GB 500 GB
Hardware Form Factor Desktop Desktop Desktop Rack Mount (1U) Rack Mount (1U)
Dimensions
Height x Width x Length (inches) 1.13 x 4.55 x 6.75 1.13 x 4.55 x 6.75 1.61 x 8.27 x 5.24 1.73 x 17.01 x 10.63 1.73 x 17.01 x 10.63
Height x Width x Length (mm) 29 x 116 x 172 29 x 116 x 172 41 x 210 x 33 44 x 432 x 270 44 x 432 x 270
Weight 1.4 lbs (0.61 kg) 1.4 lbs (0.61 kg) 2.6 lbs (1.2 kg) 10 lbs (4.54 kg) 10 lbs (4.54 kg)
Capacity
VoIP trunks 4 4 16 30 50
Extensions 20 20 100 300 500
Concurrent calls 8 8 30 60 110
Auto attendants 2 2 10 20 20
Conference bridges 1 1 8 12 12
Conference attendees per bridge 6 6 8 12 12
Maximum call center agents N/A N/A N/A 30 55
Codec support Audio: G.711 μ-law/A-law, G.729a, G.722, G.726Video: H.263, H.264

FVE-500E-T4 FVE-1000E FVE-1000E-T FVE-2000E-T2 FVE-3000E
Hardware Specifications
Primary Rate Interface (PRI) 4x T1/E1 0 1x T1/E1 2x T1/E1 0
Traditional Telephone Lines (FXO) 0 0 4 0 0
Analog Extensions (FXS) 0 0 1 0 0
Network Interface Cards (RJ45) 5 4 4 4 4
Total Hard Drive Capacity 500 GB 1 TB 1 TB 1 TB 2x2TB (Raid 0/1)
Hardware Form Factor Rack Mount (1U) Rack Mount (1U) Rack Mount (1U) Rack Mount (1U) Rack Mount (1U)
Dimensions
Height x Width x Length (inches) 1.73 x 17.01 x 10.63 1.77 x 17.06 x 13.86 1.77 x 17.06 x 13.86 1.77 x 17.06 x 13.86 1.70 x 17.10 x 14.30
Height x Width x Length (mm) 44 x 432 x 270 45 x 433 x 352 45 x 433 x 352 45 x 433 x 352 44 x 435 x 364
Weight 10 lbs (4.54 kg) 15.4 lbs (6.98 kg) 16 lbs (7.26 kg) 16 lbs (7.26 kg) 16.1 lbs (7.3 kg)
Capacity
VoIP trunks 50 100 100 200 300
Extensions 500 1,000 1,000 2,000 3,000
Concurrent calls 120 150 150 300 450
Auto attendants 40 60 60 100 120
Conference bridges 12 20 20 50 50
Conference attendees per bridge 12 16 16 18 30
Maximum call center agents 55 75 75 150 225
Codec support Audio: G.711 u-law/A-law, G.729a, G.722, G.726Video: H.263, H.264
* Minimum 50 GB
